TRANSAXLE (NANO AMT)
95

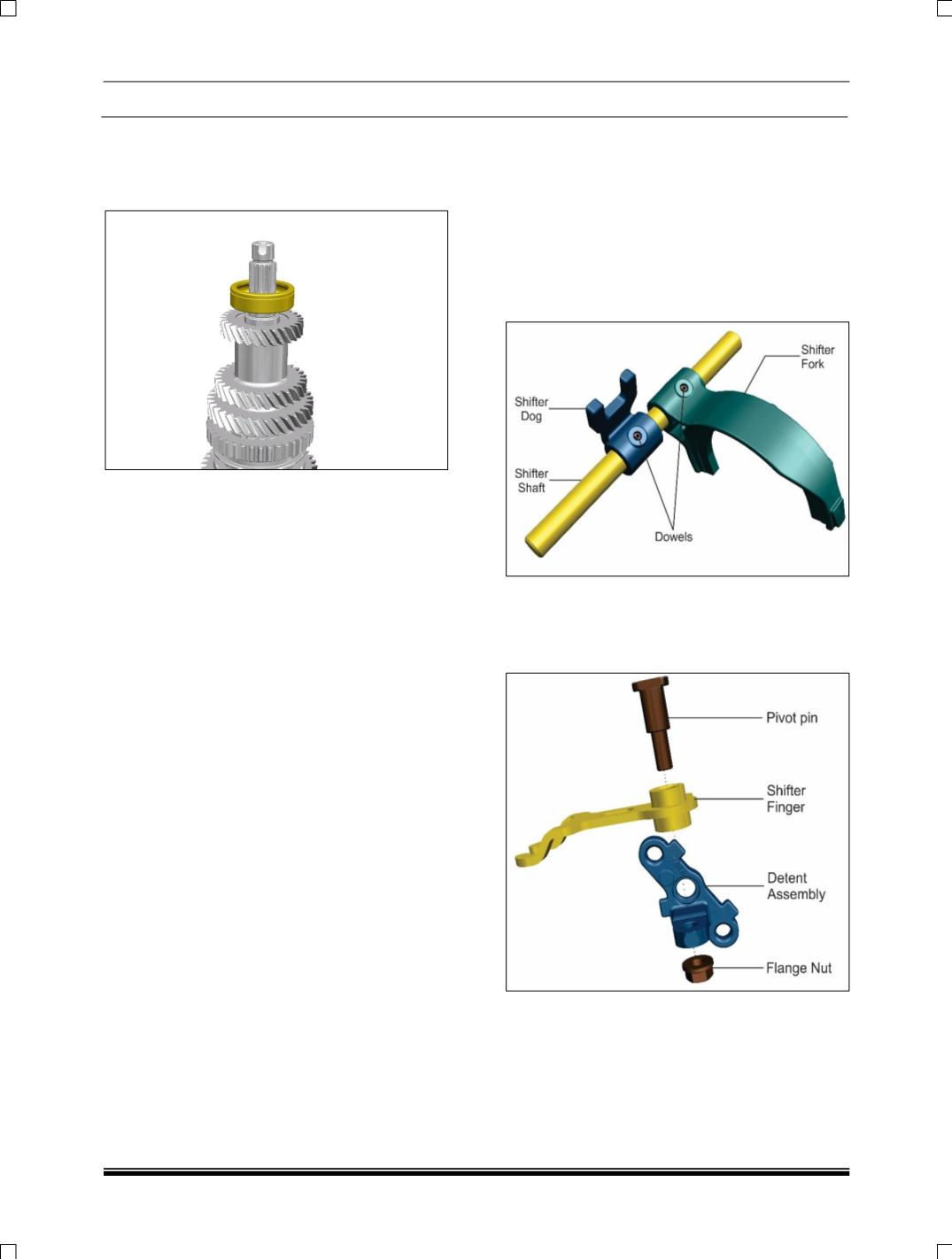

12. Fit the rear half side ball bearing, using a drift
2702 5890 35 04 (Drift for rear hub inner
bearing outer race), .Such that the groove on
the shaft can be seen.
8. SHIFTER SHAFT AND SHIFTER FORK:
A. DISMANTLING:
1. Position the first and second gear shifter shaft
assembly in a bench vice and remove the Dowel
pins and separate the shifter fork and shifter dog
from the assembly.
2. Similarly, dismantle the third and fourth gear
shifter shaft assembly and the reverse shifter
shaft assembly.
3. Dismantle the reverse gear shifter bracket by
unscrewing thePivot, and flange nut.
4. Remove the Reverse idler shifter finger and
remove the detent assembly.
