TRANSAXLE (NANO AMT)
87

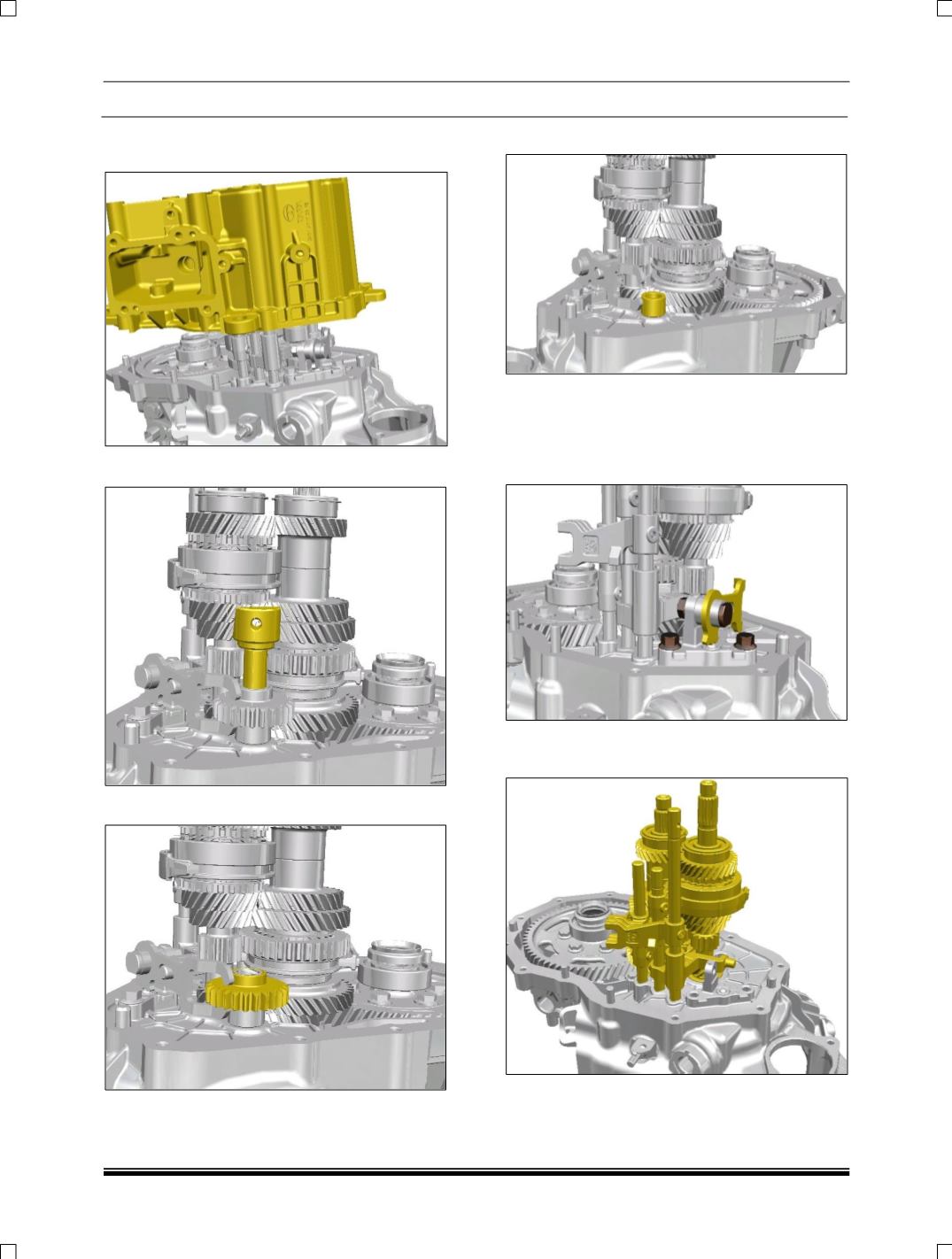

20. Separate the rear half housing from the front half
by lifting the rear half.
21. Remove the Reverse Idler Shaft.
22. Pull out the Reverse Idler gear.
23. Remove the Reverse Idler Spacer.
24. Remove the reverse idler bracket assembly
by loosening the pinion and unscrewing the two
M8 bolts. For further dismantling of the bracket
refer ‘SHIFTER SHAFT AND SHIFTER
FORK ASSEMBLY’ OVERHAUL.
25. Lift the Input and lay shaft assembly along
with the three Shifter Shafts.
