HVAC SYSTEM-AC COMPRESSOR
81

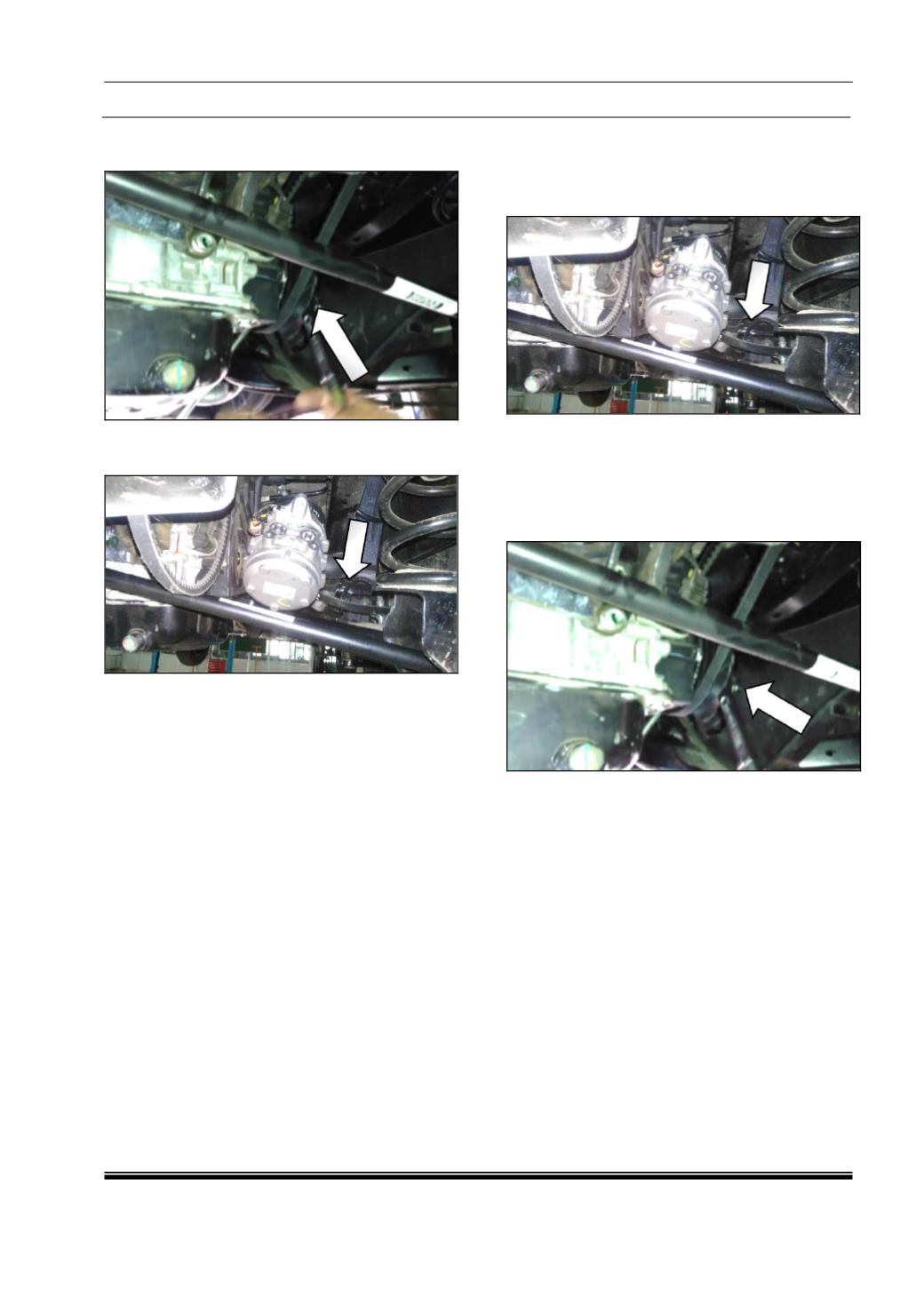

12. Remove combination pulley bolt and pull out
pulley.
13. Pull out the AC compressor carefully without
damaging the coolant hoses.
Installation:
1. Place the AC compressor carefully on
mounting without damaging the coolant
hoses.
CAUTIONS:
Ensure lock tight to be provided for combination
pulley bolts.
2. Tighten combination pulley bolt as per
specified torque.
