HVAC

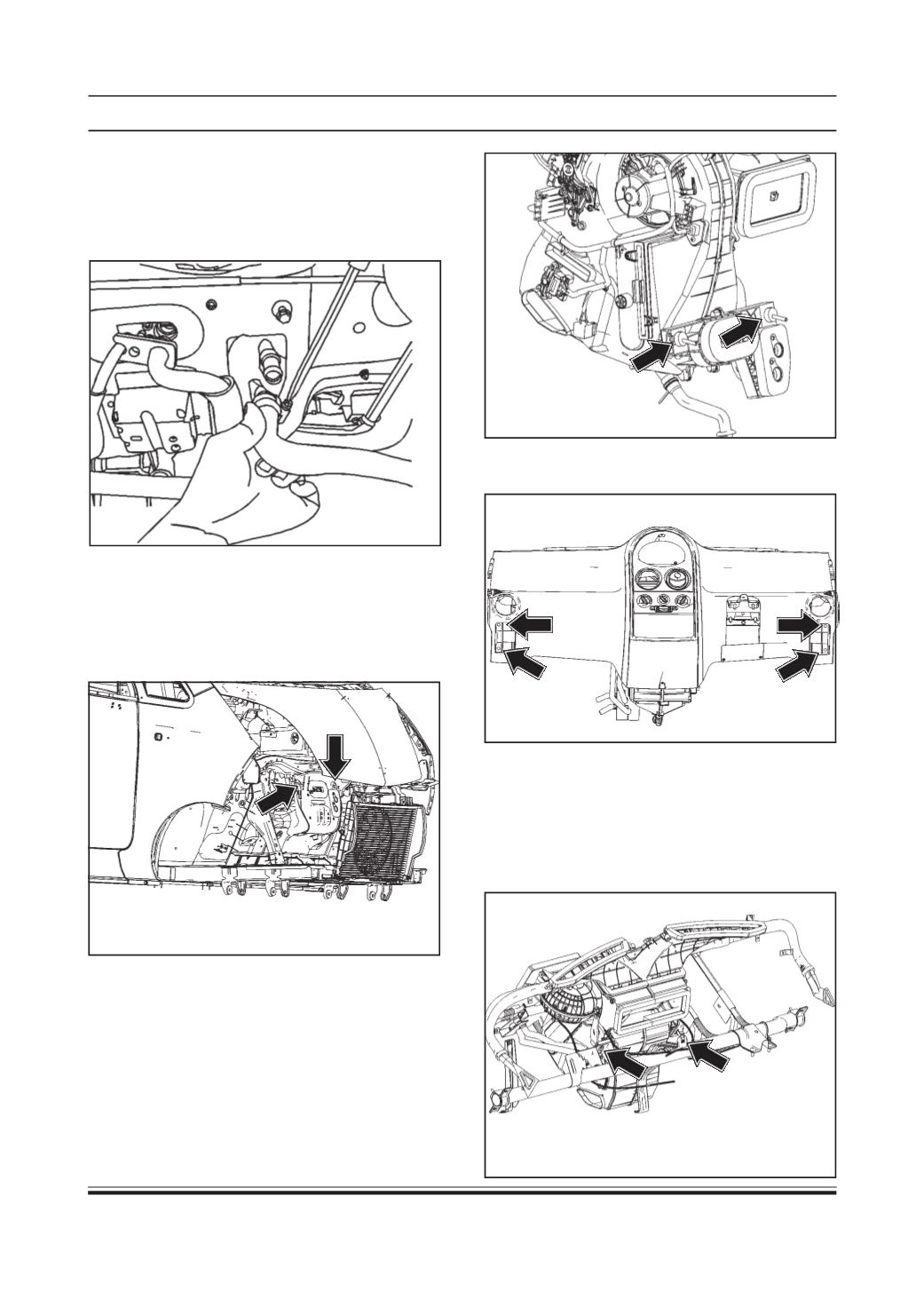

15.Remove four mounting bolts of cross beam
member. (Two on each side)
16.Disconnect all electrical connectors of wiring
harness and take out HVAC unit along with
dashboard.
17. Remove two bolts securing HVAC unit to the
dashboard and separate HVAC unit from
dashboard.
NOTE:
As soon as the refrigerant lines disconnected, cap
the opened fittings so that moisture and dust do not
enter into the system.
13.Disconnect heater lines.
NOTE:
As soon as the heater lines disconnected, cap the
opened fittings so that moisture and dust do not enter
into the system.
14.Remove two mounting nuts (located inside hood
area) of HVAC unit.
