HVAC SYSTEM-AC COMPRESSOR
77
5.0

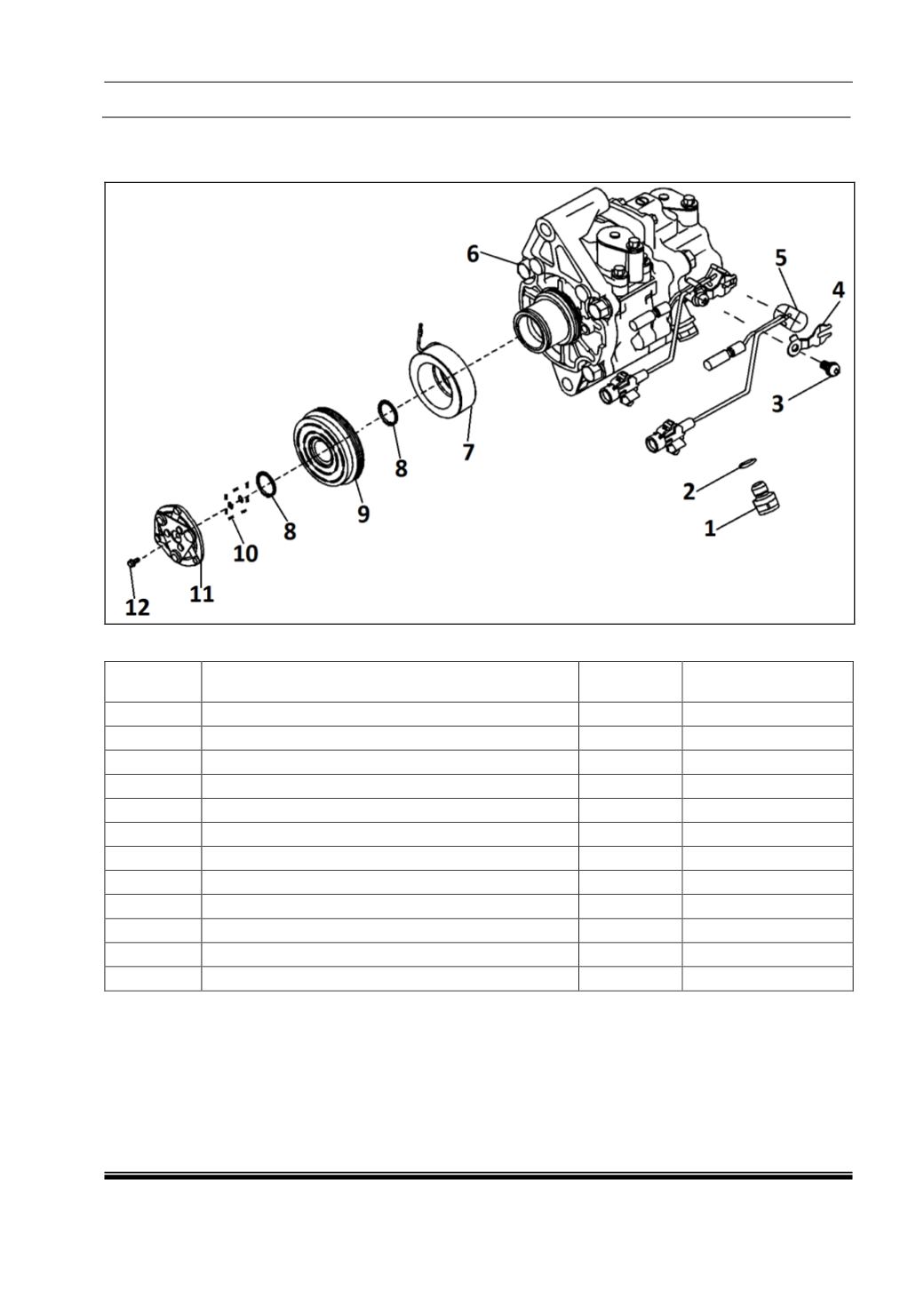

EXPLODED VIEW AND PART LIST:-
A. Exploded View:
B Part List:
NO.
Description
Quantity
Tightening Torques
in Nm
1
RELIEF VALVE
1
2
O-RING
1
3
SCREW
1
1.9 ± 0.3
4
CLAMP THERMAL
1
5
THERMAL PROTECTOR
1
6
COMPRESSOR
1
7
THERMAL COIL
1
8
CIRCLIP
2
9
CLUTCH PULLEY
1
10
SHIM
2
11
ARMATURE
1
12
ARMATURE BOLT
1
14.7 ± 1
