5. Remove KOMO plug bottom assy. from condenser
by tightening the tool in tapped hole of Bottom
plug and then pull outside.
6. Remove Cartridge assembly from condenser by
placing hook of the tool into the hole provided and
then pull outside.
CONDENSER CARTRIDGE / AIR
CARTRIDGE / I.R.D. BOTTLE
Removal
1. Remove condenser assembly from vehicle. (Refer
Condenser assembly removal procedure)

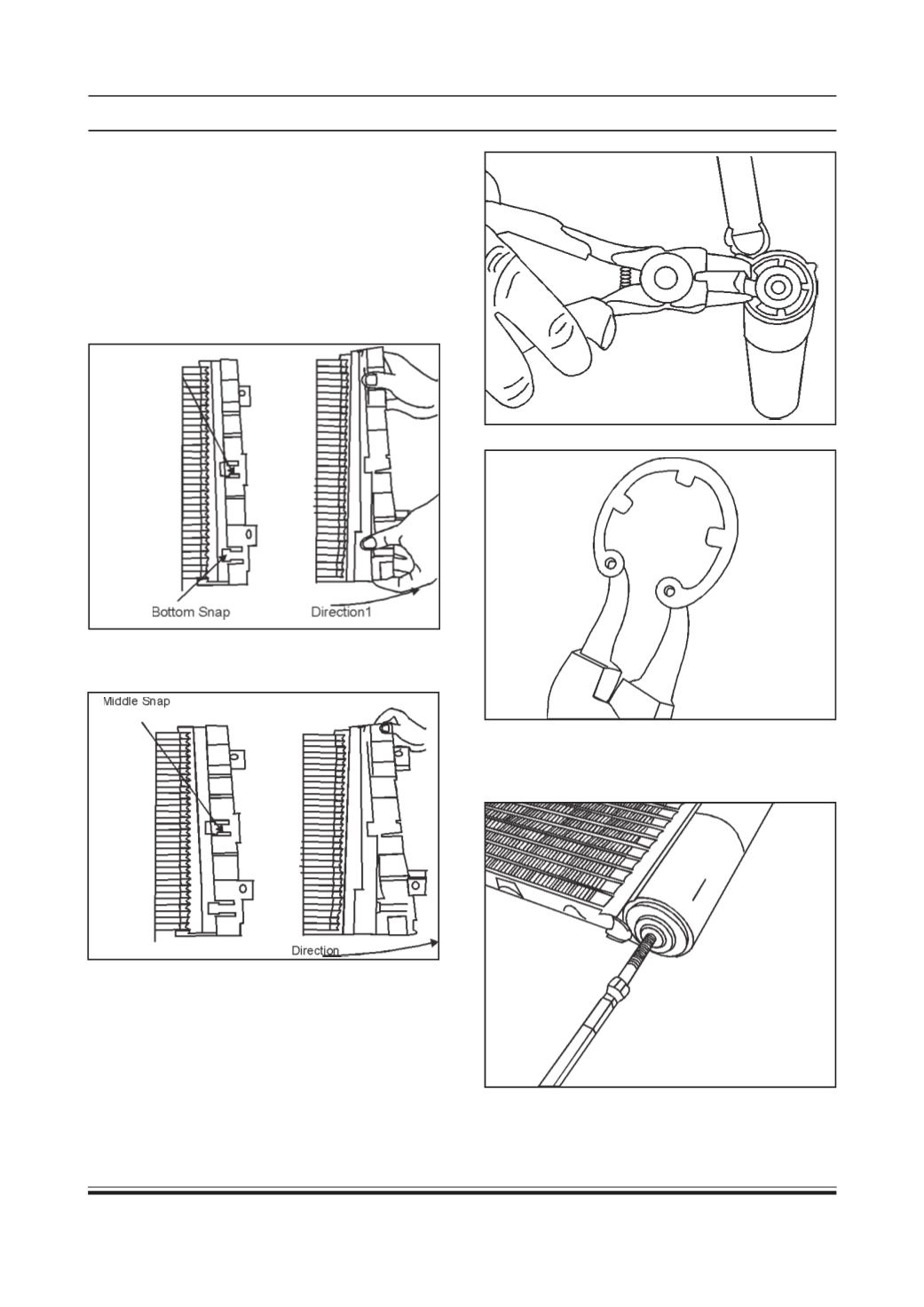

2. Remove bottom snap from projection provided on
KOMO Profile and push frame in arrow direction 1
by hand.
3. Push middle snap in arrow direction 2 to remove
plastic frame from condenser.
4. Remove retaining ring from bottom side of
condenser by inserting the plier teeth in holes and
press inside to remove from groove where it is
placed.
