HVAC
889
HVAC
Inspection
1. Inspect condenser core fins for blockage or dam-
age. Clogged condenser fins should be washed
with water and should be dried with compressed
water.
Installation
1. Mount condenser assembly on locating lugs on
body and tighten two nuts.
2. Connect Suction and Discharge lines.
3. Recharge the system using RRU. (Refer
Refrigerant Recovery, Recycling and Recharging
procedure)
4. Perform a leak test. (Refer Leak Test procedure)
5. Refit Front Bumper. (Refer Front Bumper installa-
tion procedure)

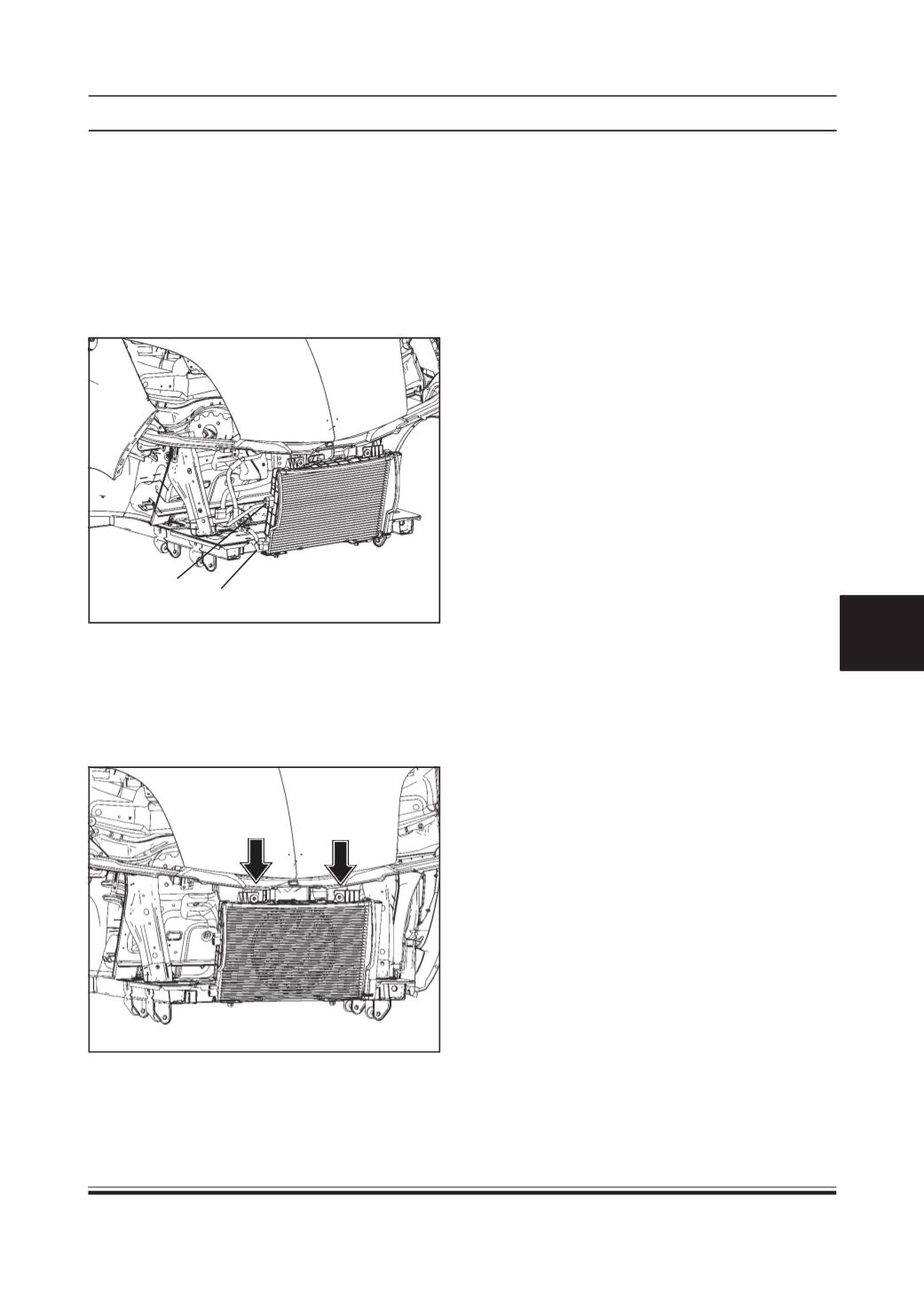

Removal of condenser assembly
1. Recover the refrigerant using Refrigerant Recovery
Unit (RRU) (Refer Refrigerant Recovery, Recycling
and Recharging procedure)
2. Remove Front Bumper. (Refer Front Bumper
removal procedure/Body group)
3. Disconnect suction (a) and discharge (b) lines
from condenser assembly.
NOTE:
As soon as the refrigerant lines disconnected, cap
the opened fittings so that moisture and dust do
not enter into the system
4. Remove mounting nuts and take out condenser
assembly.
a b
