Fit the timing belt in proper sequence.
•

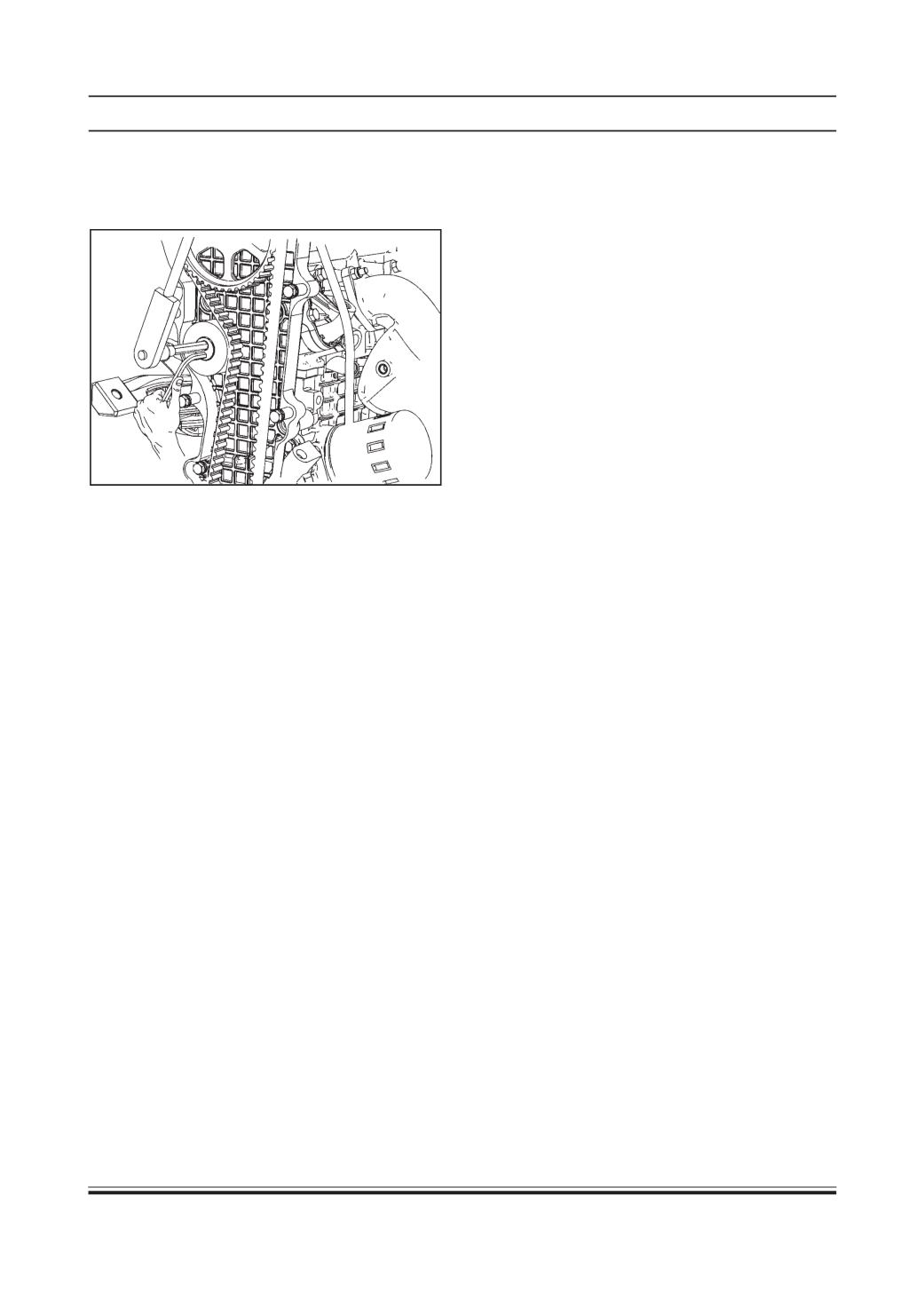

Tension the timing belt by rotating the tensioner
using allen key.
•
Tighten the tensioner mounting bolt to the specified
torque.
•
Tighten the cam shaft gear bolt to the specified
torque.
•
Take out camshaft lock pin & flywheel lock pin.
•
Fit the bottom timing cover.
•
Tighten the dip stick tube mounting bolt on cylinder
head.
•
Clamp harness clips on timing cover.
•
Fit the crankshaft pulley on crank shaft & tighten
the central mounting bolt to specified torque.
•
Fit the front timing cover.
•
Fit the alternator belt. (ReferAlternator belt refitment
procedure)
•
Fit the cylinder head cover.
•
Ensure all electrical connectors are properly
connected.
•
Now fill the coolant and lubricating oil.
•
Run the engine for 15 min. to check oil leakage /
coolant leakage.
