NANO

774

BODY

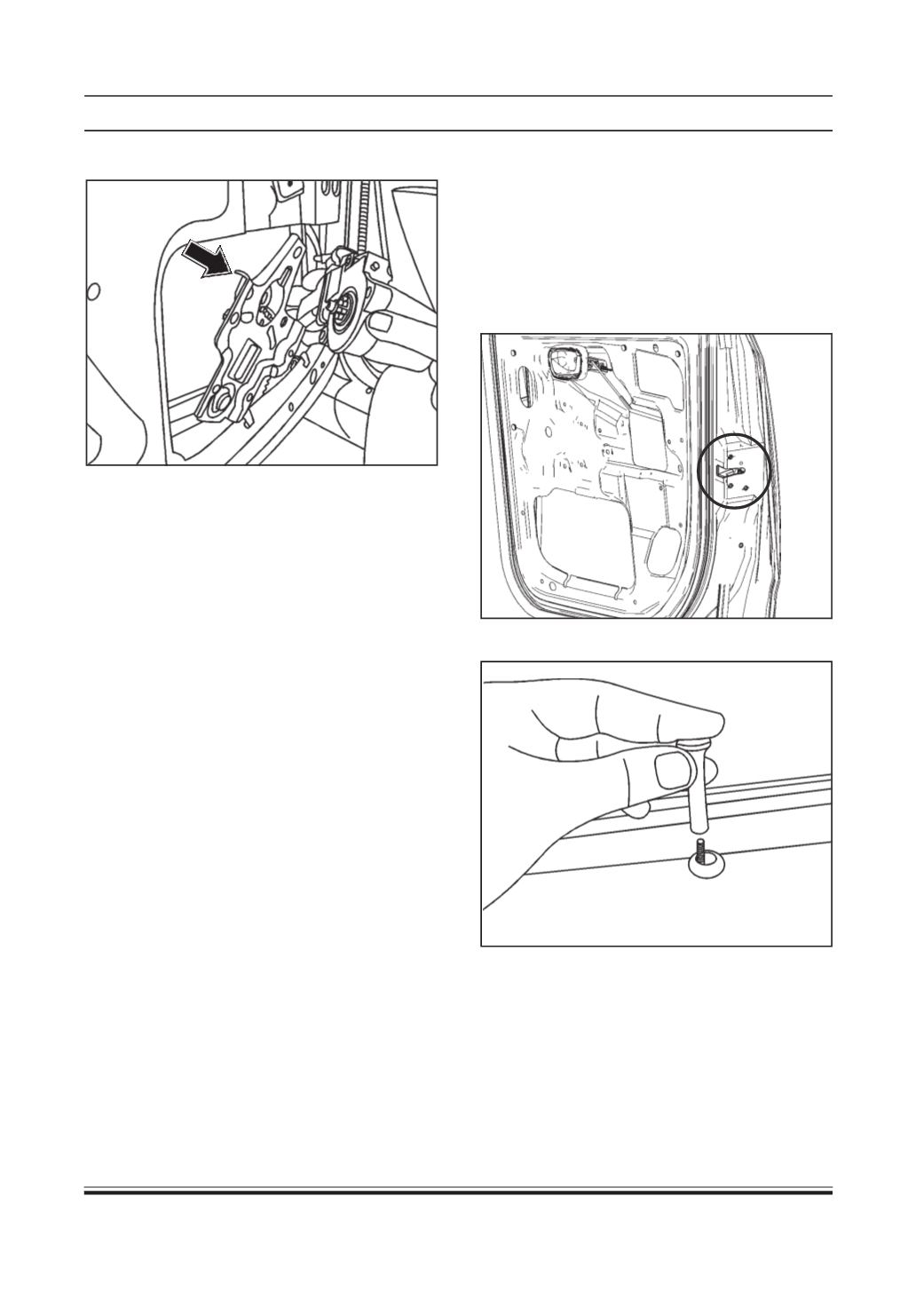

4. Remove pop up knob by rotating the knob.

FRONT DOOR LATCH ASSEMBLY (DRIVER

SIDE)

Removal

1. Lift the door window glass in upper most position.

2. Remove front door pad (Refer front door pad removal

procedure)

3. Remove three screws securing latch to the body.

Installation

1. Apply grease to sliding parts.

2. For power windows

(a) Connect the electrical connector and tighten

three mounting bolts of window regulating

motor.

3. Align the window winding mechanism and tighten

all mounting bolts to specified torque.

TIGHTENING TORQUE FOR WINDOW WINDING

BOLTS = 1 Kg-m

4. Fit door window glass. (Refer front door window

glass installation procedure)

5. Fit door pad. (Refer front door pad installation

procedure)

6. Check window operation (power/manual)

NOTE :

Check gears of winding mechanism for wear or

damage.
