ELECTRICAL

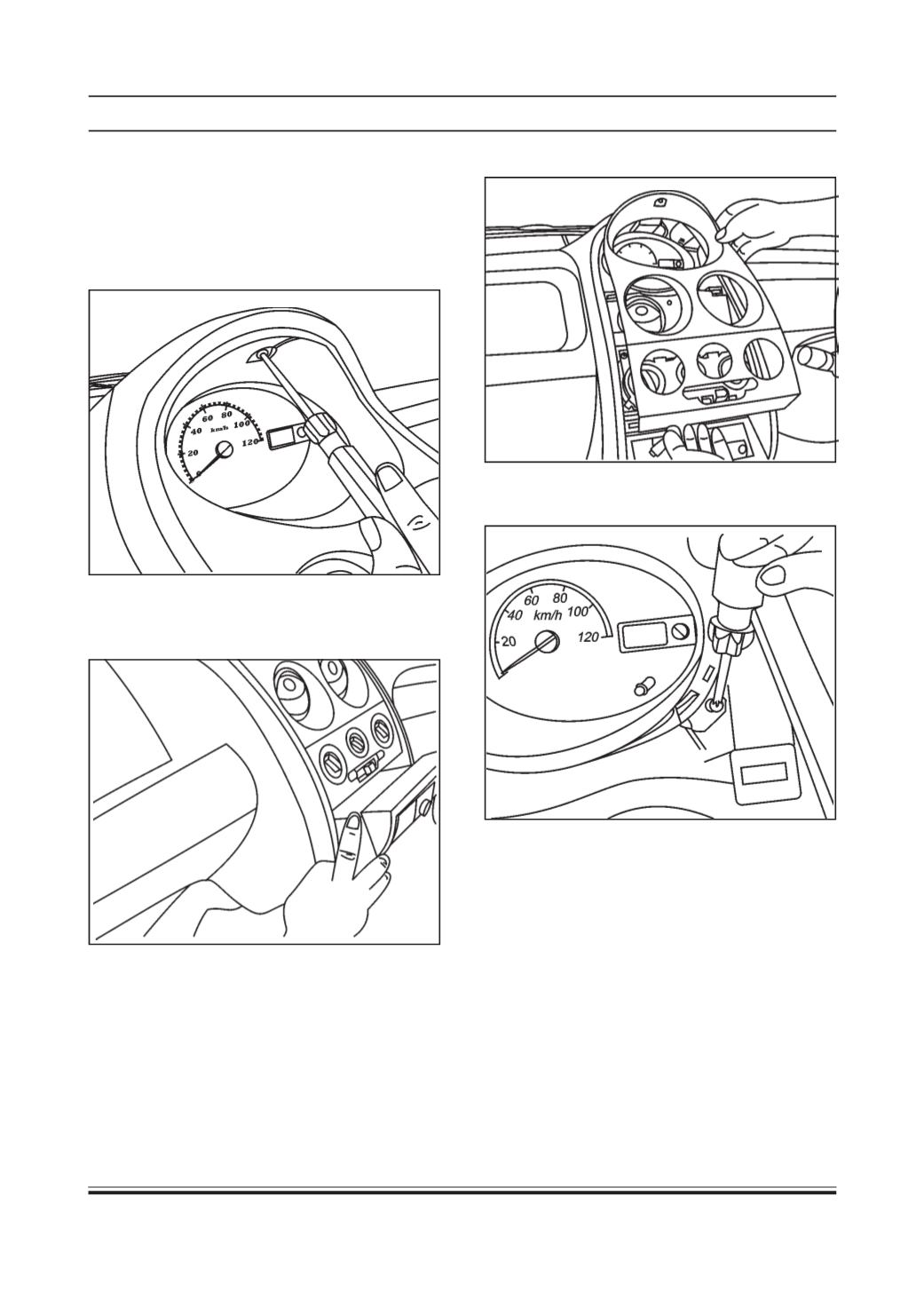

REMOVAL & REFITMENT OF INSTRUMENT

CLUSTER

REMOVAL :

1. Disconnect the negative terminal of battery.

2. Remove the screw securing centre cluster frame

to the dashboard.

3. Push the audio system from backside.

Disconnect the electrical connector and take out

audio system.

3. Pry out the centre cluster frame.

4. Remove two screws securing instrument cluster

to the dashboard.

5. Disconnect the electrical connector and take out

instrument cluster.

REFITMENT

1. Connect the electrical connector. Mount the

instrument cluster and fit both screws.

NOTE: Care should be taken while fitting the screws

as chances of falling the screws are high.

2. Fit the centre cluster frame.

3. Connect the electrical connector of audio system

and carefully push (inside) the audio system.
