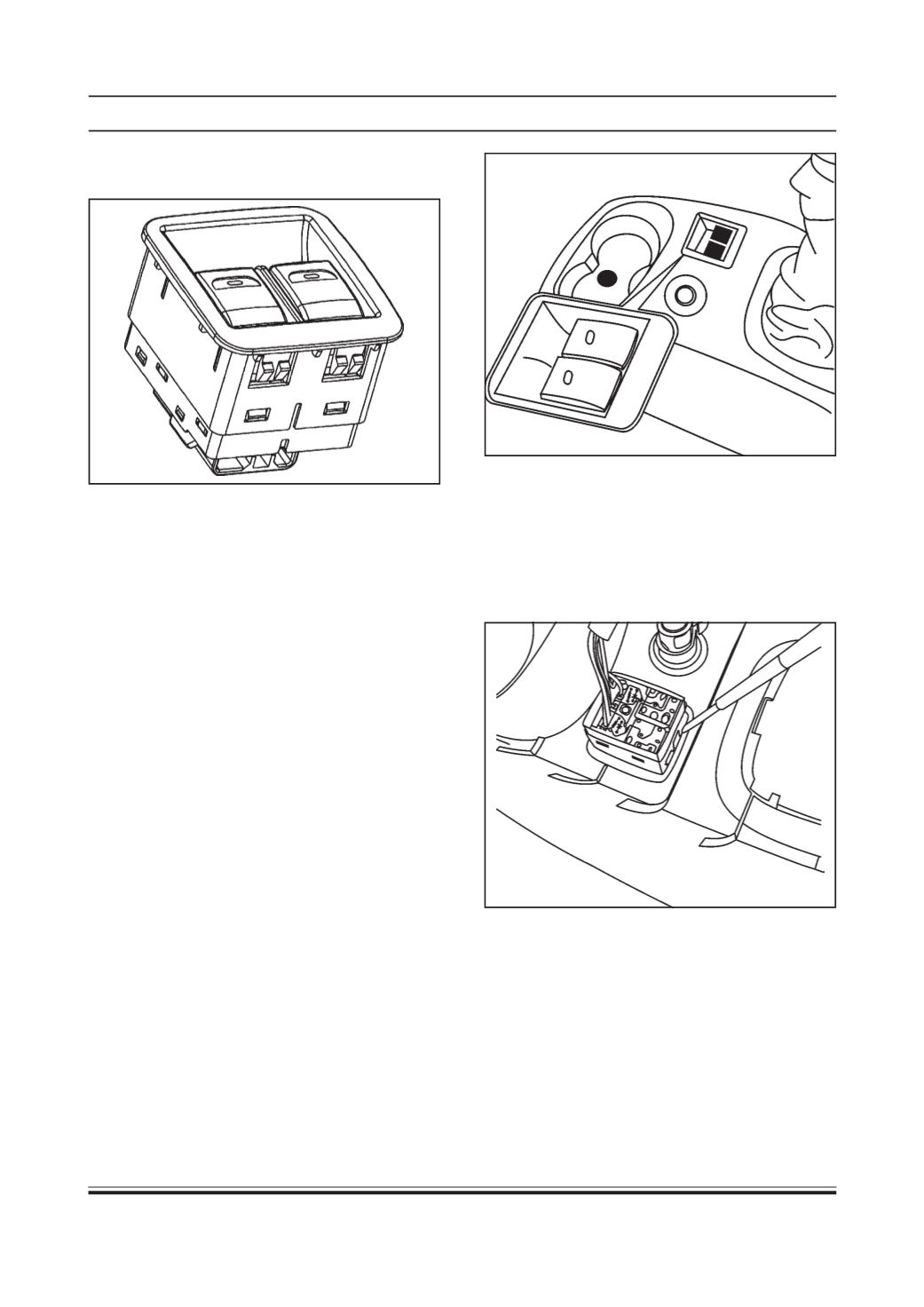

8.15 POWER WINDOW SYSTEM

(only for driver & co-driver window)

FUNCTION:

An open switch that’s used to prevent voltage from

being applied to the power window electric motor until

the switch button is depressed. This action trips the

switch, closes the contacts and power is applied to

raise or lower the windows glass.

The switch will function when ignition key is turned to

‘ON’ position. For taking window glass ‘UP’, press

and hold the switch towards position marked, and for

down, press towards position marked.

NOTE:

1. Do not press switch further when window glass is

at its extreme position.

2. Do not operate window glass frequently, otherwise

Window winding motor may get over heated and

stop working till it cools down.

LOCATION:

The windowwinding switches are provided on the floor

centre console. Driver & Passenger co-driver can

individual Operate the switches.

REMOVAL:

1. Remove the floor console. (Refer body group)

2. Disconnect the electrical connector.

3. Remove the power window switch from back of

console by pressing the lock clip of switch.

NOTE : Do not remove the switch from front of con-

sole it will damage the lock clip

NSPECTION :

For non-functioning of theWindowwindingmechanism

check following:

1. Check fuses. If blown then replace them.

2. Check all related electrical connections at

connectors.

3. If found OK, then check operating switch for proper

functioning. Replace them if required.
