NANO

ELECTRICAL

685

ELECTRICAL

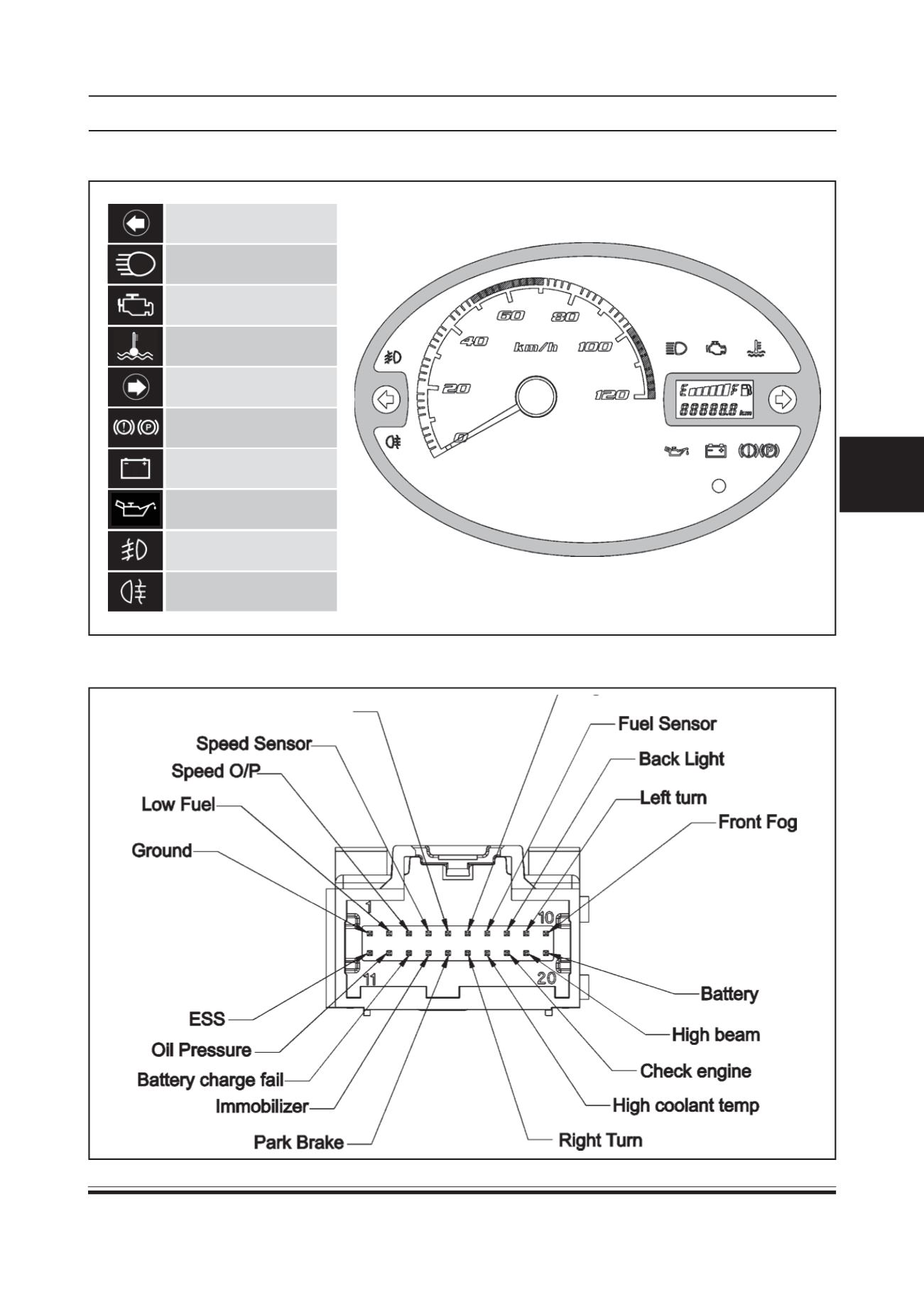

8.16 INSTRUMENT CLUSTER

CONNECTIONDETAILS:

Turn indicator (Left)

High Beam Indicator

‘MIL’ Lamp

Engine Coolant High

Temperature Indicator

Turn indicator (Right)

Brake Fluid level check and

Parking brake indicator

Battery charging indicator

Low engine oil pressure

indicator

Front Fog Lamp Indicator

Rear Fog Lamp Indicator

All Indicators shown may not be applicable to all models
