REMOVAL & REFITMENT OF TAIL LAMP

REMOVAL

1. Remove tailgate. (Refer “REMOVAL&REFITMENT

OF TAILGATE” from Body section)

2. Remove two screws securing tail light assembly

to the body.

3. Disconnect the electrical connectors and take out

tail lamp assembly.

INSPECTION

1. Check if the connectors for any loose terminals or

wires broken at the terminal ends.

2. See if any of the bulbs are blown. Replace blown

bulbs.

REFITMENT

1. Align tail lamp assembly on body. Connect all

electrical connectors

2. Tighten both mounting screws and fit tail lamp

assembly.

3. Fit tailgate.

BULB REPLACEMENT PROCEDURE FOR TAIL

LAMP

1. Remove the taillamp. Refer ”REMOVAL &

REFITMENT OF TAIL LAMP”.

2. Rotate the bulb holder in anti-clockwise direction.

3. Remove the bulb & replace with new one.

4. Lock the bulb holder in clockwise direction.

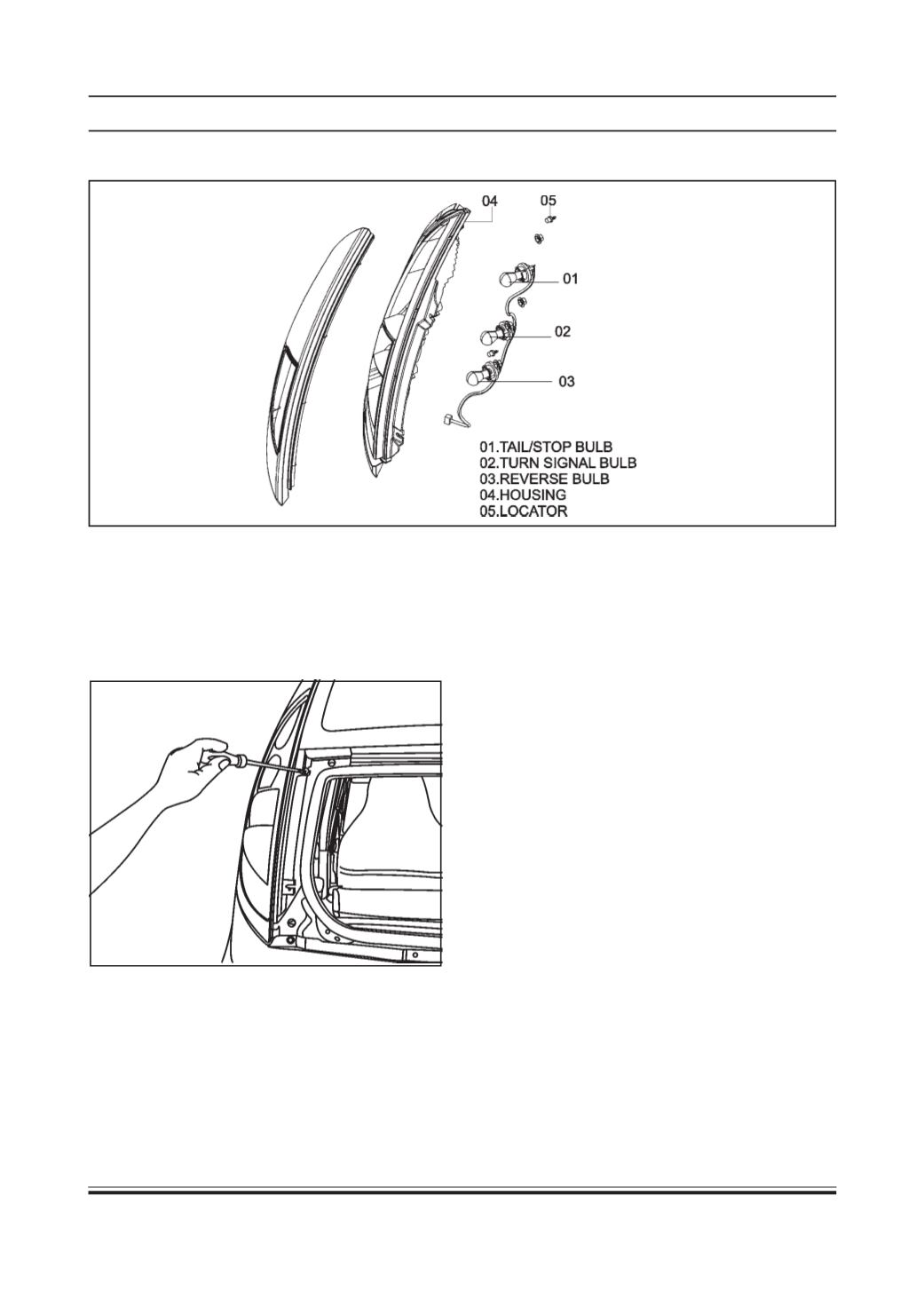

TAIL LAMP: EXPLODED VIEW
