NANO

606

ELECTRICAL

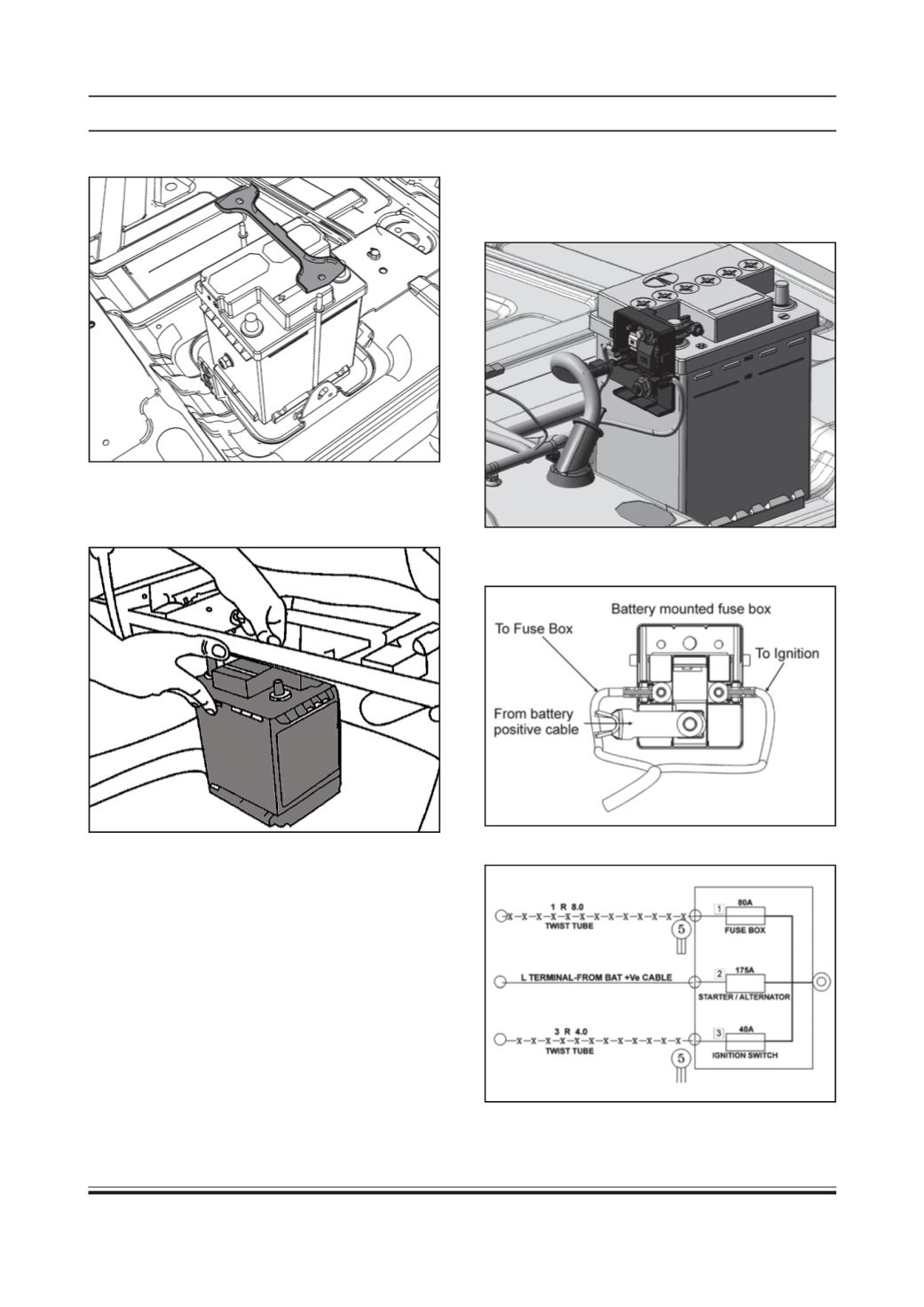

5. Take out the battery mounting clamp.

6. Slide the driver’s seat towards front side.

7. Carefully take out the battery from back side of the

driver’s seat.

Re-fitment:

1. Install battery from back side of driver seat.

2. Slide the driver seat to back side.

3. Connect the terminals.

4. Tighten the battery clamp top mounting bracket

and stud.

Battery Mounted Fuse Box

This fuse box is mounted to battery positive terminal/

battery . To access the fuses / connectors, press the

lugs provided on the cover & take out the same.

(Location of Battery Mounted fuse box)

Connection Details

Fuse details
