Note:

Pull out ONLY Connector and not the wire.

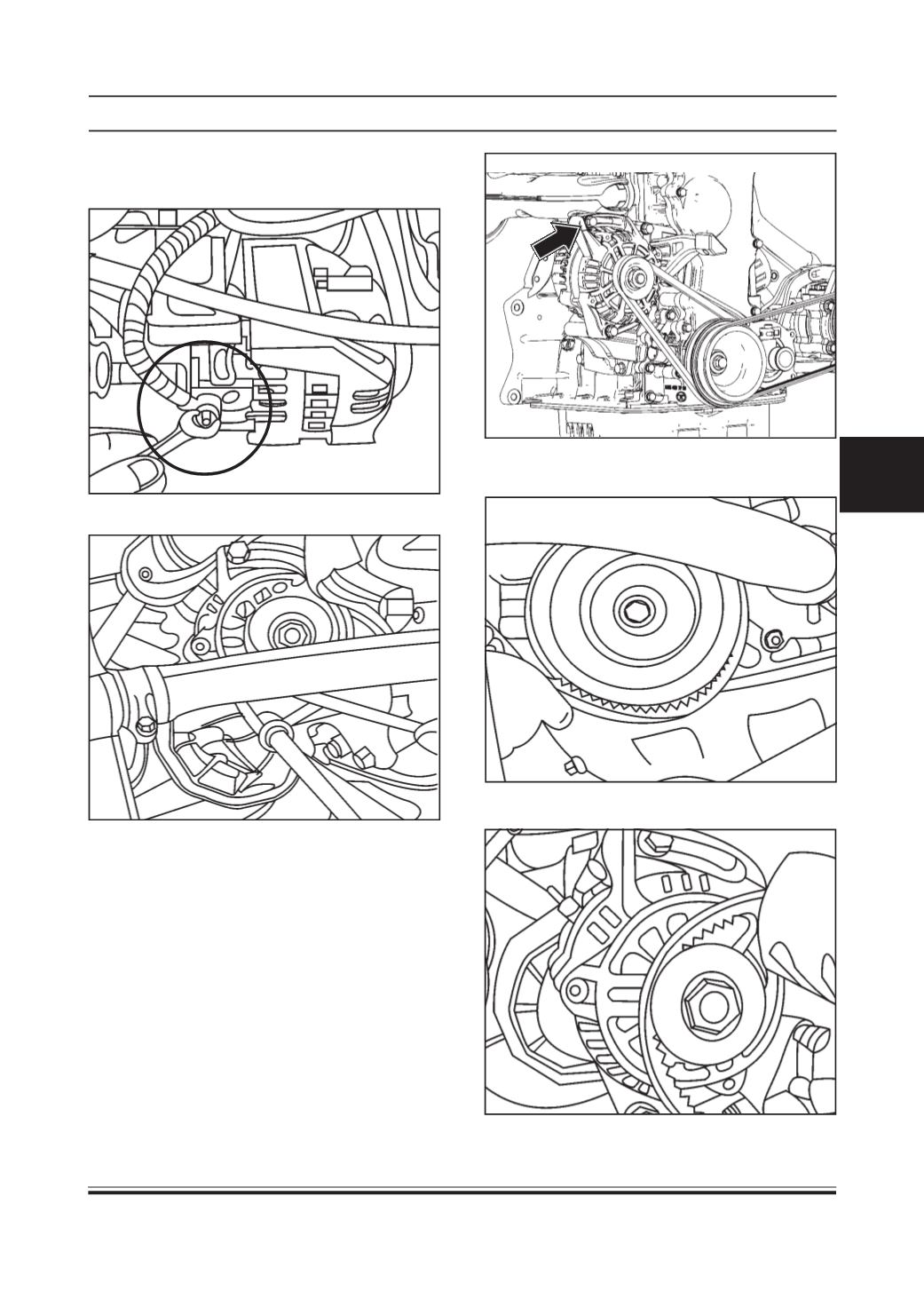

3. Remove terminal 30 (battery + ve) from the alternator.

4. Loosen lower mounting bolt of alternator.

5. For ease of service, to access upper mounting bolt

of the alternator, remove rear shelf and tail gate. For

removal & refitment of rear shelf and tail gate refer

body section.

6. Loosen upper bolt of the alternator i.e. alternator

belt-tension adjusting bolt.

7. Disconnnect the AC compressor belt and then

remove the alternator belt from the damper pulley.

8. Remove the belt from alternator pulley.

NOTE: Check the condition of belt. Replace if wear

down or any cut is found.
