DRIVETRAIN

3. Place the oil collector.

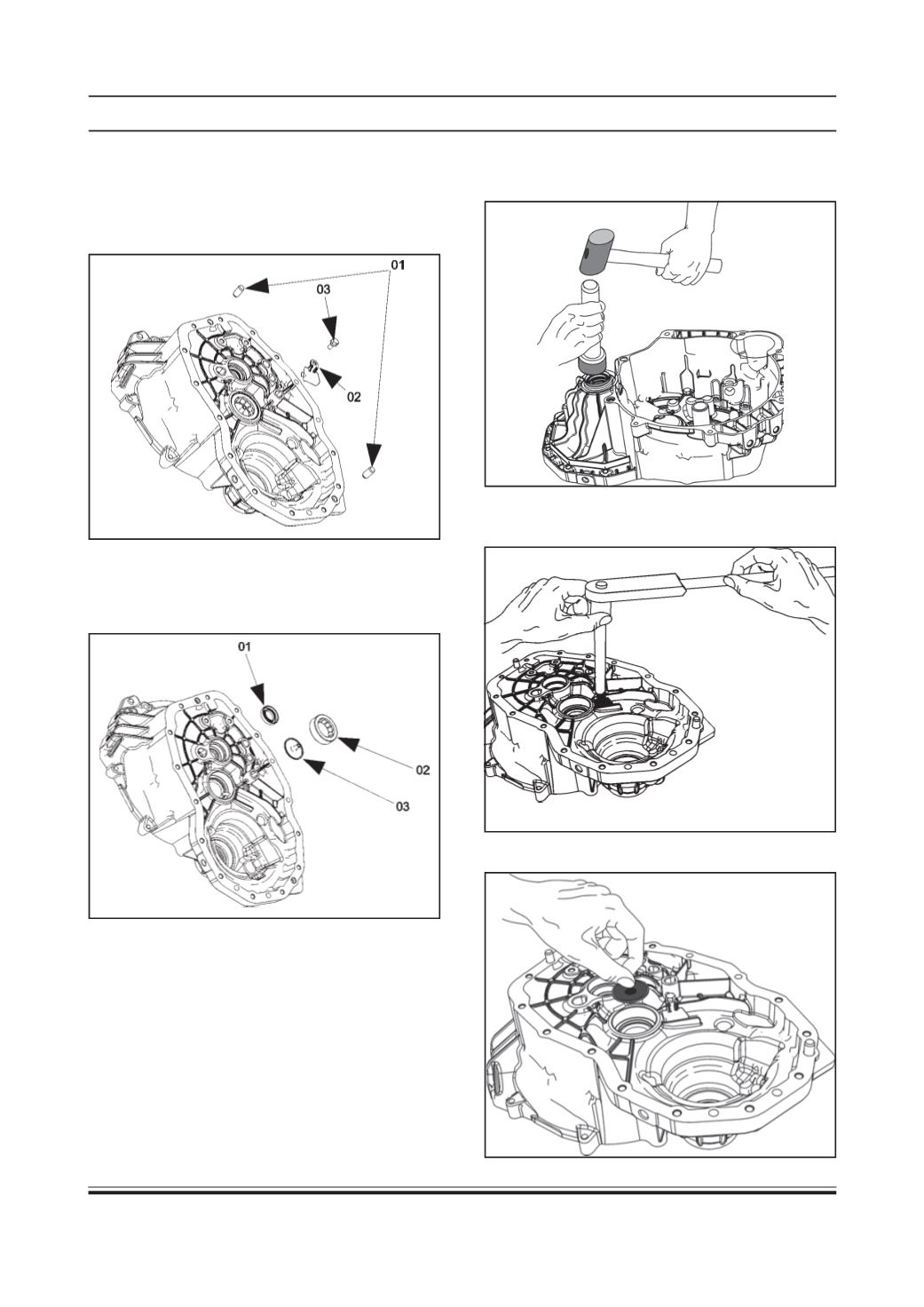

FRONT HALF HOUSING

A. DISMANTLING

B. ASSEMBLY

1. Remove the dowel pins (01) and remove the oil

collector (02) by unscrewing the bolt (03).

2. Remove the input shaft oil seal (01)

3. Remove the layshaft bearing outer race (02),.

4. Take out the oil collector (03).

1. Fit the drive shaft oil seal using a suitable drift.

2. Fit the front half oil collector and tighten the M6

hex bolt to a torque of 0.4 ~ 0.45 Kg-m.
