NANO

ENGINE 273 MPFI

199

ENGINE

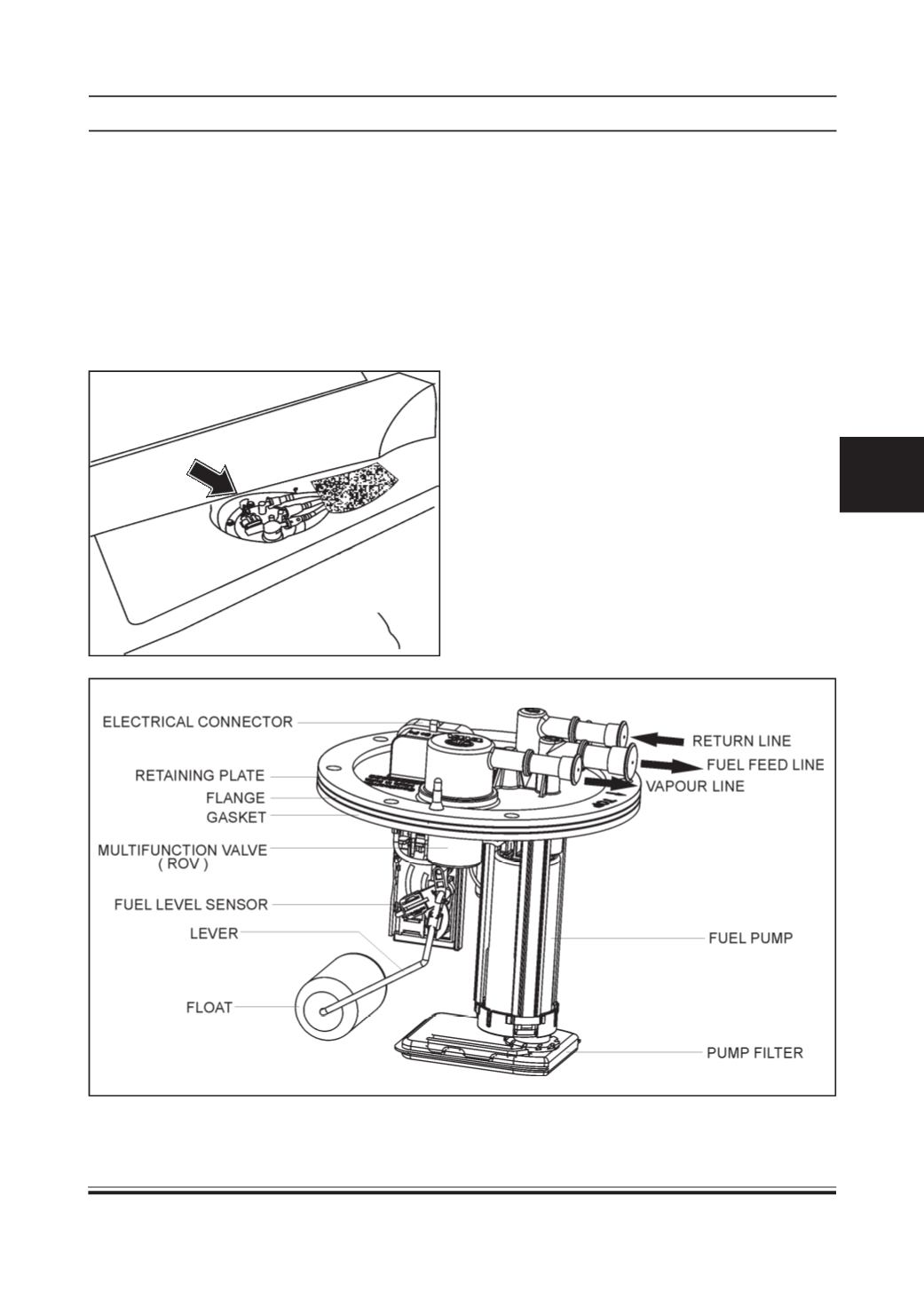

TANK UNIT (FUEL MODULE)

Location:

The fuel tank unit (Fuel Module) is mounted on fuel

tank. It can be access from cut out provided below co-

drivers seat on body floor after removing plastic cover.

Fuel Module consists of following three subassemblies.

i. Fuel Pump with in built Pressure Regulator

ii. Fuel Level Sensor Assembly

iii. Multifunction Valve (Roll Over valve)
