980 / 1575
ELECTRICAL
160

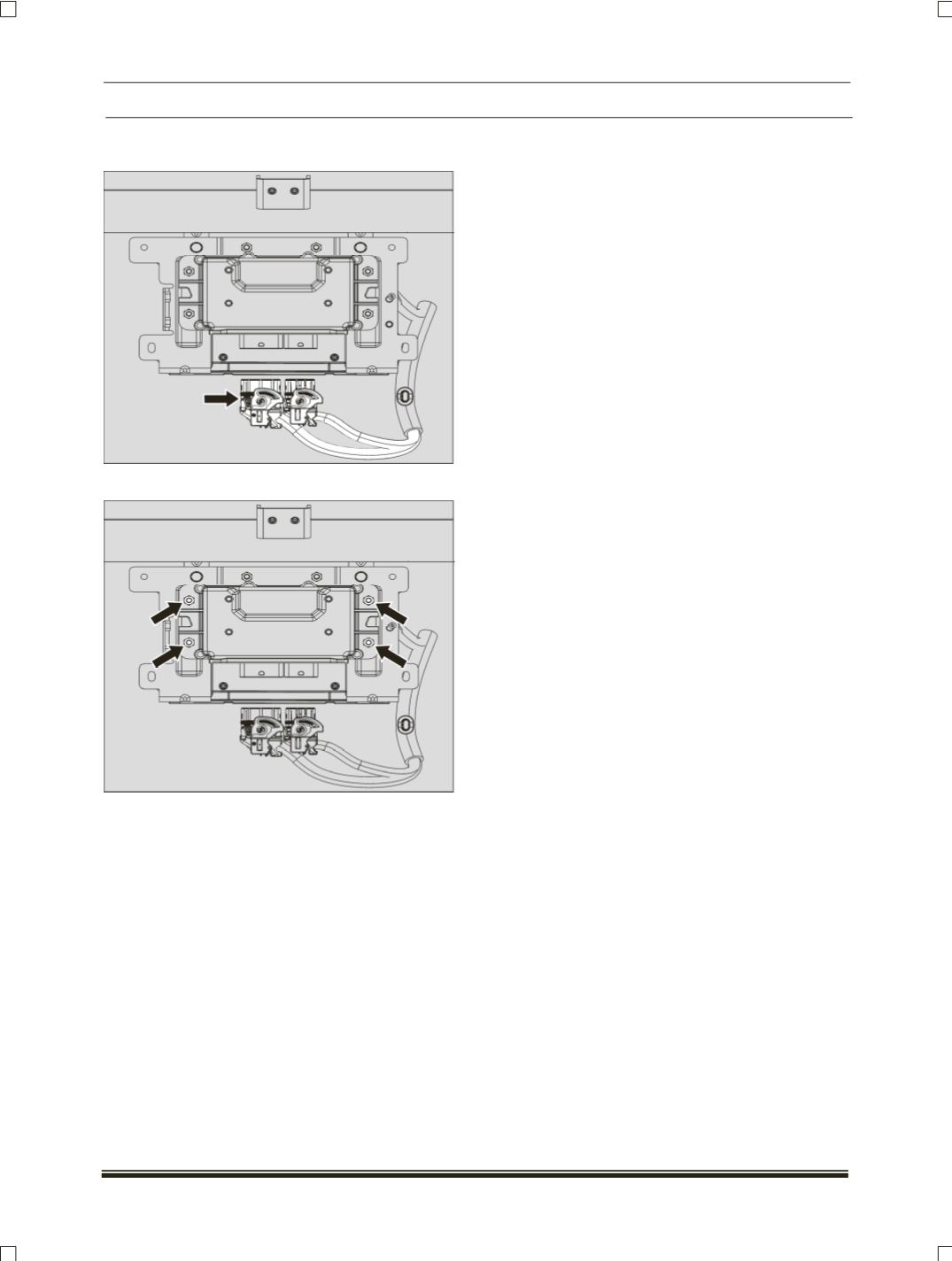

1.Remove the electrical connector (
Part of main
wiring harness
) of BCM.
2.Loosen and remove the all four nuts.
3.Take out the BCM from Vehicle.
REFITMENT:
1.Fit the BCM on mounting bracket mounted on
the assembly dash cross member using four
nuts.
2.Tighten all four nuts.
Tightening torque for nuts - 0.6 kgm.
3.Connect the electrical connector
(Part of main
wiring harness)
of BCM
.
