SAFARI STORME

ELECTRICAL

155

ELECTRICAL

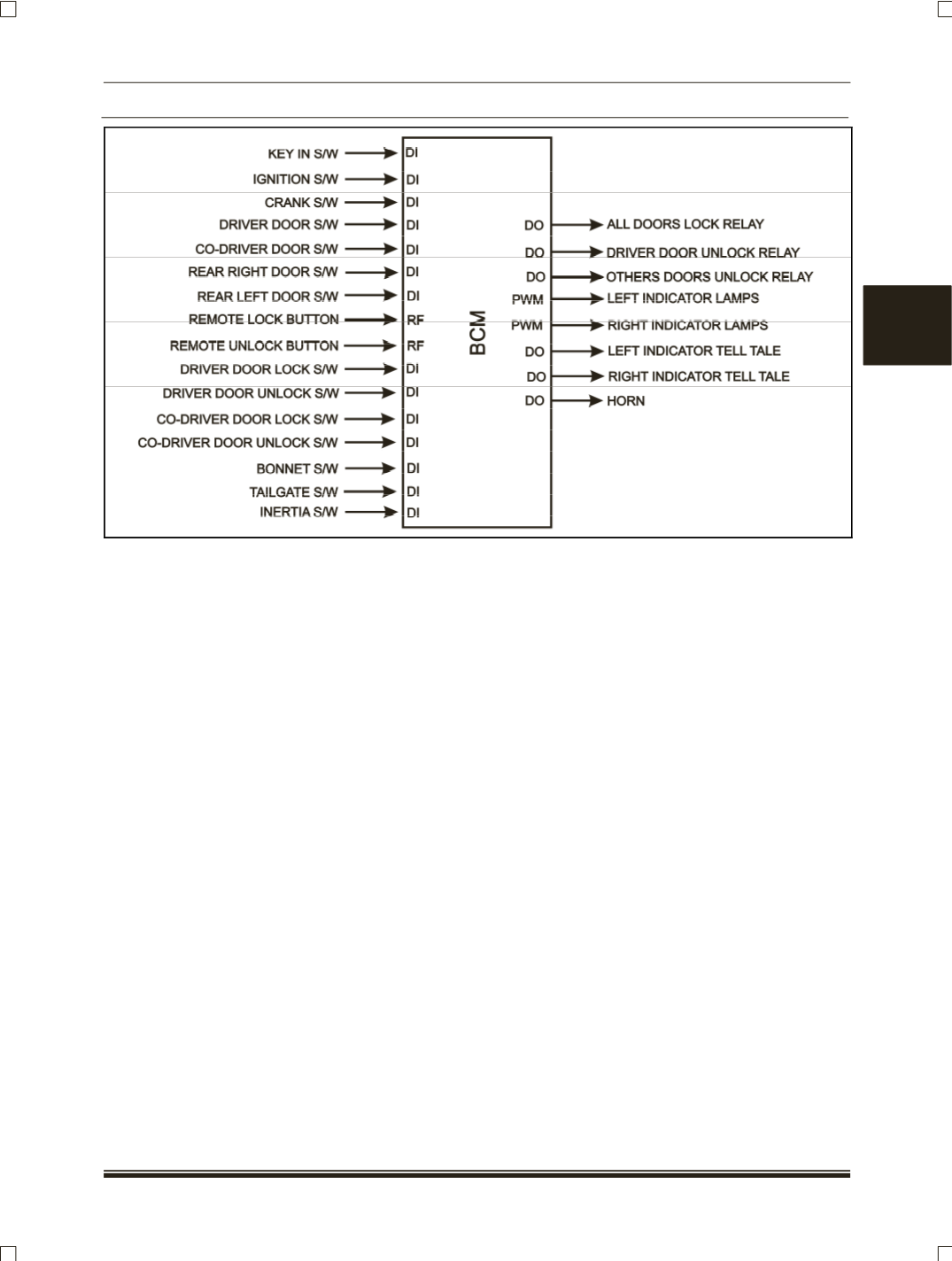

REVERSE CYCLING PRE CONDITION: KEY IS

OUT

(All doors are closed condition)

If actuator(s) is in unlock condition and

lock button is pressed on remote, then actuator get

locked and RKE state will change to lock state. On

completion of successful lock operation two

flashes (

250mSEC ON and 250mSEC OFF

) will be

given.

If lock button is pressed on remote and

actuator(s) is failed (i

.e. stucked to unlock position

or open

), mislock sound will be given. If lock button

is pressed on remote and driver door is open or

driver door switch is faulty, mislock sound will be

given and all actuators get lock and only driver

door actuator get unlock vehicle remain in unlock

state. If lock button is pressed on remote and any

door is open or any door switch is faulty (

except

driver door

), mislock sound will be given. All

actuators get lock and unlock immediately. Vehicle

remain in unlock state.

During lock operation, if unlock button on

remote is pressed, after completing lock operation

it will respond to unlock button press. After

successful lock operation, if door

(except bonnet)

is open. Remote lock signal will be ignored.

TWO STAGE UNLOCKING: Pre condition:

RKE is in lock state and unlock button on

remote is pressed.

Driver door actuator gets unlocked and

RKE state change to unlock state. After completing

driver door actuators unlock operation, if user

presses again unlock button on remote, all

actuator get unlock and RKE state will not change.

A successful unlock operation is acknowledged by

giving single long flash (

750mSEC ON and

250mSEC OFF

During unlock operation, if lock button on

remote is pressed, after completion of unlock

operation it will respond to remote lock request.

LOCATE

Vehicle is in lock state and lock button on

remote is press, 2 flashes (250mSEC ON,

250mSEC OFF) will be given without changing the

RKE state. During locate operation, if unlock

button on remote is pressed. After completing two

flashes, it will respond to unlock button press.

NOTE:

Locate mode is used to locate the vehicle in

parking area
