ELECTRICAL
157
ELECTRICAL

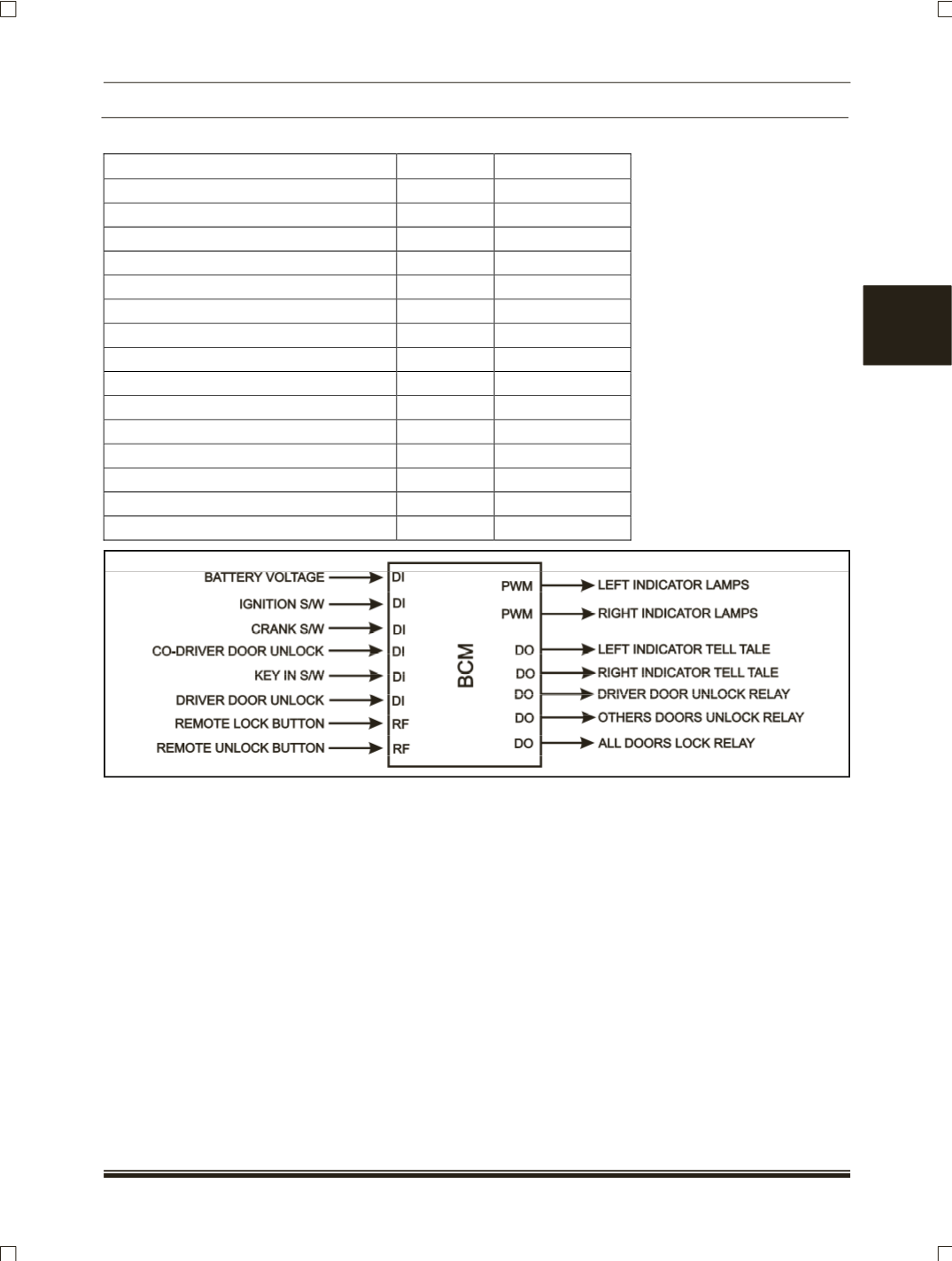

C.REMOTE LEARNING:
SIGNAL
LEVEL
TYPE
Battery Voltage
High
Input
Key-In S/W
High
Input
Ignition S/W
High
Input
Crank S/W
High
Input
Driver Door Unlock
Low
Input
Co-Driver Door Unlock
Low
Input
Remote Lock Button
RF
Input
Remote Unlock Button
RF
Input
Left Indicator Lamps
PWM
Output
Right Indicator Lamps
PWM
Output
Left 1ndication Tell Tale
High
Output
Right Indication Tell Tale
High
Output
Driver Door Unlock Relay
Low
Output
All Doors Lock Relay
Low
Output
Others Doors Unlock Relay
Low
Output
LEARNING PROCESS OF NEW REMOTE AT USER END:
1. Driver door or co-driver door should be unlock, insert key into ignition barrel. Turn ignition “OFF to ON and
ON to OFF” 4 times in 6 sec. Two flashes of left right indication lamps and tell tale O/P will be given.
NOTE:
If crank is made ON remote learning procedure will be canceled.
2. After two flashes, to learn the remote press lock and unlock button on remote simultaneously, within 10
sec. That remote will get learn with the BCM and all previously learnt remote will get unlearn. Left - right
direction indicator lamp flashes twice. At the same time, door actuators move to lock position and back to
unlock position, as a confirmation that remote is learnt.
3. To learn next remote repeat the step 2 within 10 sec.
4. Remote learning end with single long flash if, ignition is made ‘ON’ or 10 sec are over.
NOTE:
The timings mentioned in the procedures above has to be followed properly, otherwise the procedure has to
be performed again. Maximum Four remotes can be learned with a single BCM
.
