ELECTRICAL
134
1. WIPERS AND WASHERS:
A.FRONT WIPE AND WASH:
Front windscreen wipe and wash is active in vehicle power states ON. If front wiping or washing is
active and the vehicle power state changes from ON to CRANK, washing will stop immediately and wiper will
stop after parking position. If any other vehicle power state (
KEY IN, ACC and KEY OUT
) is entered, then
front wiper system and washer will stop immediately.

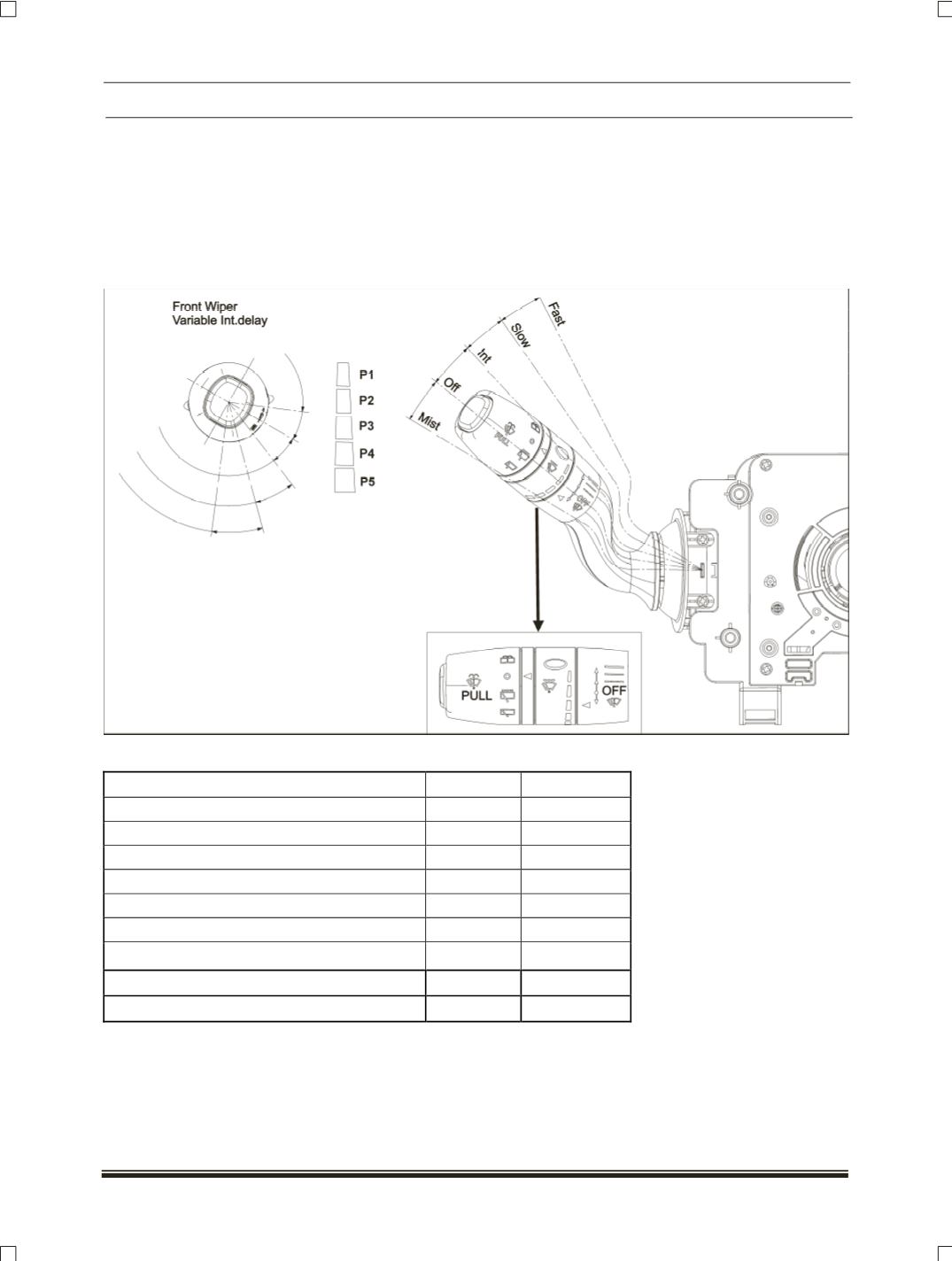

Front windscreen wipe and wash functions will be driver controlled by the Combi Switch.
INPUT/OUTPUT DIAGRAM:
SIGNAL
LEVEL
TYPE
Ignition Switch
High
Input
Crank S/W
High
Input
Front Wash S/W
Low
Input
Front Wiper Parking S/W
Low
Input
Front Wiper Intermittent Setting
Analog
Input
Front Wiper Intermittent ON
Low
Input
Front Wiper Motor Intermittent Relay
Low
Output
Front Wash Motor
High
Output
Front wiper ON/OFF Status
Low
Input
