STEERING
26

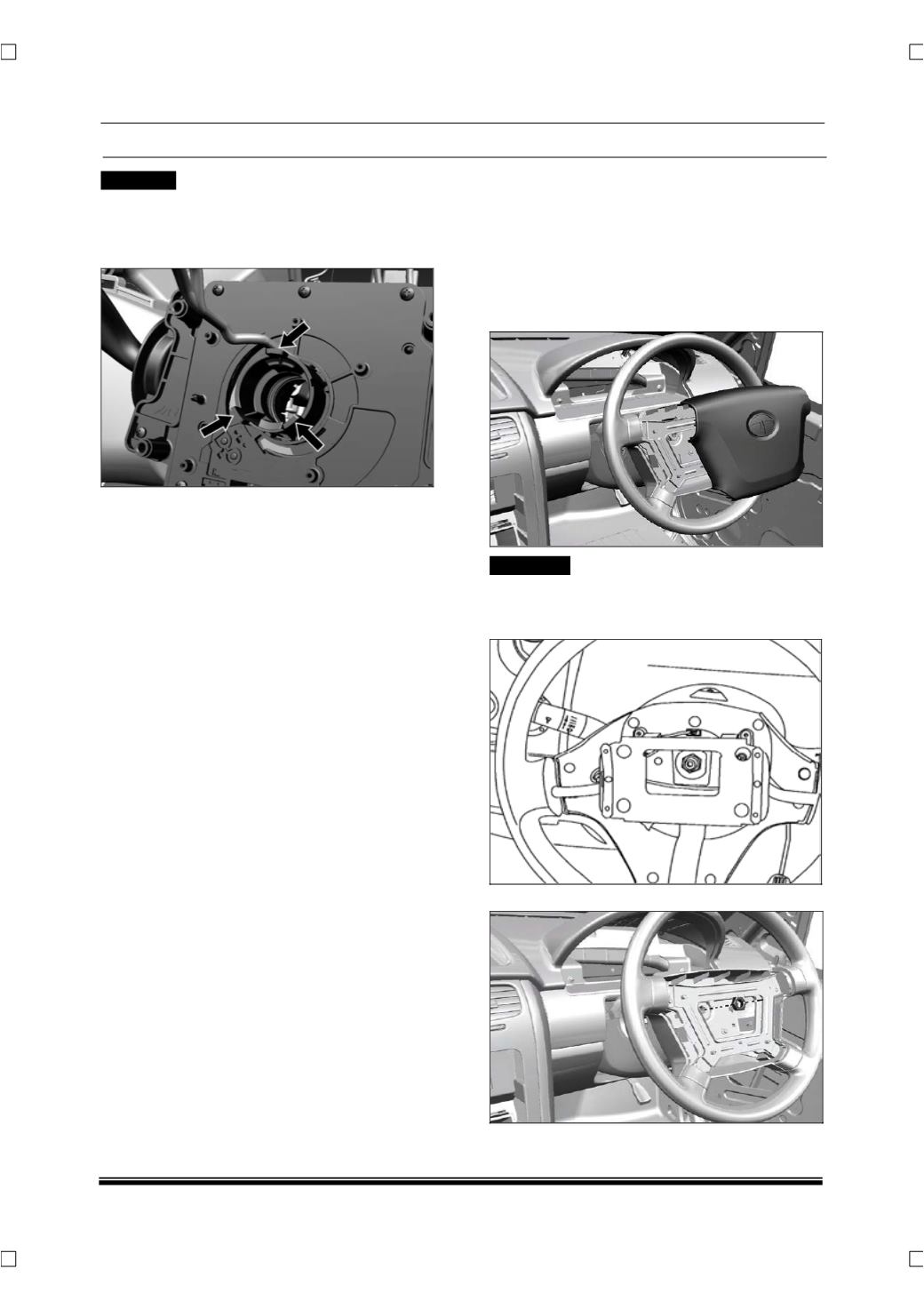

CAUTION
Care should be taken such that self-
cancellation lugs do not get damaged (self-
cancellation lugs are shown in below figure with ar-
rows).
INSPECTION:
Check for any damage to self-cancellation
lugs, if found, replace complete steering wheel
INSTALLATION:
1. Align the marks made on the steering wheel
and the shaft. Install steering wheel on steering
shaft.
2. Tighten the steering wheel nut to the speci-
fied torque.
3. Tightening torque (Steering wheel nut) = 4Kgm
4. Fit horn pad (Press fit type).
5. Connect battery.
1.2.3 ON VEHICLE REPAIRS
1.2.3.1 STEERING WHEEL REMOVAL
(Without DAB)
8. Park the car with front wheel in straight ahead
position. Apply parking brake and place wheel
chokes at rear wheels.
9. Disconnect battery.
10. Pull out the horn pad.
WARNING
Before removing steering wheel make
alignment marks on the steering wheel and the shaft
for guiding during reinstallation
.
4. Remove the steering wheel nut.
