SAFARI STORME

ENGINE

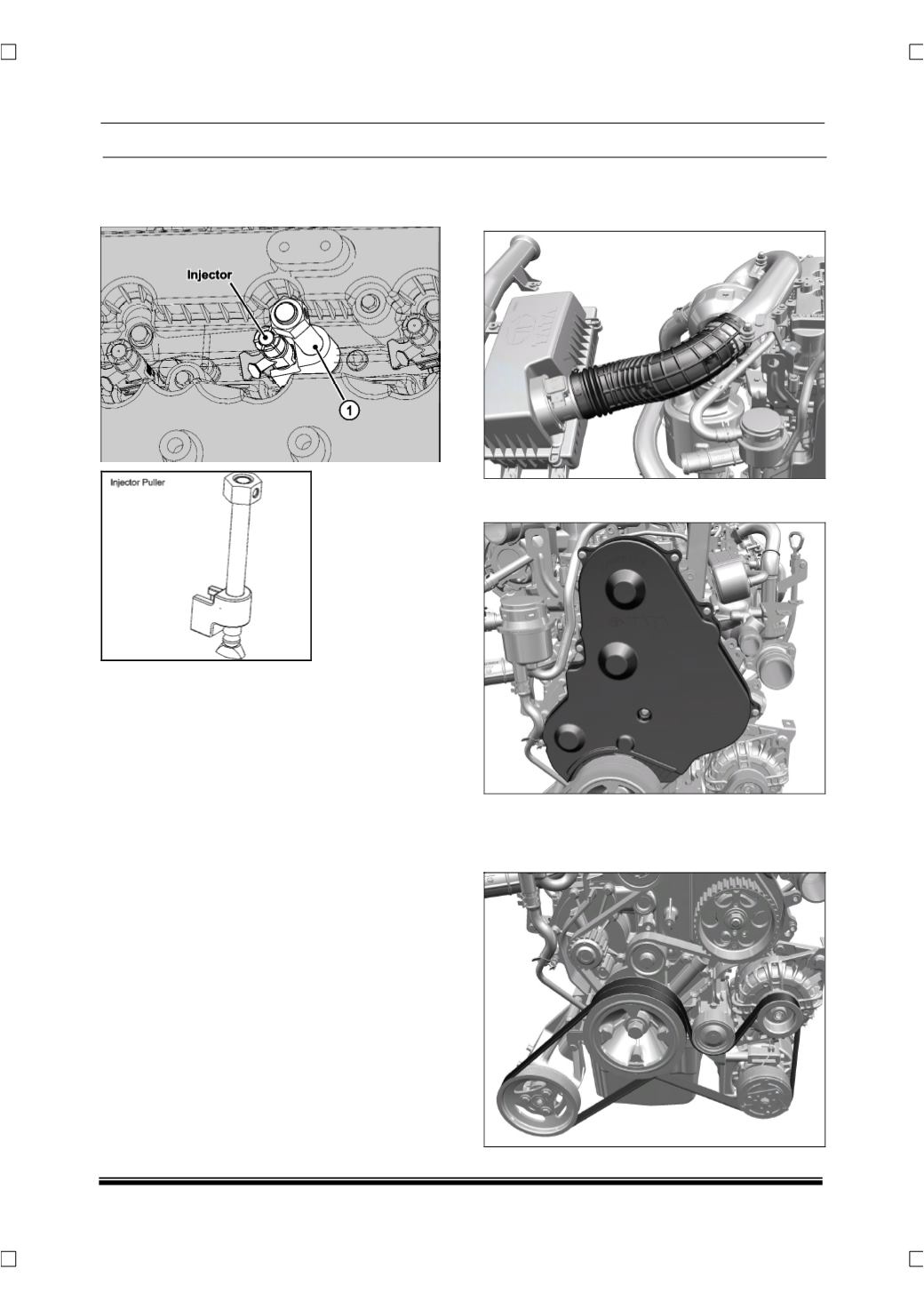

8. Extract the injector using injector removal tool

(1)

(Part no. 2868 5890 07 04).

Remove the injector

with the sealing washer.

NOTE

Injector should be tagged as soon as it is removed to

avoid chances of it being interchanged. Since the

I3C code of each injector is calibrated to the EMS,

whenever an injector is replaced it I3C codes of the

respective injectors should be fed in the EMS ECU

using diagnostic tool.

FITMENT

•

Follow the reverse order of removal for fitment.

•

Do not reuse the bolt and washer removed in

step 6, use new ones.

•

Replace the injector sealing washer while refit-

ting the injector.

•

Vacuum clean the injectors.

F. TIMING BELT REMOVAL

1. Remove air filter outlet hose for easy accessibil-

ity.

2. Loosen and remove the front timing cover bolts

and take out the front timing cover.

3. Remove the AC compressor belt and Power

steering pump belt (stretch belt) (for procedure

refer AC compressor belt removal procedure in

this section).
