ENGINE
39

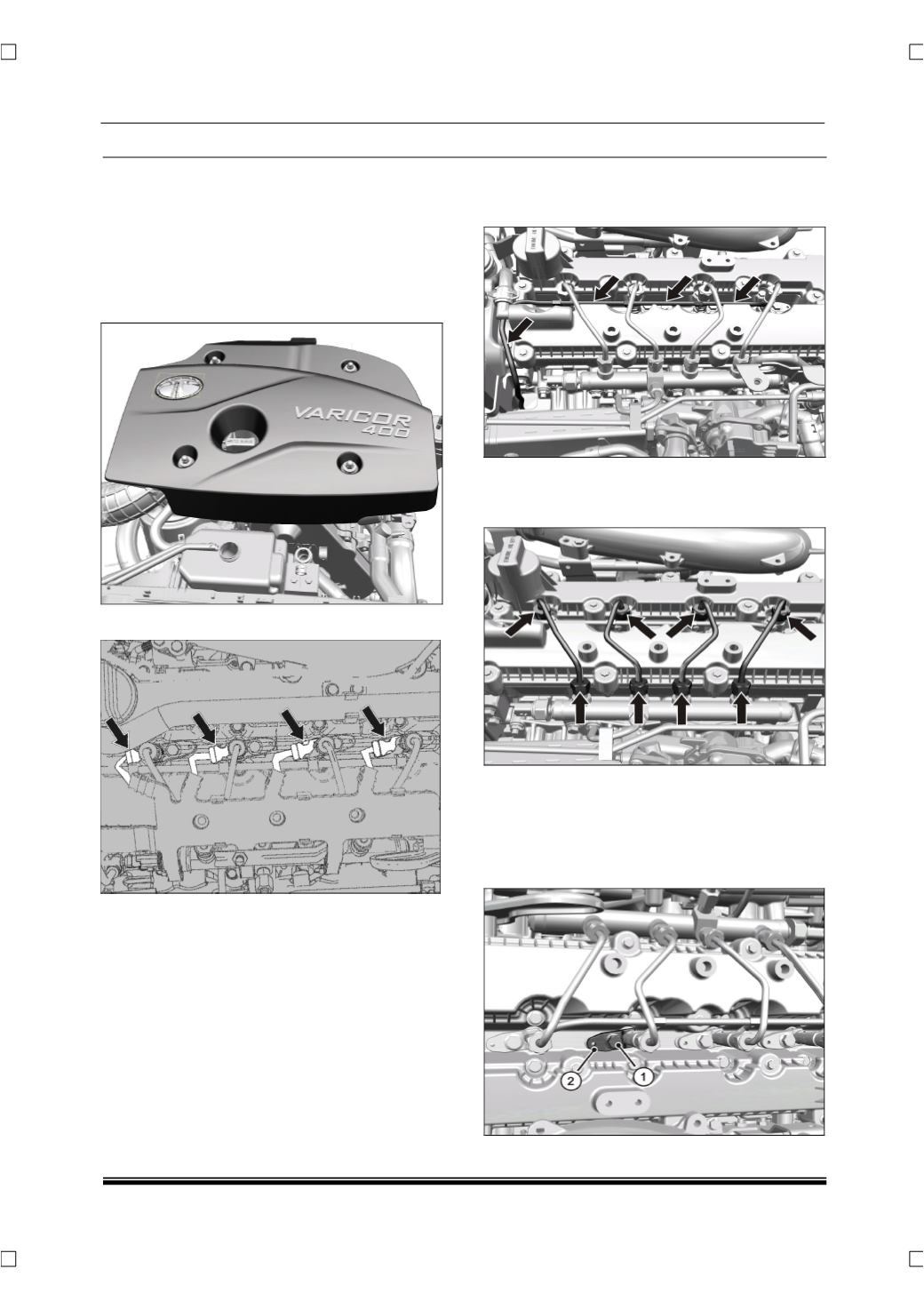

E. INJECTOR REMOVAL
1.
Relieve the fuel pressure. (For procedure refer
maintenance section in fuel system.)
2. Remove panel
(Wiper plenum) (Refer body
group)
for injector removal.
3. Remove the engine cover by pulling it upwards
firmly.
4. Disconnect the injector electrical connecters
5. Disconnect the injector back leak tube
(Overflow
pipe
) and cover the injector side opening with
suitable caps.
6. Remove the HP pipes connecting injector to
common rail and cover the injector opening with
suitable caps.
NOTE
Once removed HP lines should not be reused. As-
semble the new HP Pipes at the time of assembly.
7. Loosen and remove the bolt
(1)
along with wash-
er and remove the injector claw
(2).
