PROPELLER SHAFT

19

PROPELLER

SHAFT

ASSEMBLY OF CENTRE BEARING ON

PROPELLER SHAFT

1. Pack cavities between dust seals and centre

bearing with lithium base grease

(Bearing

grease).

2. Smear grease on the seating surface of centre

bearing on front propeller shaft.

3. Install centre bearing assembly on front

propeller shaft rear end.

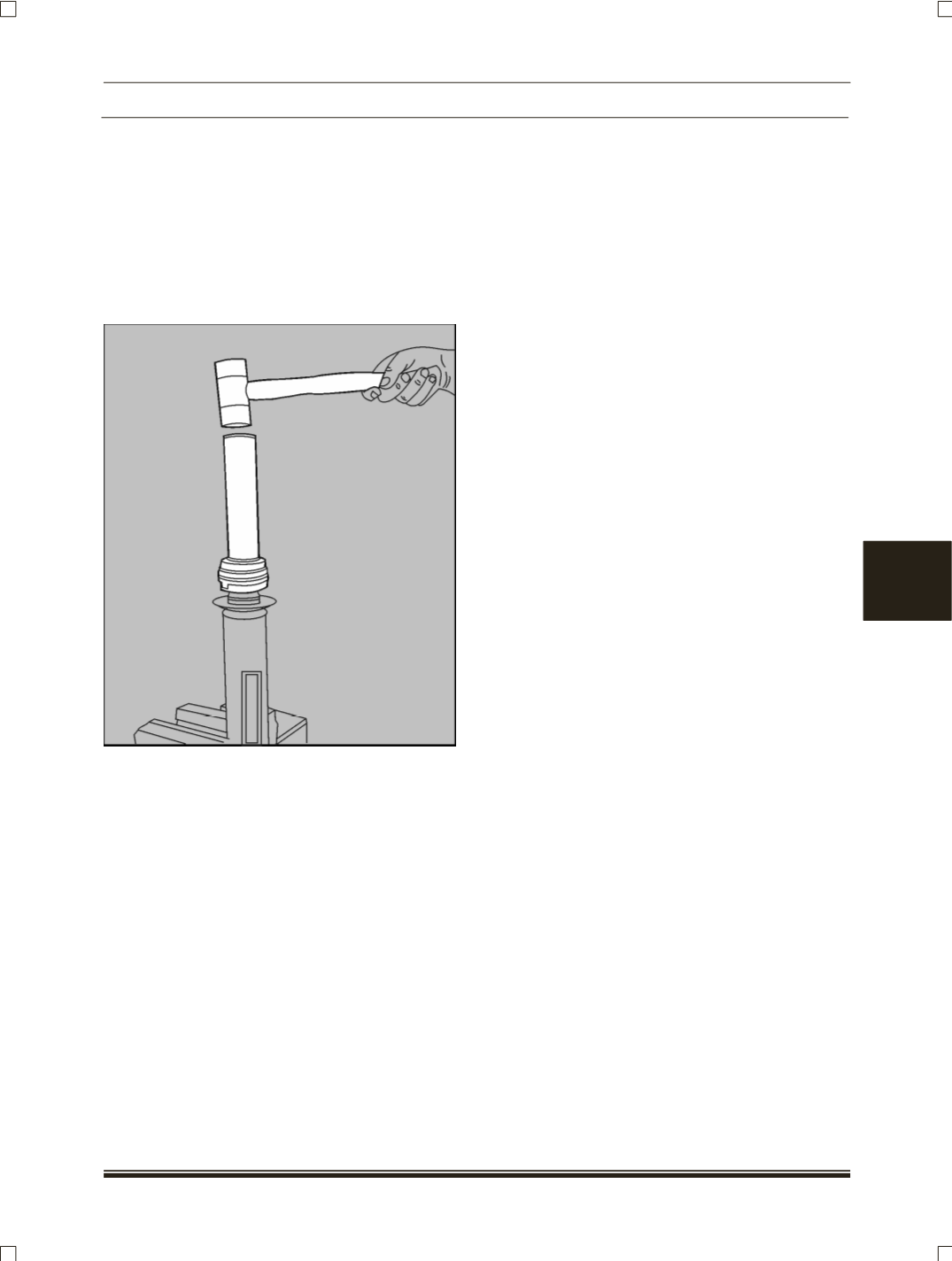

4. Install other spacer ring of centre bearing on

propeller shaft bearing, using a suitable drift.

5. Apply glycerin on inner periphery of rubber

housing and slide it on to the centre bearing

assembly.

6. Fit the bearing bracket and stake the clamping

strap.

7. Apply grease on the splines of front propeller

shaft and coupling flange.
