PROPELLER SHAFT
18

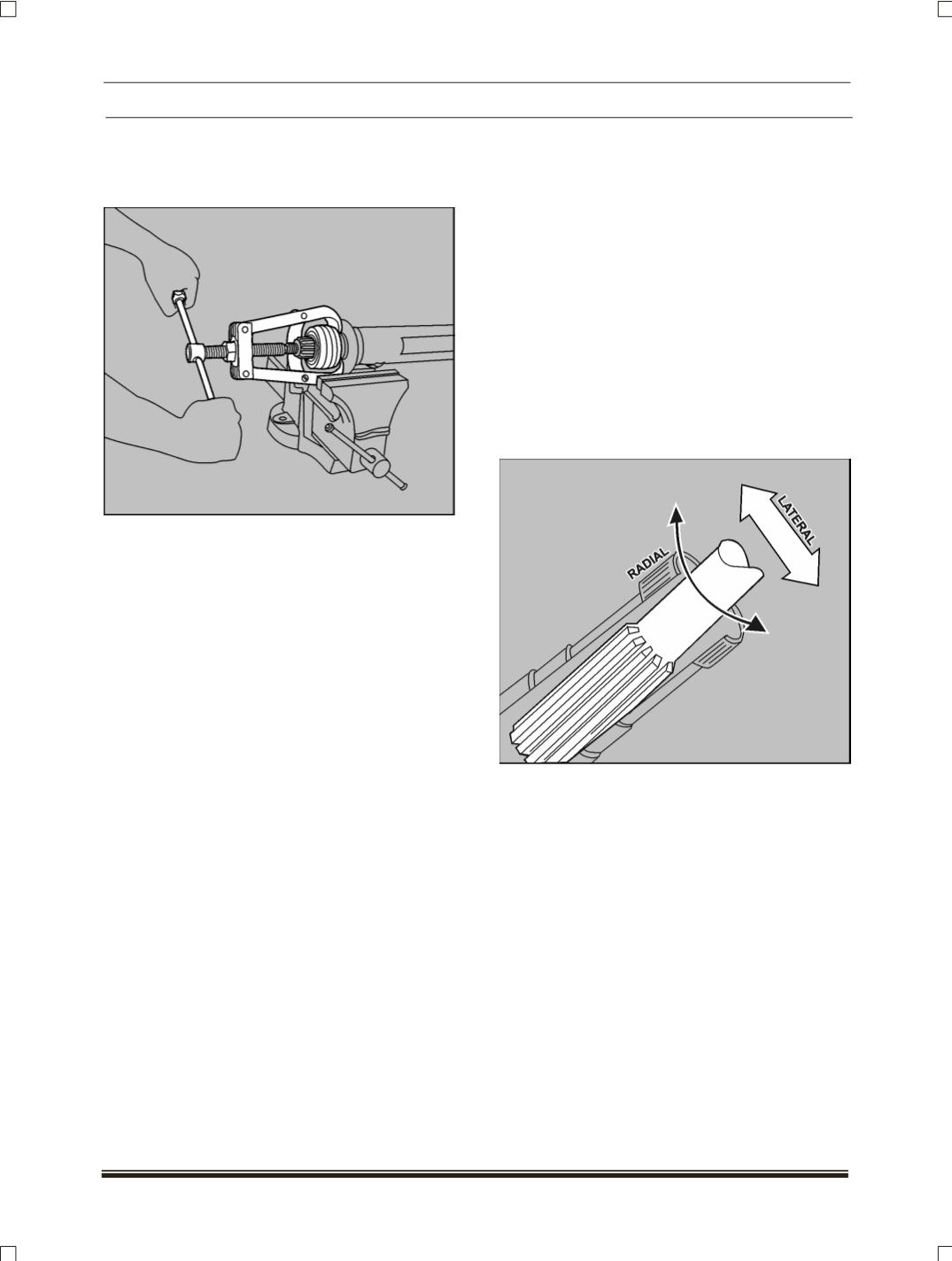

3. Remove rear spacer ring with Puller
(Part No.
312 589 25 33)
pull out centre bearing
assembly from propeller shaft. Remove front
spacer ring.
INSPECTION OF CENTRE BEARING
Clean all parts thoroughly.
NOTE
Do not apply solvent in bearing assembly and
rubber housing.
Check the following
1. Check the condition of splines and threads on
shaft.
2. Check the slip spline for excessive radial
movement. Insert the slip yoke into the tube
shaft and check the radial and lateral looseness
between the slip yoke and the tube shaft. The
lateral displacement should not exceed 0.15mm
and radial displacement should not exceed
0.18mm.
3. Check the condition of splines and holes on
coupling flange.
4. Check the condition of rubber housing. Replace
with new one if necessary.
5. Check the condition of centre bearing bracket
bearing surface and mounting holes.
6. Check the condition of clamping strap for any
damage especially at crimping portion.
