SAFARI STORME

Rear Axle

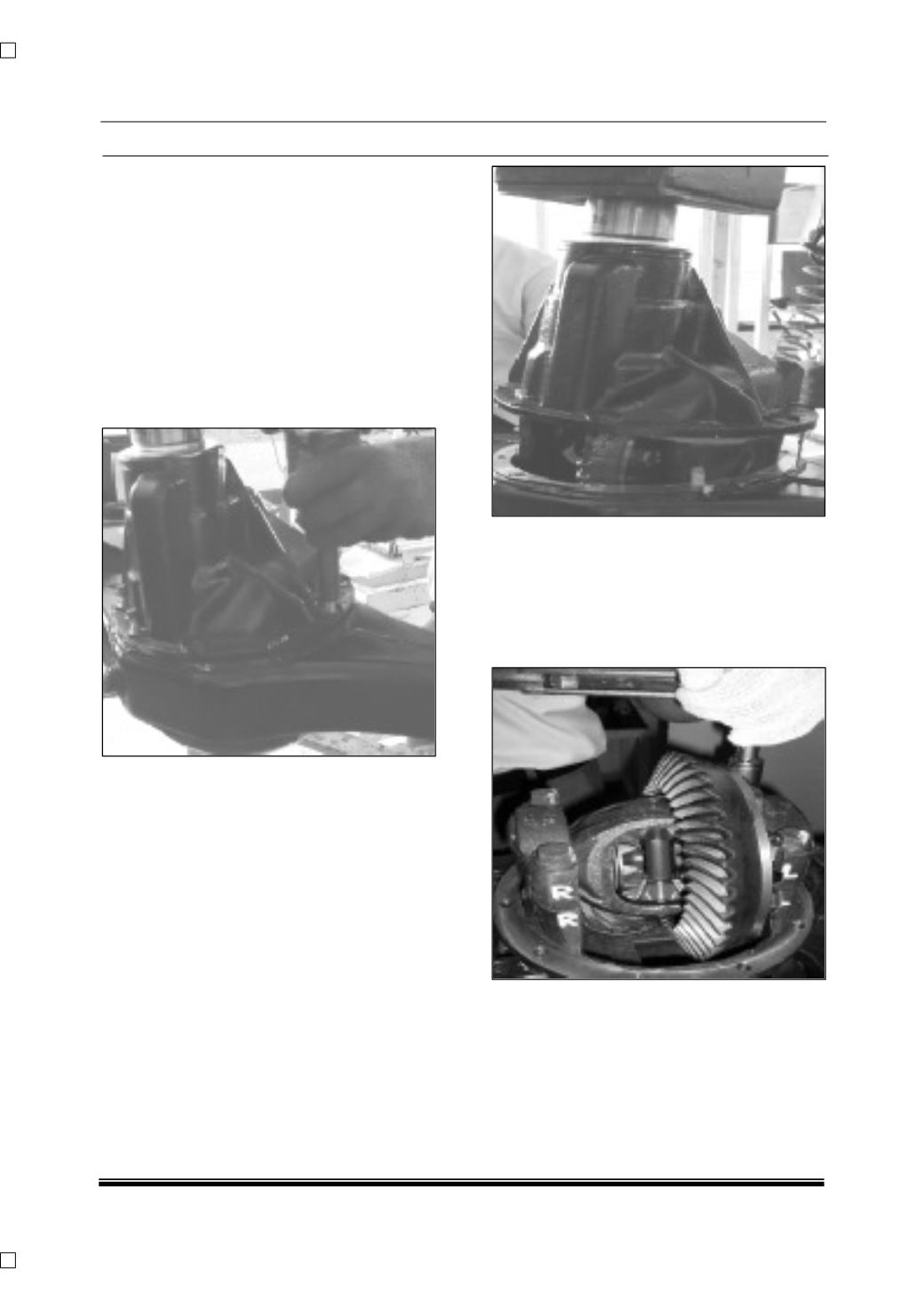

2.2 REMOVAL OF CARRIER SECTION FROM

BANJO:

Ensure Axle is securely mounted on work stand,

(Companion Flange Facing Upwards)

Remove the carrier mounting stud nuts & bolts

with the help of socket (size 10 for bolts & size 13

for nuts)

Note:

Discard The Nuts & Bolts & Use New while Re-

Installation.

Tap the carrier assembly with medium blows from

nylon mallet to loosen up the sealing compound.

Lift & remove carrier section from banjo & mount it

on work stand securely.

Warning:

Secure clamping of & work bench is required;

loose clamps may leads to accidents as carrier

section is heavier part on the axle assembly.

Remove studs & Clean the sealant from the banjo

carrier mounting face with the help of cleaning

agent (e.g. Thinner).

Note:

If no work is likely to be done on banjo, cover the

wheel end sides & banjo bowl to avoid

contamination to enter in it.

3. CARRIER SECTION: A-CARRIER DIS -

ASSEMBLY.

3.1 DISASSEMBLY OF CARRIER SECTION &

DIFFERENTIAL.

Remove Bearing Caps.

Note:

Liquid Gasket is used for seal carrier section with

banjo beam. Scrap this sealant & clear it.

Remove Bearing Caps by Removing Bearing Cap

Bolts.
