FRONTAXLE (4X4)
40

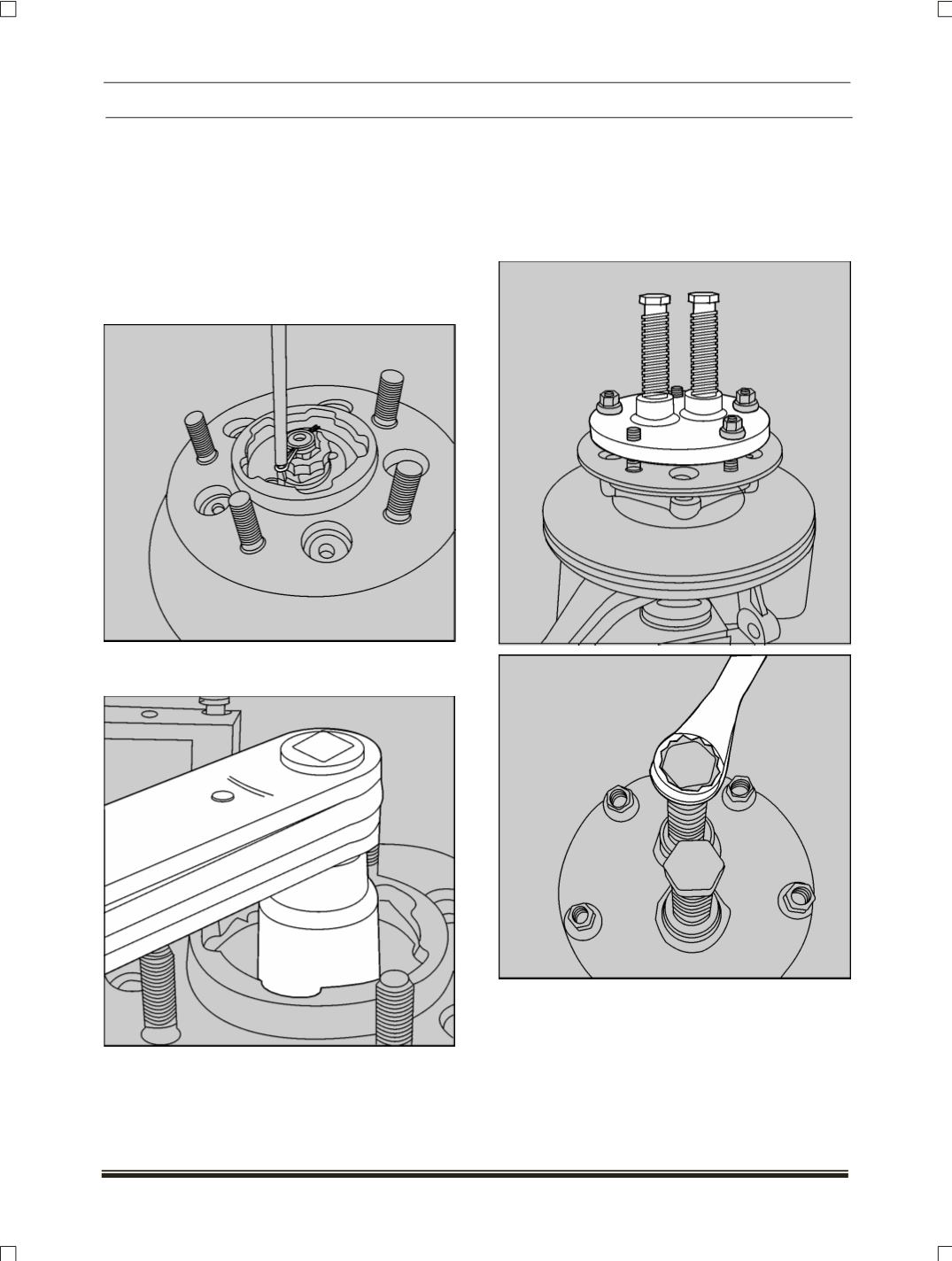

B. WHEEL END ASSEMBLY
DISMENTALING
1. Take the wheel end assembly and mount it on the
suitable stand.
NOTE
Ensure No Damage to the CV Joints while mounting
on the stand
2. Remove the cotter pin and remove the cap.
3. Lock the spindle
(Wheel)
bolts and remove the
spindle nut.
4. Tap with the nylon mallet and remove the CV joint
from the wheel end assembly.
NOTE
Ensure No Damage to CV Joints and Rubber Boots
are not cut.
5. Use special puller
(Part No.287058903311)
for
spindle removal from wheel end and remove the
spindle from the wheel end assembly
