FRONTAXLE (4X4)
42
ASSEMBLY

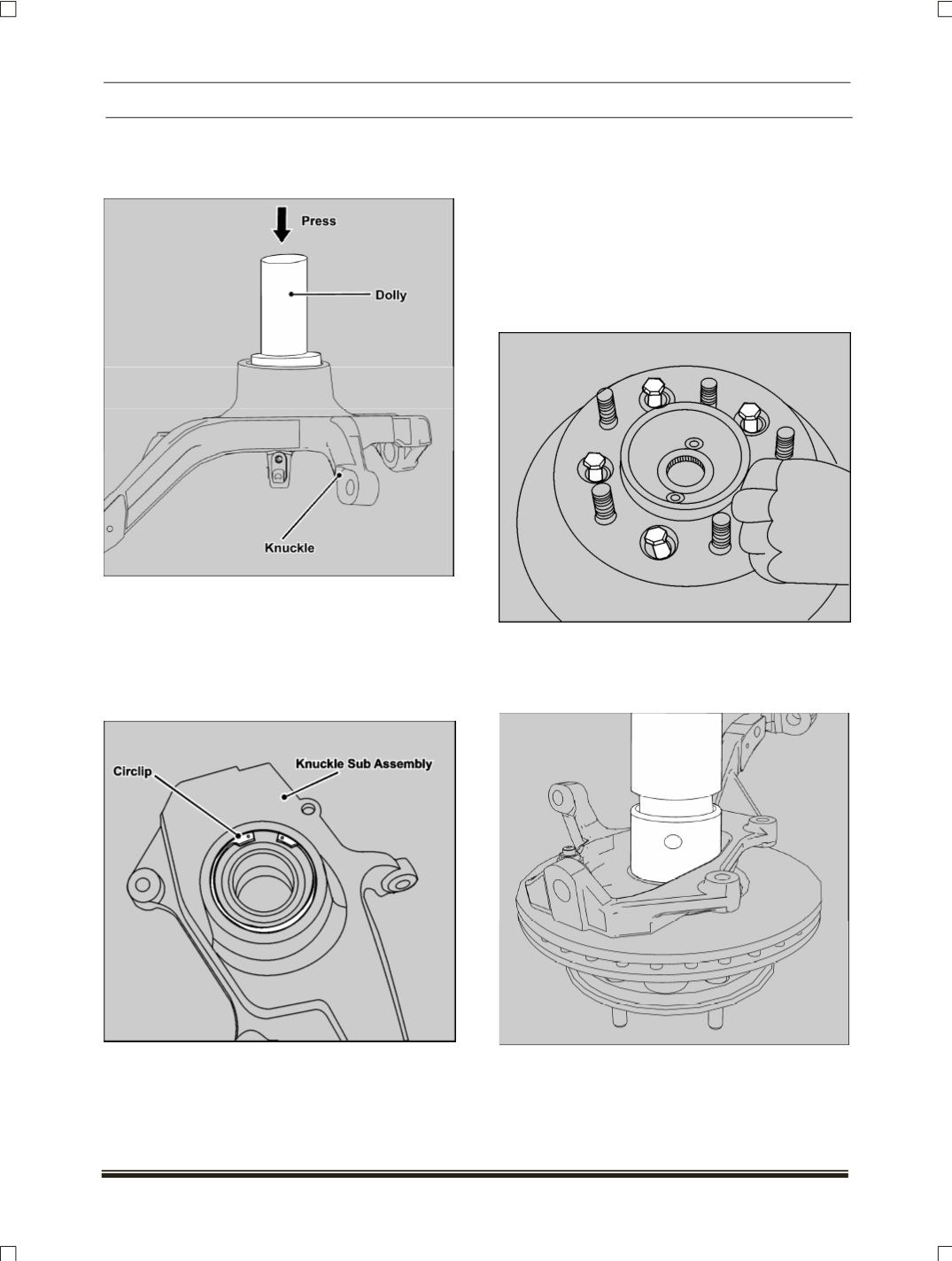

1. Press the Wheel Bearing into Knuckle using the
Bearing Pressing Dolly
(Part No.2870589033 14)
.
NOTE
Ensure bearing is getting pressed uniformly from all
direction, if bearing tilts while pressing then it may
get damaged during further pressing operation re-
sults in higher drag.
2. Install Circlip which locks the bearing in knuckle
NOTE
Ensure Circlip is installed after bearing pressing
done, if not used; this may cause failure of wheel
end assembly due to high cornering loads coming on
it during vehicle operation.
3. Clamp the Spindle assembly with brake disc with
the help of spindle bolts and spring washers, En-
sure proper fitment is done and spindle bearing
Dia. is not damaged. Torque the bolts to specified
torque.
(Refer service data)
4. Take the above made assembly and press the
Knuckle into Spindle using knuckle pressing dolly
(Part No.287058903312
) while referencing the
bearing ID.
