TRANSFER CASE

20

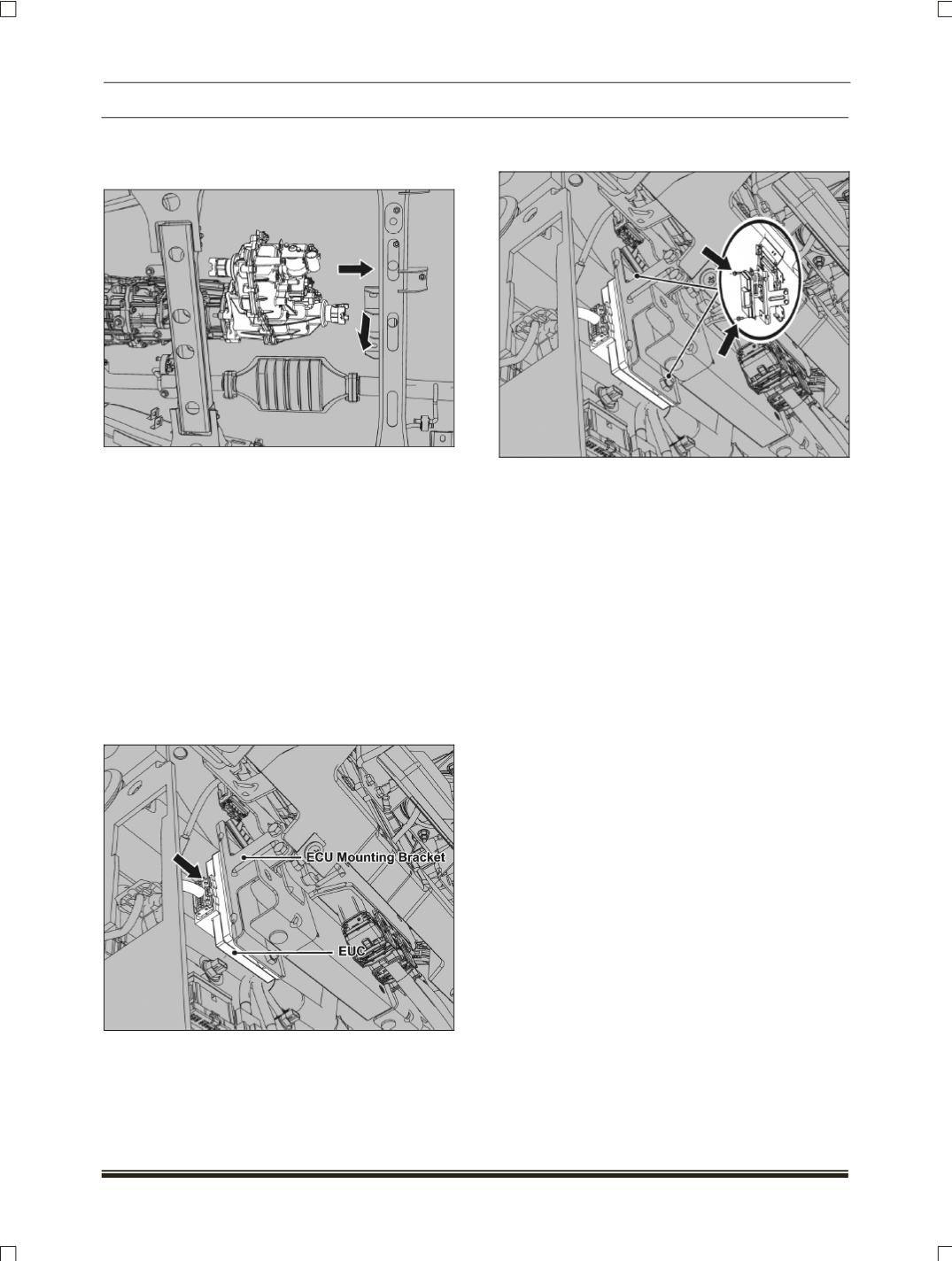

8. Support the transfer case and then separate the

same from the gearbox and then lower it

carefully.

FITMENT

For fitment follow reverse procedure of removal.

B. TRANSFER CASE ELECTRONIC CONTROL

UNIT (ECU)

REMOVAL

1. Disconnect the battery negative.

2.

Remove hush panel

.(For procedure refer hush

panel removal in Body section)

3. Remove glove box.

(For procedure refer glove

box removal in Body section)

4. Disconnect the electrical connection from the

transfer case ECU.

5. Loosen and remove two mounting bolts and

take out the ECU from the vehicle.

FITMENT

For fitment follow reverse procedure of removal.
