ENGINE
127
•
Always remove the Injectors before dismantling
the cylinder head. This is to avoid damage to the
injector nozzle tips which protrude out of cylinder
head. In case of HP pump removal handle the
pump with proper care to avoid any damage to in-
let pipe, venturi and connectors.
2.1.7.2 FUEL SYSTEM COMPONENTS

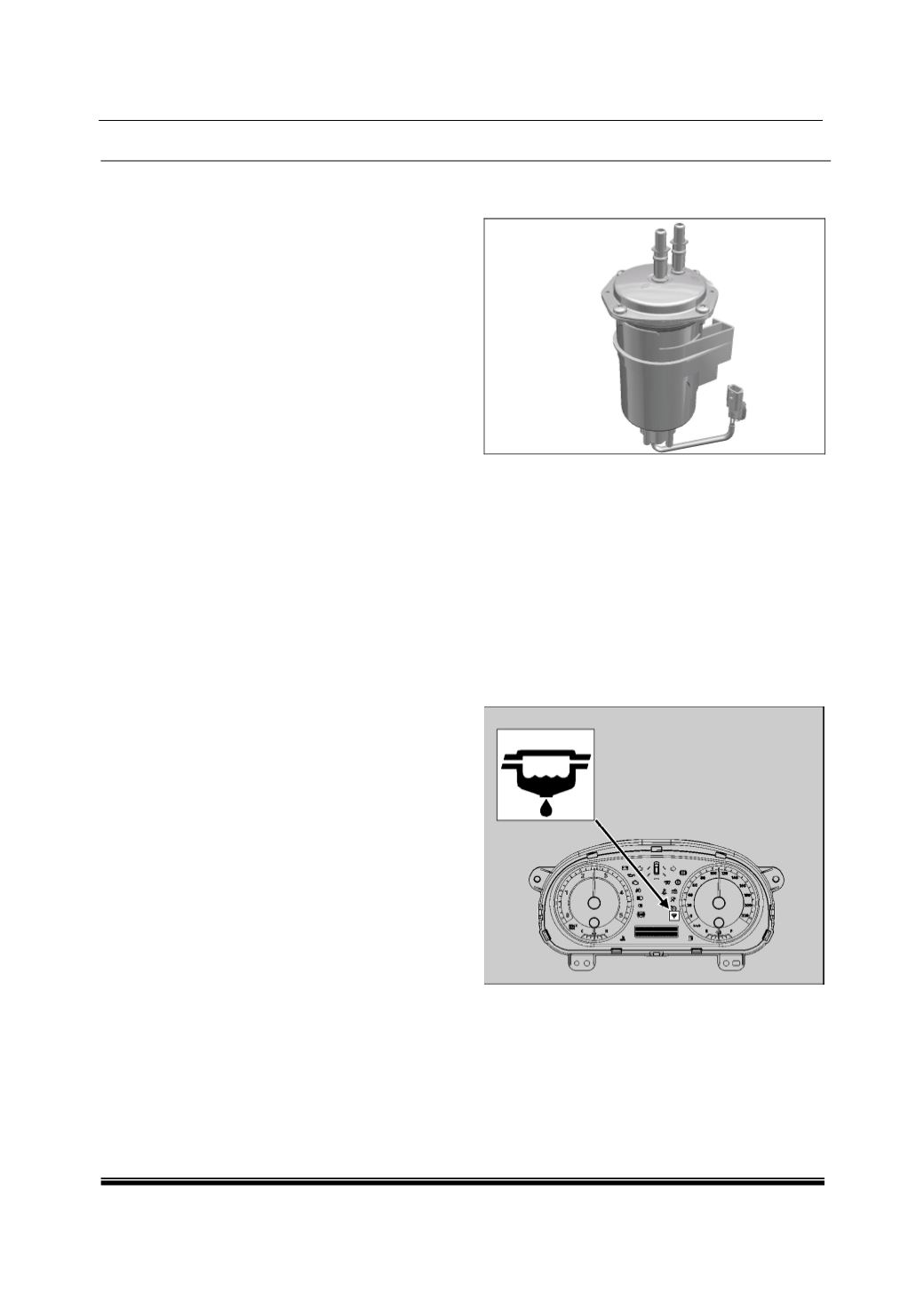

A. FUEL PREFILTER CUM SEDIMENTOR
The prefilter cum sedimentor is a part of the filtration
system. It is fitted in the fuel feed system to filter the
water present in the fuel. It can store water up to
120cc. The sensor fitted in the sedimentor gets trig-
gered once the water level approaches its maximum
limit. This trigger is displayed as a warning in the
instrument panel.
For more details on the sensor refer EMS Section in
this group.
For removal and refitment procedure refer Engine
On-vehicle repairs in this section.
WATER IN FUEL INDICATOR
