SAFARI STORME

ENGINE

109

3. Connect the hose pipes & electrical connector to

the vacuum solenoid valve.

NOTE

Assemble the vacuum solenoid valve hose as per

marked end as indicated on the Hose and arrow

mark should be at top

4. Fit the engine cover.

! CAUTION

Care should be taken to connect the ports of the

vacuum solenoid valve to their respective hoses.

Any interchanging of the connection will lead to mal-

functioning of the EGR system.

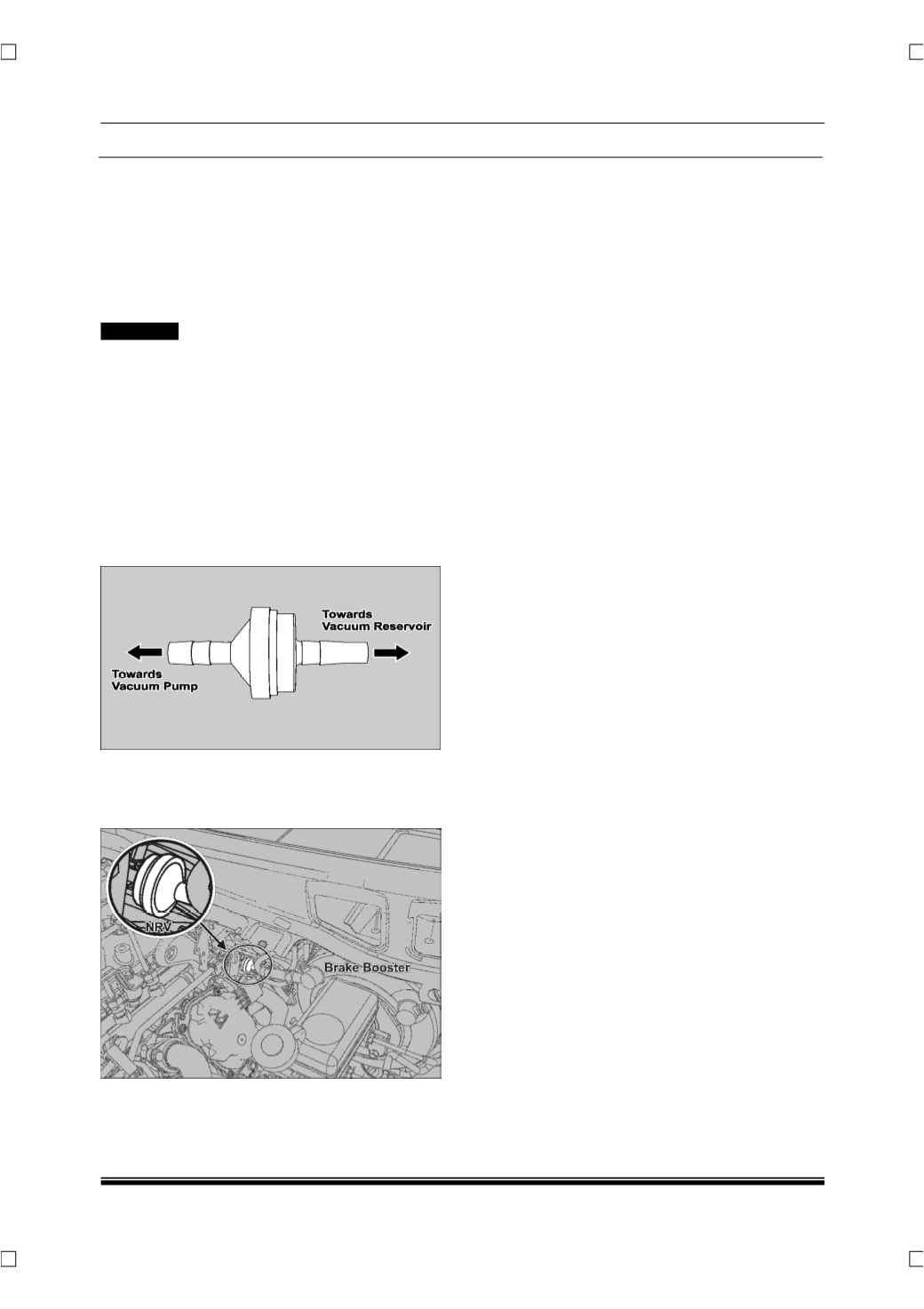

NON RETURN VALVE

(NRV)

This is provided to separate the brake booster vacu-

um circuit from the Engine Vacuum circuit.

NOTE

At the time of assembly the conical side hose con-

nection of NRV should point towards vacuum pump.

LOCATION

The NRV is located on the firewall in the line be-

tween Vacuum pump and vacuum reservoir.
