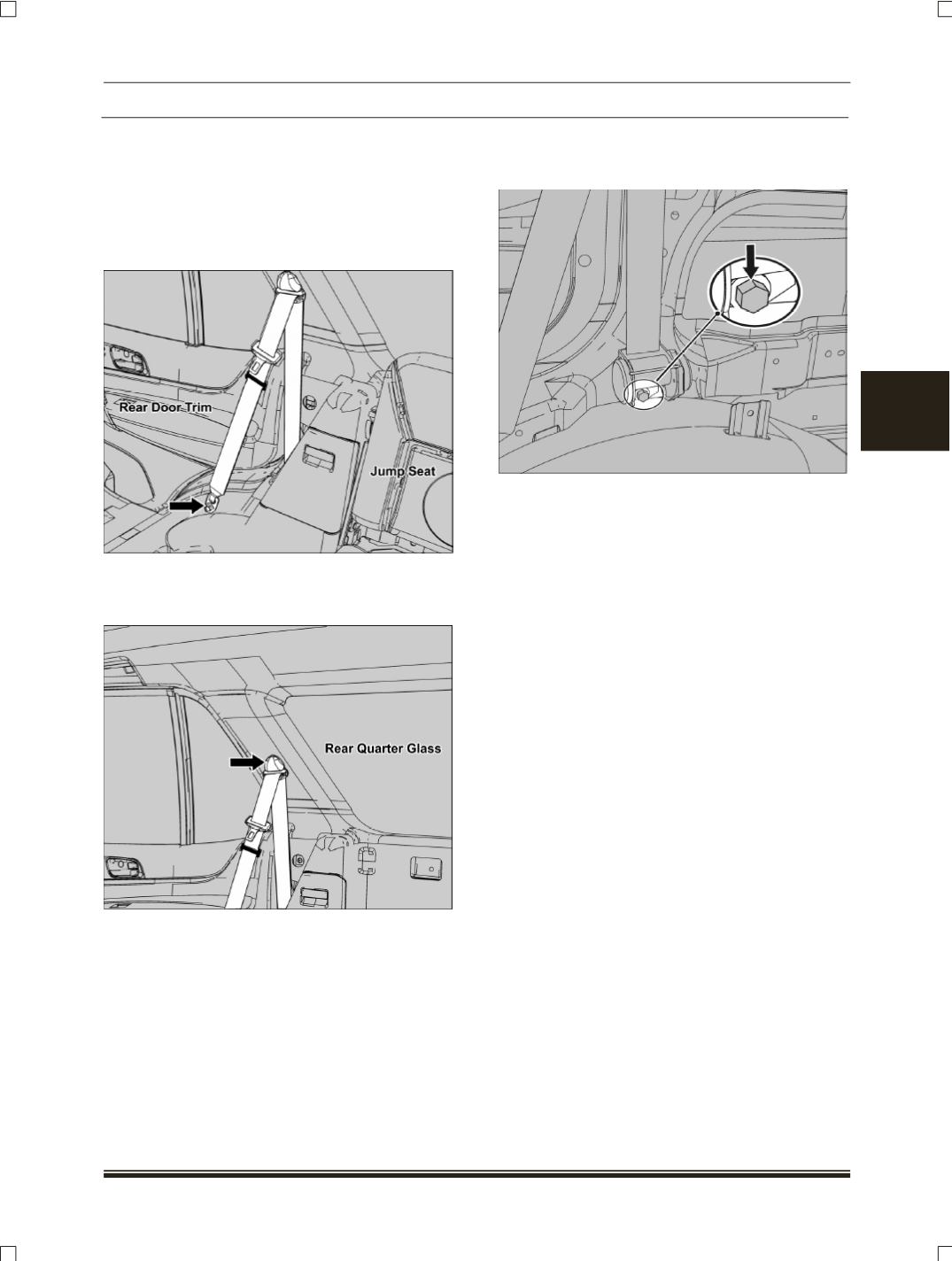

9.2.27 SECOND ROW SEAT BELT
REMOVAL
1. Summer salt the second row seat for easy
access.
2. Loosen and remove the lower mounting bolt of
the seat belt
3. Remove top cover of upper mounting bolt then
loosen and remove mounting bolt which is
below it.
4. Remove the rear quarter trim.
(For procedure
refer rear quarter removal procedure in this
section)
5. Loosen and remove the mounting bolts and
take out the seat belt assembly form the
vehicle.
FITMENT
For fitment follow the reverse procedure of
removal.
NOTE
Proper tightening torques need to be maintained
while installing the seat belt on the vehicle.
