FUSE DETAILS:
FUSE NO
FUNCTION
FUSE DESCRIPTION
COLOUR
F1
Starter Motor
FUSE_POWERVAL CAL5
BROWN
F2
Alternator
FUSE_MEGAVAL 150A
ORANGE
F4
ABS
FUSE_MIDIVAL 40A
GREEN
F6
Ignition
FUSE_MIDIVAL 60A
YELLOW
F7
Battery Cockpit
FUSE_MIDIVAL 60A
YELLOW
F8
Cooling Fan 1
FUSE_MIDIVAL 30A
ORANGE
2. ENGINE FUSE AND RELAY BOX:
Main distribution unit is fitted in engine compartment. It consists of fuses and relays. For details refer

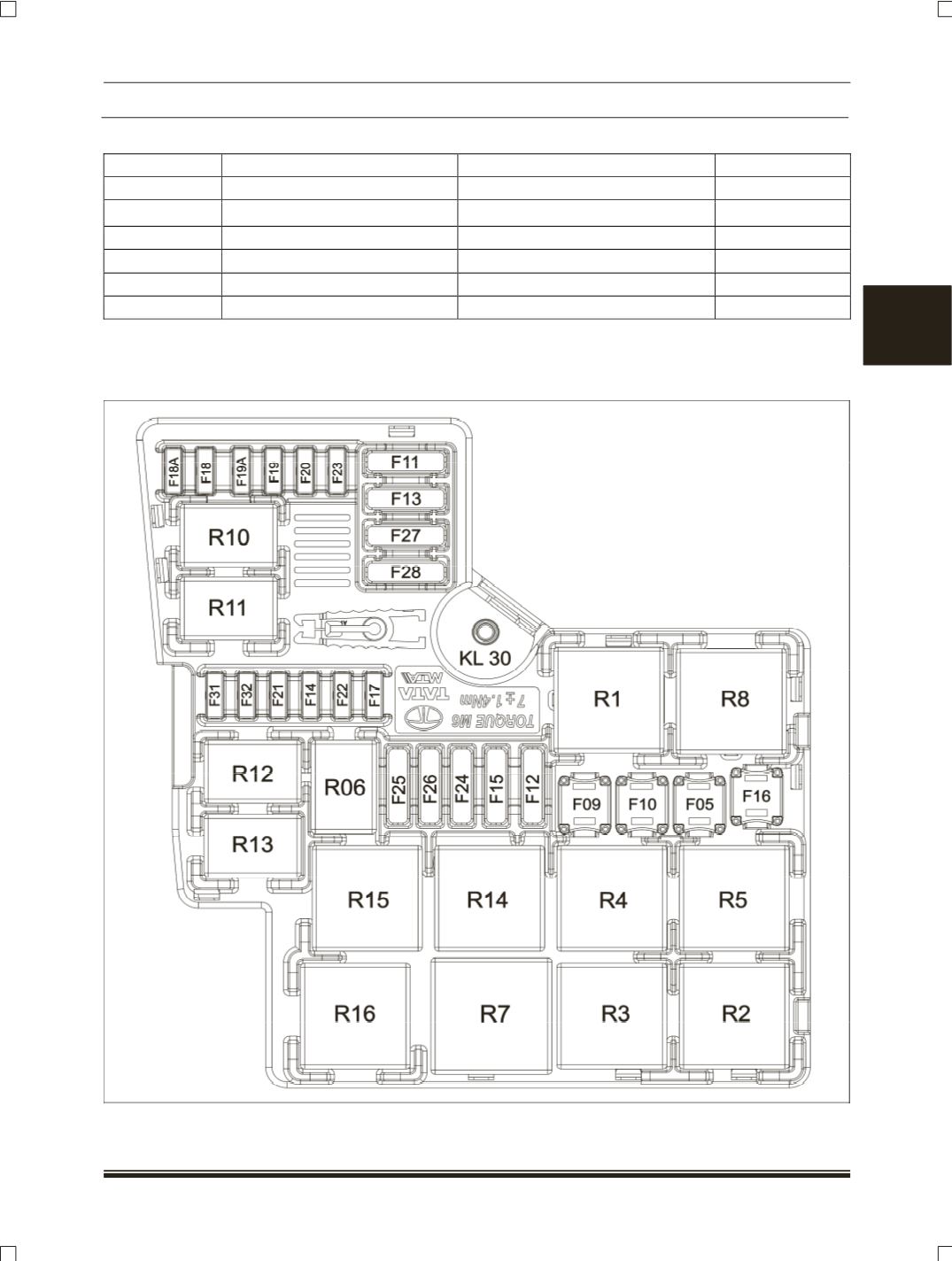

top view of MDU.
