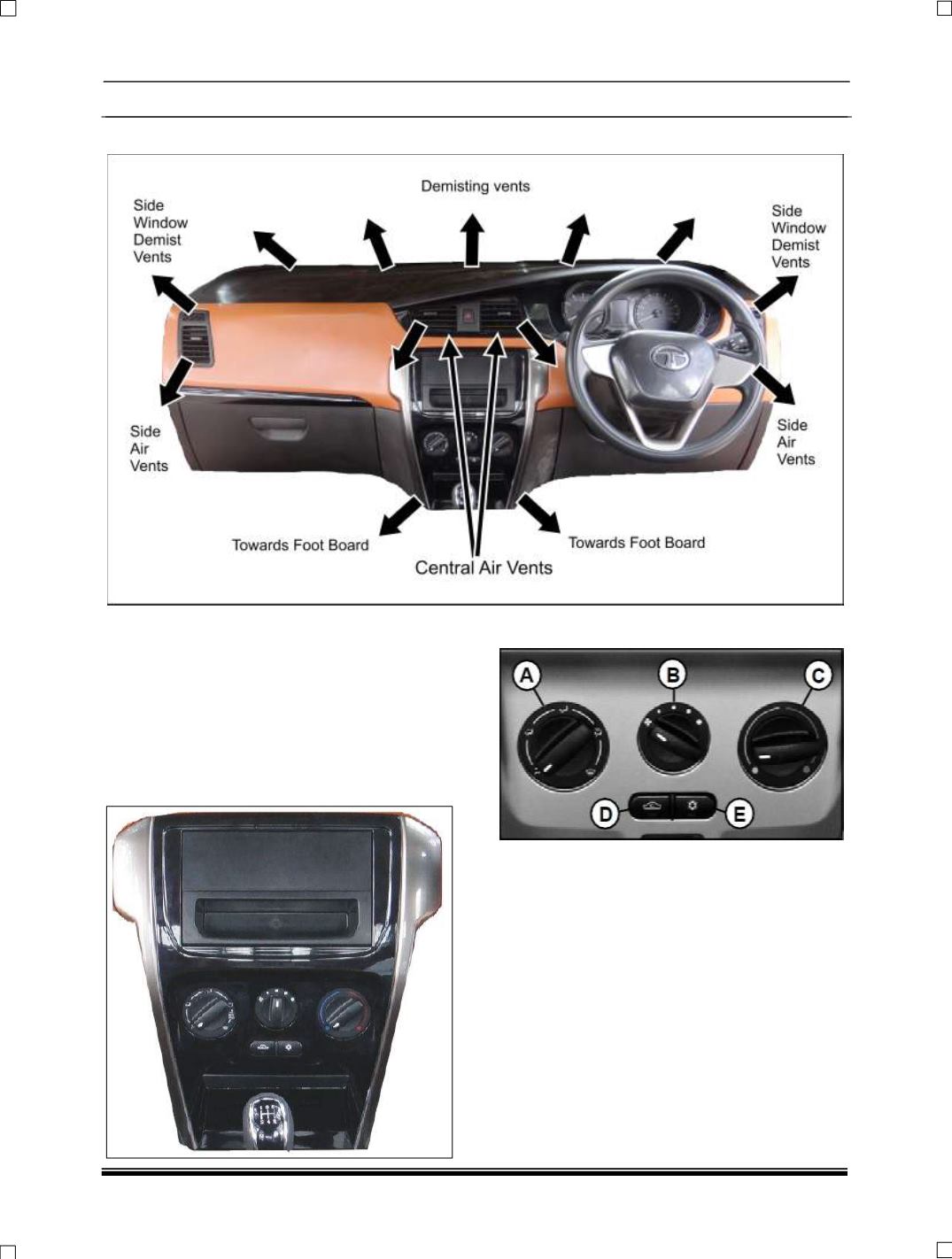

11.10 HVAC CONTROLS (Air Flow Pattern)
HEATING,
VENTILATION
AND
AIR
CONDITIONING
A. TEMPERATURE CONTROL KNOB:
The air temperature in the car can be controlled
by operating the temperature control knob (A).
The temperature can be increased by rotating the
knob towards the red segment and decreased by
rotating it towards min. red segment.
HVAC Controls.
Heater Controls
A.
Air Distribution control
B.
Blower Speed Control
C.
Temperature Control
D.
Air Recirculation
E.
AC ON/OFF
