AIR CONDITIONING
17
11.6
SERVICING
PROCEDURE
FOR
SUBROS IF FITTED
11.6.1 REMOVAL AND REFITMENT OF
CABLES FROM HVAC
Removal of cable:

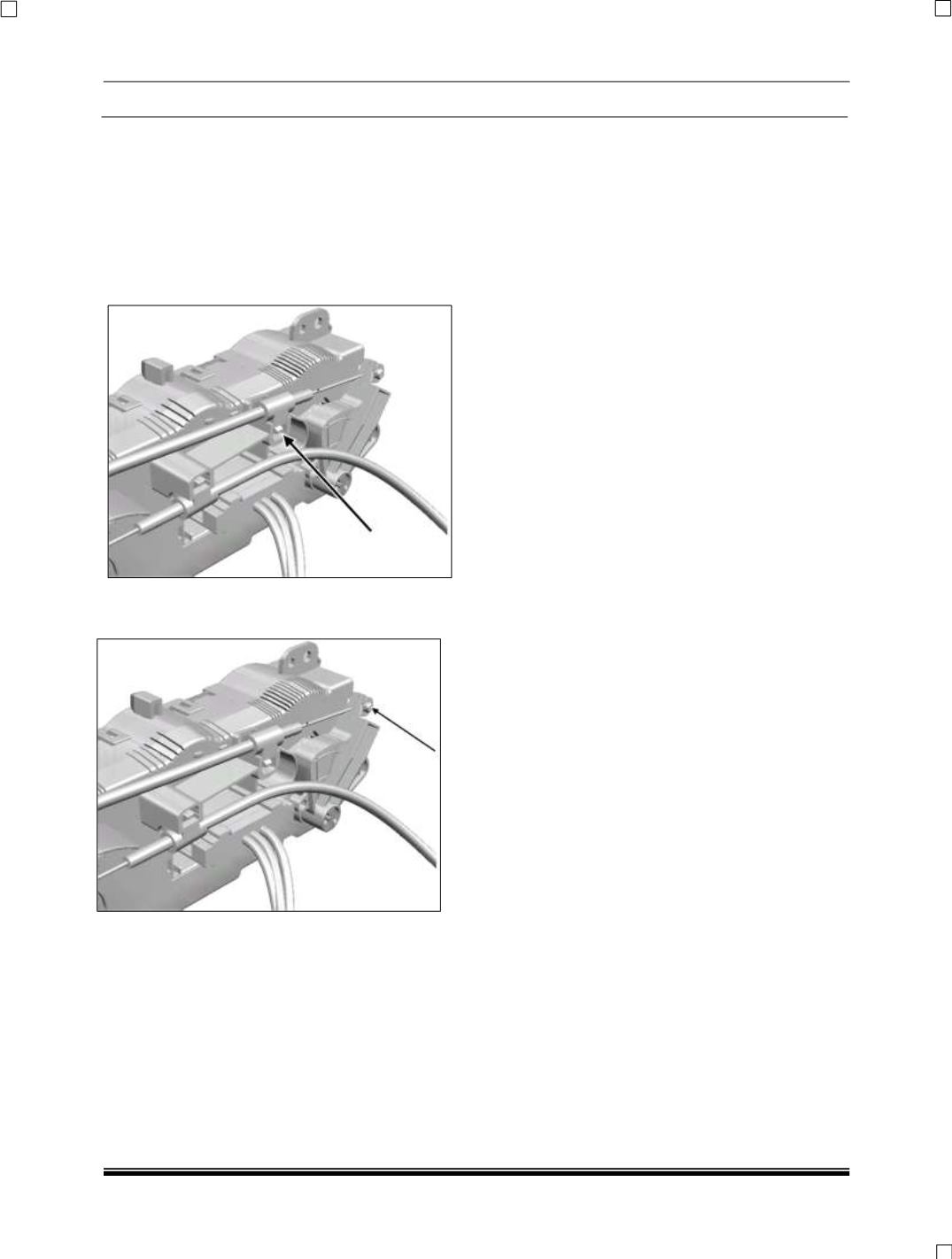

1. Push the Bowden clip in arrow direction for
removing it.
2. Remove the cable coil from the respective
cams.
RE-FITMENT OF CABLE:
1. Straighten the Bowden cables, before starting
the assembly.
2. Fix the ends of the cable to the HVAC control
panel.
WARNING:
Put the cable with white tag in black gear and the
blue tag cable in white gear.
3. While assembly of Bowden cable knob
should keep on face mode.
For Temperature Cable:
The temperature knob should be in full cold
position while assembling the cable.
4. For Air Distribution Cable: Put the eyelet in
distribution cam.
For Temperature Cable:
Put the eyelet in mixing cam.
5. Insert cable in lock clamp at white and blue
taps respectively.
6. Insert white bush on the control cable coil
after insertion of coil in lever.
7. Check Control panel Knob rotation for proper
function of the Kinematics.
