AIR CONDITIONING
16

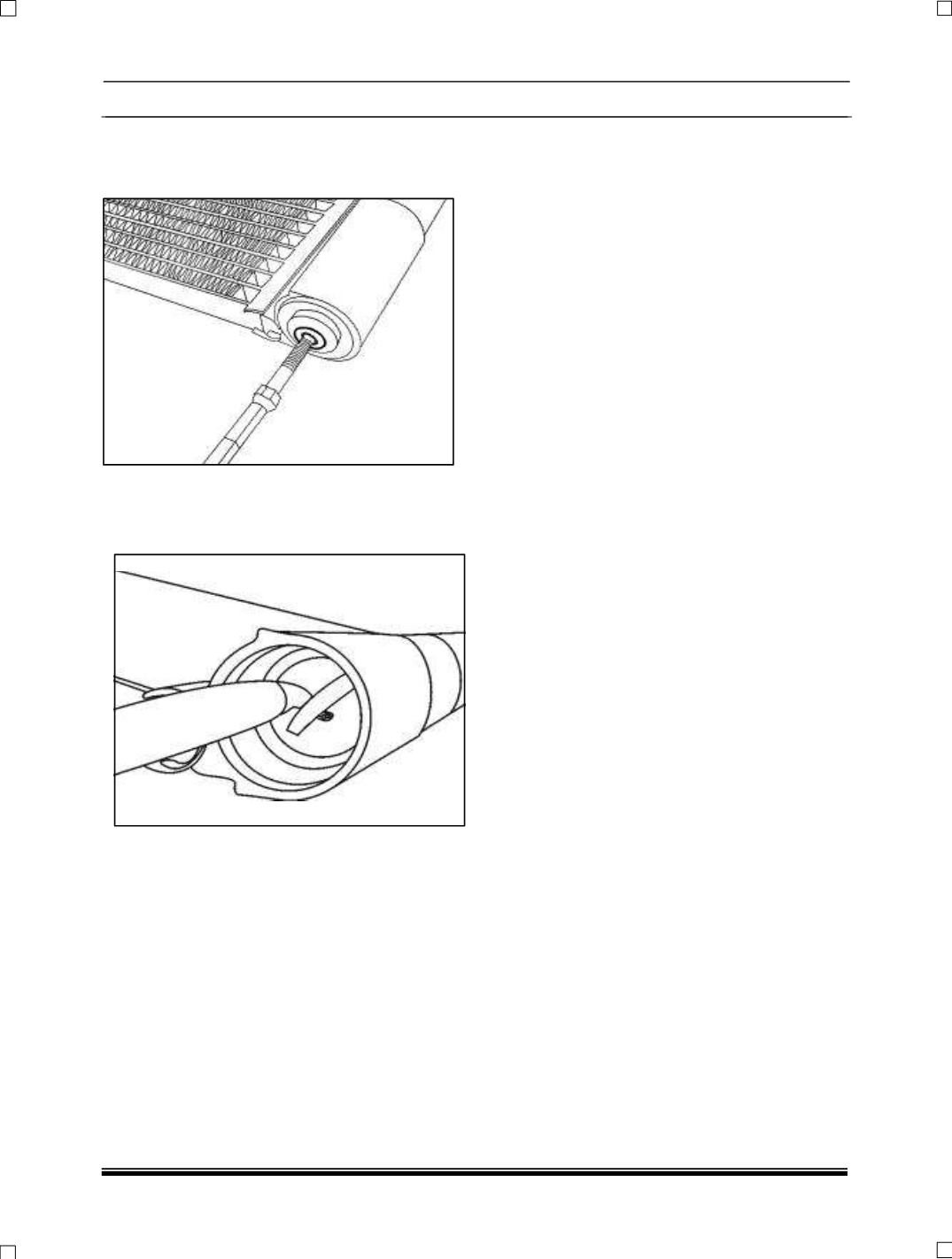

Remove komo plug bottom assy. from condenser
by tightening the tool in tapped hole of Bottom
plug and then pull outside (as shown below).
4. Remove Cartridge assembly from condenser
by placing hook of the tool into the hole
provided and then pull outside. (as shown
below)
ASSEMBLY OF CARTRIDGE
1. First assemble the cartridge by pressing it
inside komo tube till it fits into groove provided
in komo profile.
PRECAUTION –
Cartridge should not expose to atmosphere for a
long time. It should be assemble immediately after
removing from packaged condition.
2. Assemble komo bottom plug by pressing it
above cartridge until it clears retaining ring
groove.
3. Assemble retaining ring into groove with help
of
4. Plier.
5. Assemble plastic frame by pressing it on the
komo side manifold until all snaps are
properly locked
