BODY
18

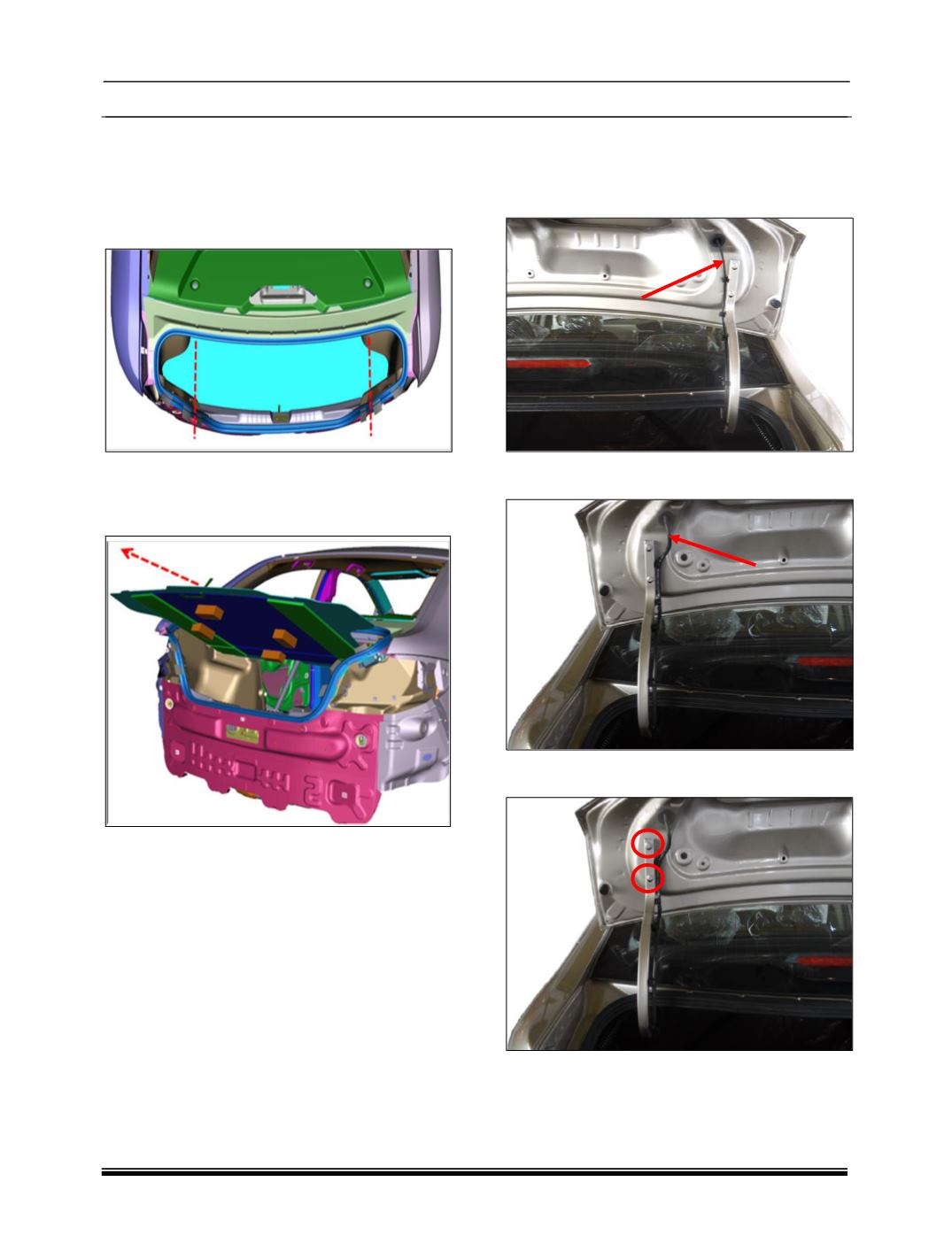

14. Assembly Luggage Compartment Carpet :
Removal :
1. Assembly luggage compartment (spare wheel
carpet) is free to move in body. This helps to
clean the carpet by removal process without
removal of any other trim.
2. Gently fold the side corners of carpet shown
by red curves with folding axis as green line
shown so that it can be taken out from the
aperture once trunk lid open.
3. Taken out the trim completely from the
aperture.
Re-Fitment :
Carry out the removal process in reverse
order in appropriate sequence for re-fitment of
luggage compartment carpet.
15. Trunk Lid :
Removal :
1. Open the trunk lid.
2. Remove the trunk lid latch cable.
3. Remove wiring harness connection with the
trunk lid.
4. Loosen the bolt and remove the trunk lid from
the body.
Re-Fitment :
Carry out the removal process in reverse
order in appropriate sequence for re-fitment of
trunk lid.
