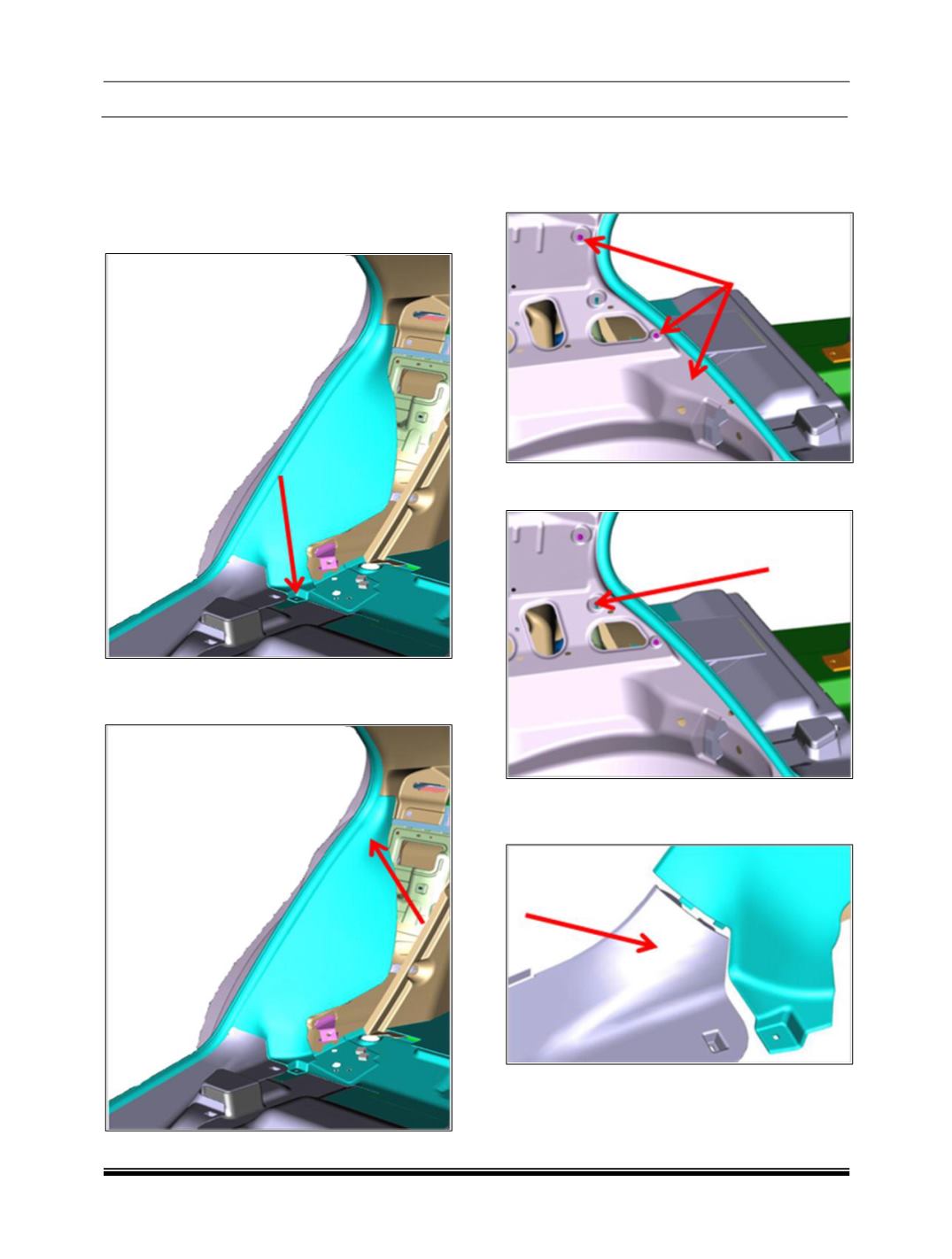

12. Wheel Arch Trim :
Removal :
1. Remove the rear door primary seal, just
enough to remove the wheel arch trim.
2. Remove the screw off grommet which is used
for bottom fixation.
3. Gently start removing the wheel arch trim
from top side (C pillar upper interface),
Starting with removal of snap.
4. Remove the trim clips at all three
corresponding BIW hole locations.
5. Remove the wheel arch trim off the BIW along
it's locators direction.
6. Take off the wheel arch trim, by removing the
lugs of wheel arch trim from scuff plate
interface.
Re-Fitment :
Carry out the removal process in reverse
order in appropriate sequence for re-fitment of
Wheel arch trim.
