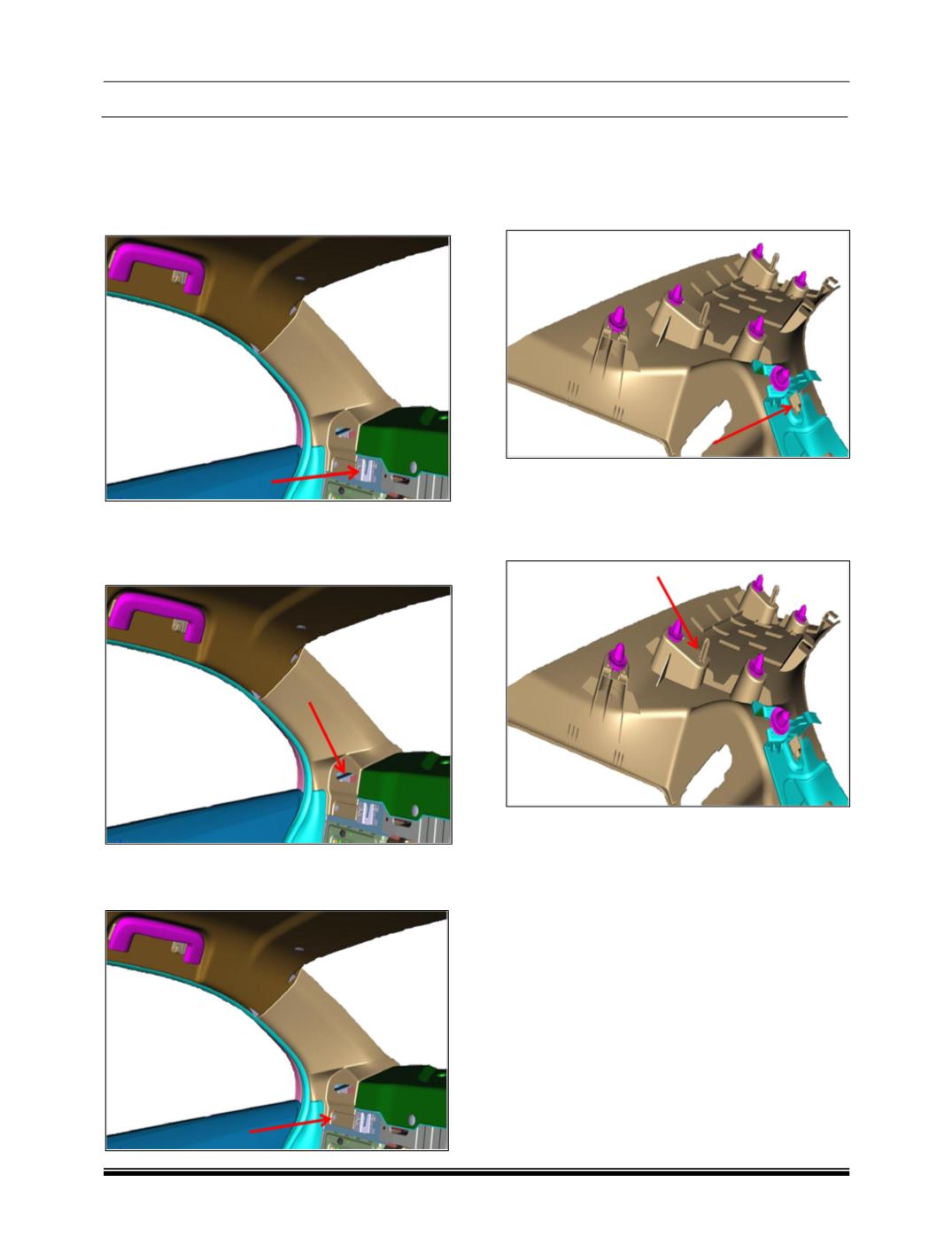

10. Rear Quarter Trim (RQT) :
Removal :
1. Remove the rear door primary seal just
enough to remove the Rear Quarter Trim.
2. Remove the rear seat back.
3. Remove the seat belt bezel from the cutout
given in C pillar upper, which is fixed through
2 lugs at bottom edge and snaps at top edge.
Ensure correct fitment after snapping action.
4. Remove plastic rivet clip which is used for
fixation in X direction. It is hidden by rear seat
back.
5. Remove the RQT, start with removal of snap
engagement between RQT and WAT
(Desnapping action).
6. Now remove the trim by gently pulling it out
from BIW. There are 5 trim clips and 2
locators for C pillar upper. Remove the trim
along it's locators axis to avoid the damage to
trim.
Re-Fitment :
Carry out the removal process in reverse
order in appropriate sequence for re-fitment of
C pillar upper (RQT).
