BRAKES
43
2. Pull off the brake disc.
Inspection
Refer Maintenance, Adjustment and Test for
Brake Disc inspection.
Installation

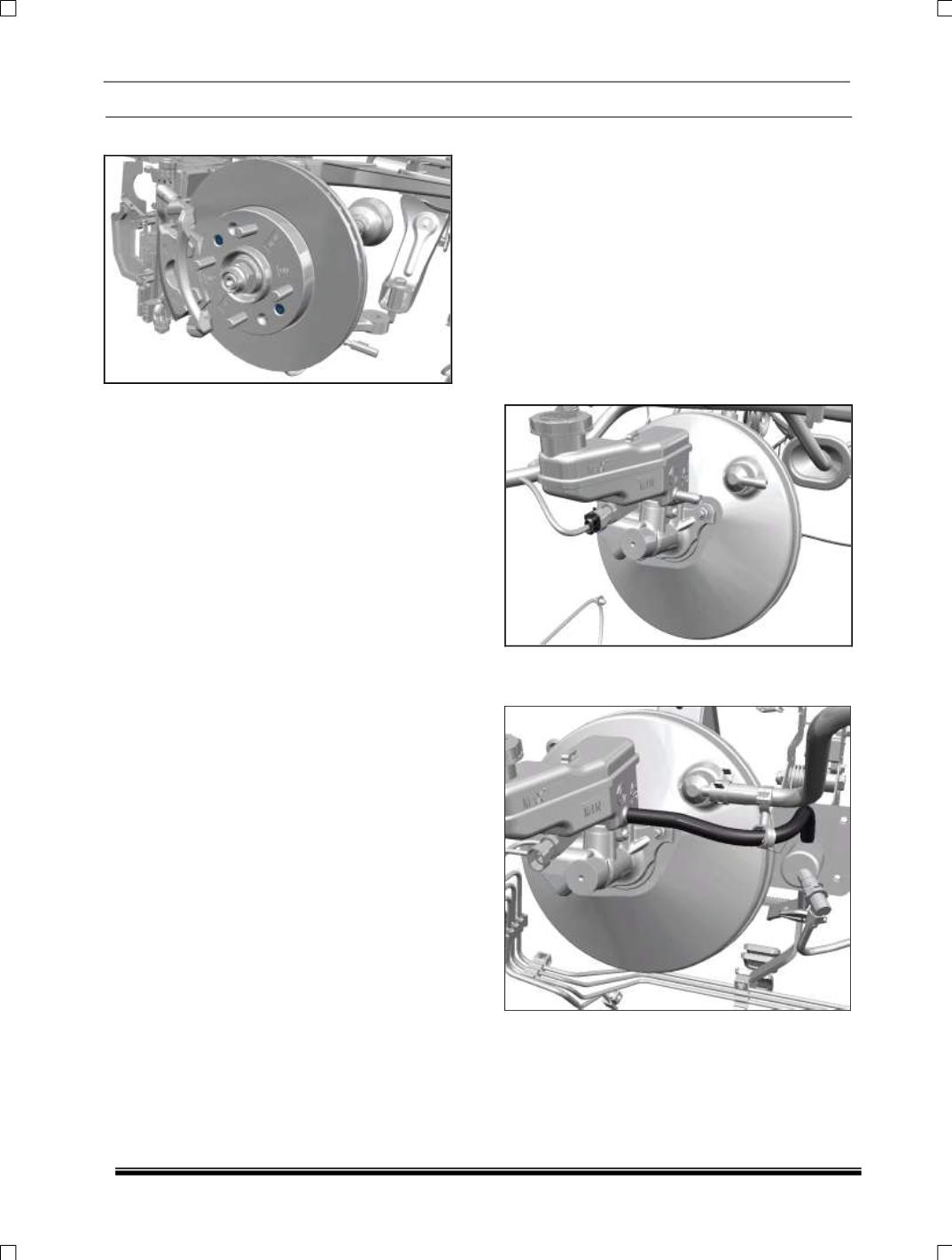

1. Clean mating faces of hub and new brake disc.
3. Mount brake disc onto hub and tighten two
screws to specified torque (0.6 – 0.8 Kg-m)
4. Install the caliper assembly to the steering
knuckle and tighten two bolts to specified
torque (7.0 – 8.0 Kg-m)
5.
Tighten wheel mounting nuts to specified
torque (7.9 – 8.1 Kg-m) and fit wheel/s.
7.10.3 REMOVAL AND REFITMENT OF TMC &
BOOSTER ASSEMBLY
NOTE:
Overhauling of TMC & BOOSTER
ASSEMBLY is not recommended. It is
recommended to replace TMC and Booster
assembly separately whenever required.
Removal:
1. Position vehicle on two postlift and disconnect
battery.
2. Drain brake oil.
3. Disconnect the electrical connector of brake
fluid level switch.
4. Disconnect clutch master cylinder hose from
reservoir.
