BRAKES
33

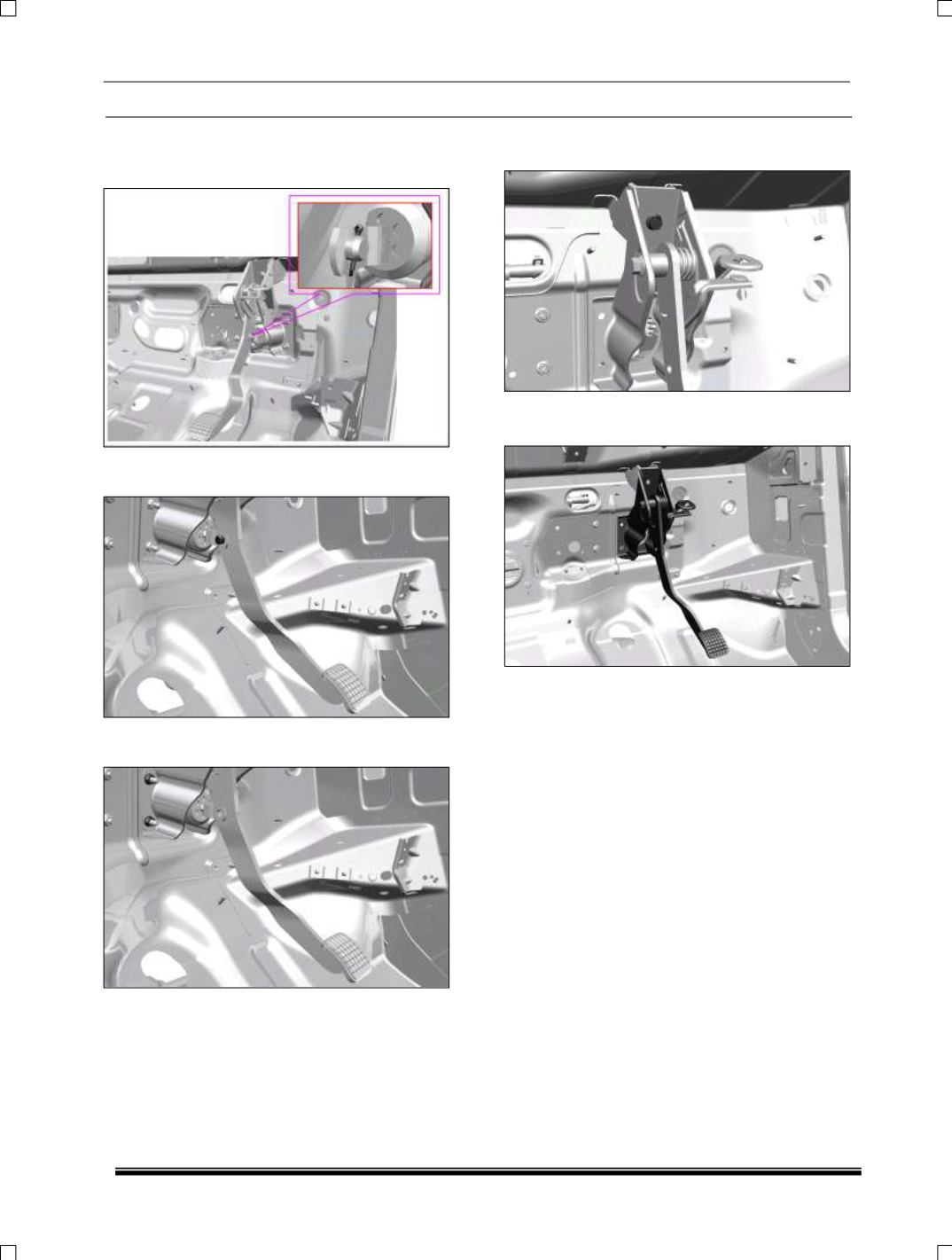

BRAKE PEDAL ASSEMBLY – REMOVAL
1. To disconnect pedal from brake booster
remove split pin as shown in fig.
2. Remove clavis pin to separate booster
assembly from pedal
3. Loosen and remove the brake mounting M8
nuts from panel firewall RHD.
4. Loosen and remove the brake upper mounting
M8 nut from panel firewall RHD.
5. Pull out the brake mounting bracket along with
brake pedal from the driver’s foot control area.
INSTALLATION
1. Hold the brake control bracket on firewall.
2. Tighten the brake upper mounting M8 nut.
3. Tighten the brake mounting M8 nuts on panel
firewall RHD.
4. Match clavis hole to the pedal lever hole and
insert clavis pin into the hole.
5. Insert split pin in to the hole of clavis pin and
split the end of split pin.
