BRAKES
46
REAR BRAKE ASSEMBLY :

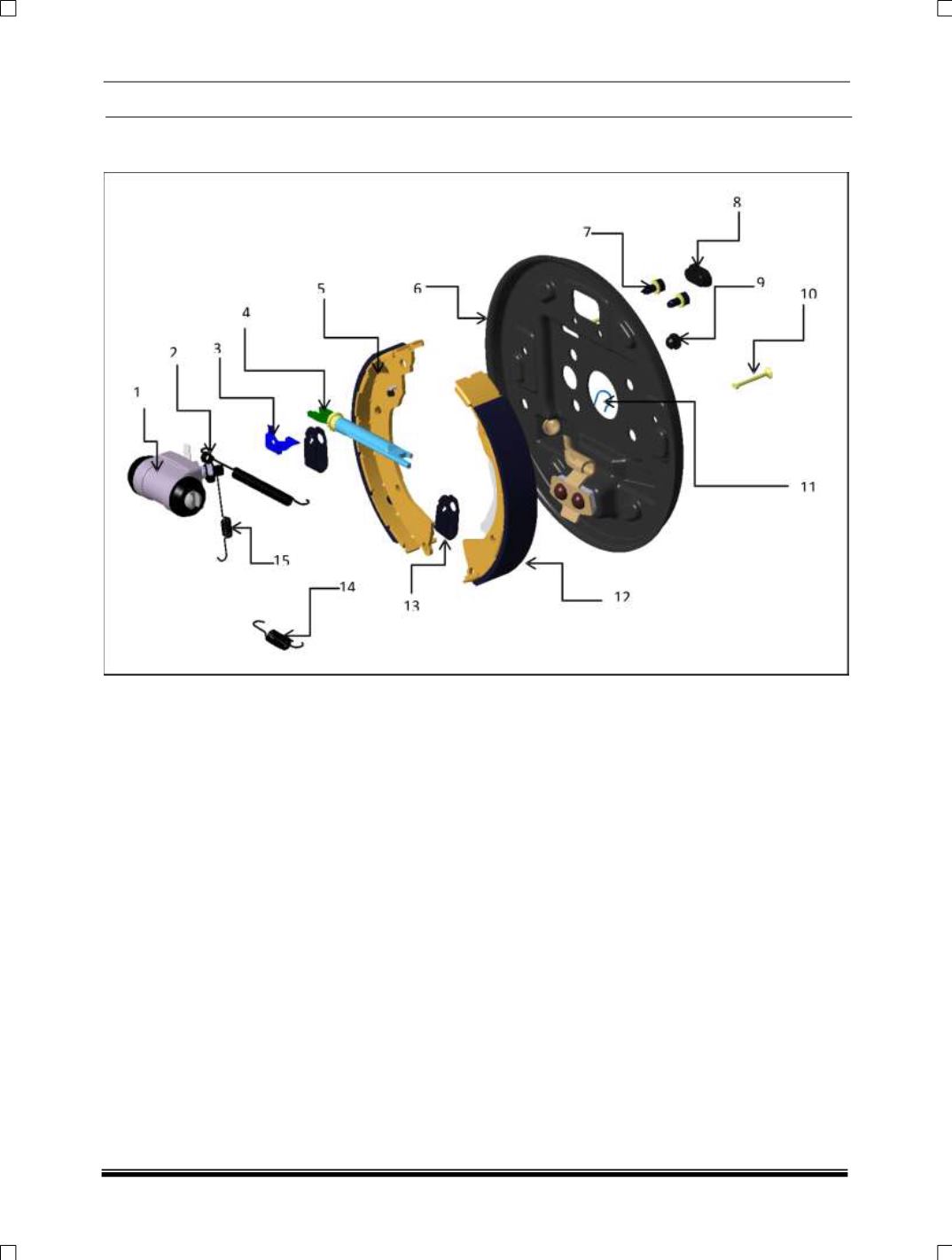

Exploded View of rear Brake Assembly
1.
WHEEL CYLINDER ASSEMBLY
2.
SHOE RETURN SPRING
3.
LIVER PAWL
4.
ADJUSTER ASSEMBLY
5.
LEADING SHOE ASSEMBLY
6.
BACK PLATE ASSEMBLY
7.
SET BOLT
8.
INSPECTION PLUG
9.
PLUG
10.
SHOE HOLD DOWN PIN
11.
RETAINING RING
12.
UNIT SHOE ASSEMBLY
13.
SHOE HOLD DOWN SPRING
14.
SHOE RETURN SPRING
15.
ADJUSTER SPRING
