ENGINE 1.3L QUADRAJET (90PS)
97
E. EXHAUST PIPE REMOVAL
NOTE
Q
Conduct the following procedure in Engine COLD
condition, as the exhaust pipe will be HOT and
may cause severe burns if handled in this
condition.

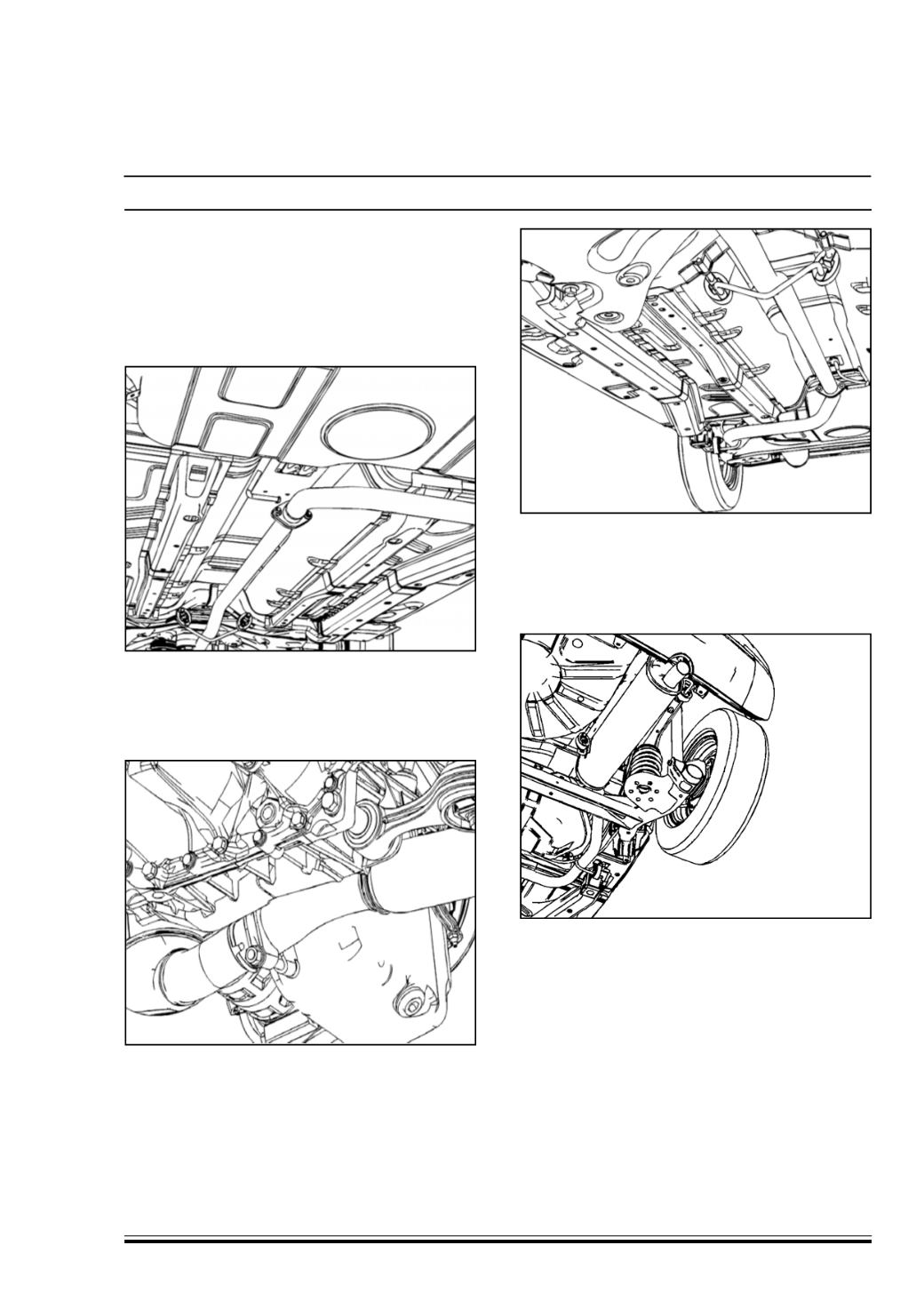

FRONT PIPE REMOVAL :
1. Loosen and remove the bolts (1) on the flange
connecting front exhaust pipe to rear pipe and
disconnect the pipes from each other.
2. Loosen the bolt (1) on the clamp holding the front
exhaust pipe to exhaust outlet from engine and
pull out the front pipe.
3. Disconnect the rubber hangers (1), while holding
the front pipe to remove it completely from vehicle.
INSTALLATION
1. For installation follow the reverse procedure of the
removal.
REAR PIPE REMOVAL
1. Loosen and remove the bolts on the flange
connecting front exhaust pipe to rear pipe and
disconnect the pipes from each other, for fig, refer
step 1 of FRONT PIPE REMOVAL.
2. Disconnect the rubber hangers (1) and remove
the rear pipe from the vehicle.
INSTALLATION
1. For Installation follow the reverse procedure of
Removal.
