ENGINE 1.3L QUADRAJET (90PS)
33

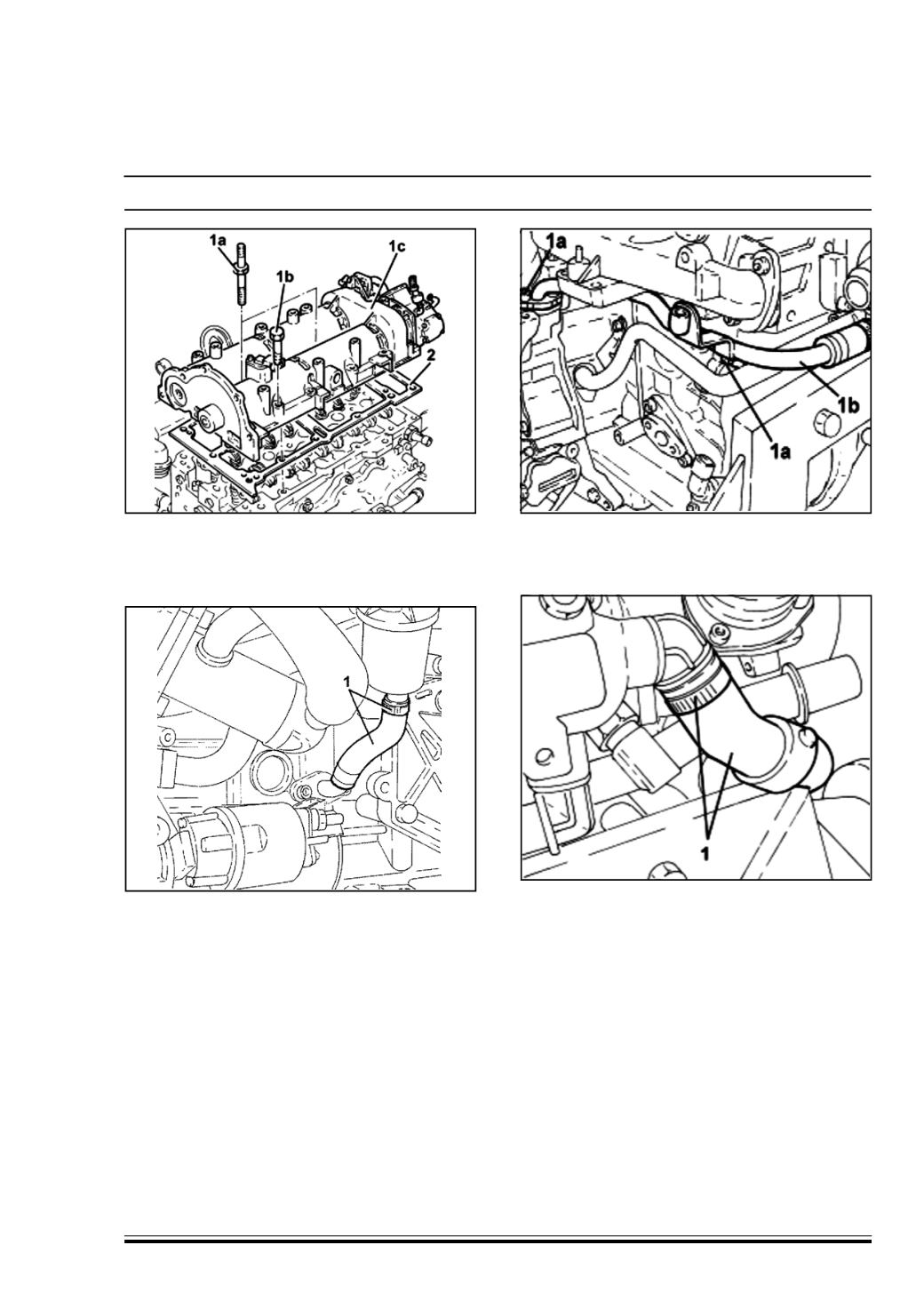

51. Remove the bolts (1a) and (1b) and remove the
camshaft housing assembly (1c).
52. Remove the seal (2).
53. Unscrew the bolt (1) securing the water /exhaust
gas heat exchanger for the EGR to the crankcase.
54. Loosen the collar and disconnect the condensed
engine oil recovery pipe (1), oil vapour separator
side.
55. Loosen the band, Remove the bolts (1a) and
remove the coolant supply pipe to the engine oil
heat exchanger (1b).
56. Loosen the band and disconnect the E.G.R. pipe
(1) from the thermostat.
