ENGINE 1.3L QUADRAJET (90PS)
30

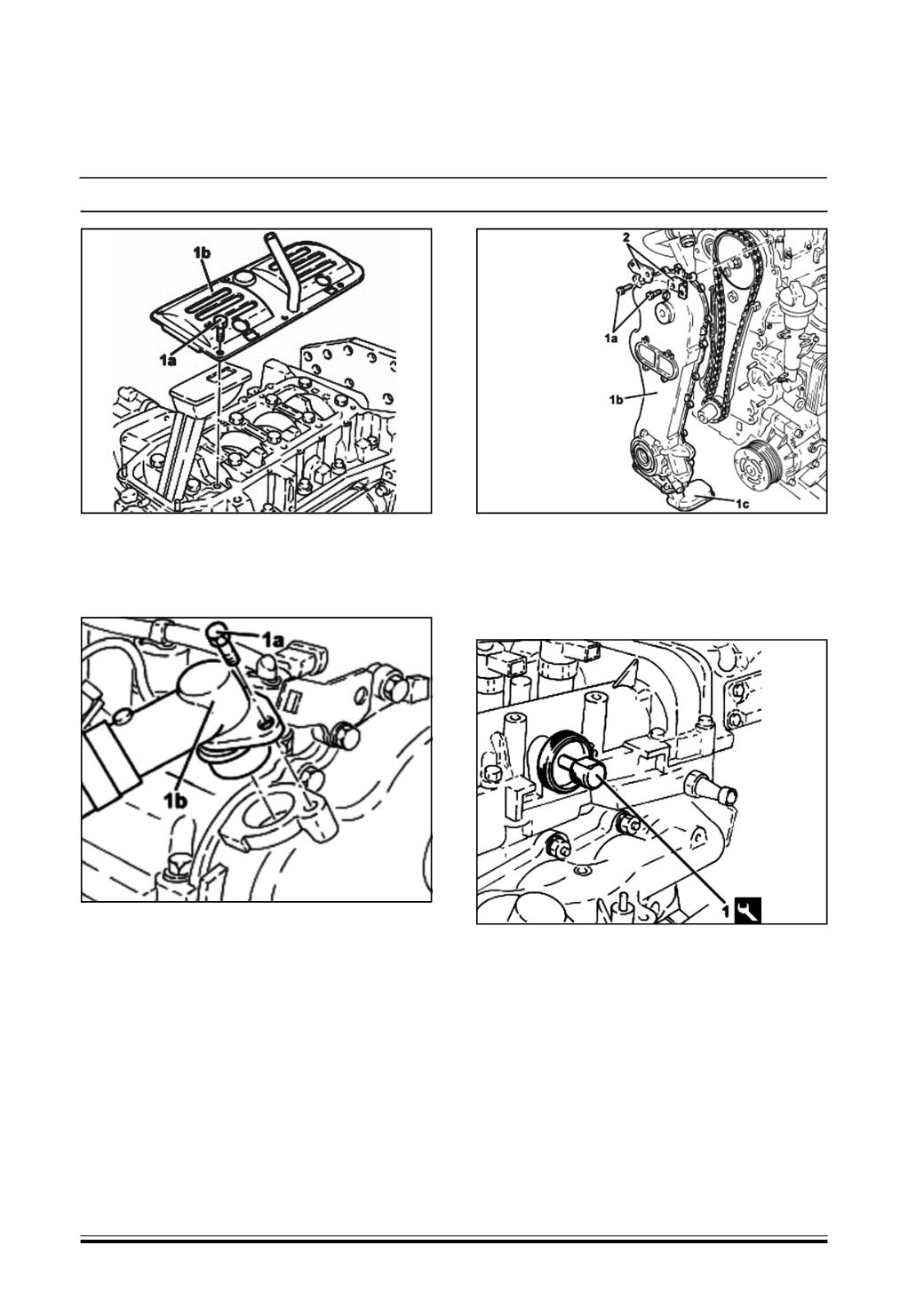

33. Keep the tool (1)part no 287158900655 (Template)
fitted on the exhaust side camshaft.
30. Remove the bolt (1a) and disconnect the
connector (1b) for the engine oil vapour recovery
pipe from the timing cover.
28. Remove the bolts (1a) and remove the crankcase
oil sump partition (1b).
29. Rotate the crankcase through 180° on the over-
haul stand.
31. Remove the bolts (1a) and remove the timing cover
(1b) complete with engine oil suction device (1c)
and engine oil pump.
32. Remove the timing cover gasket, but keep the
brackets (2).
