ENGINE 1.3L QUADRAJET (90PS)
28

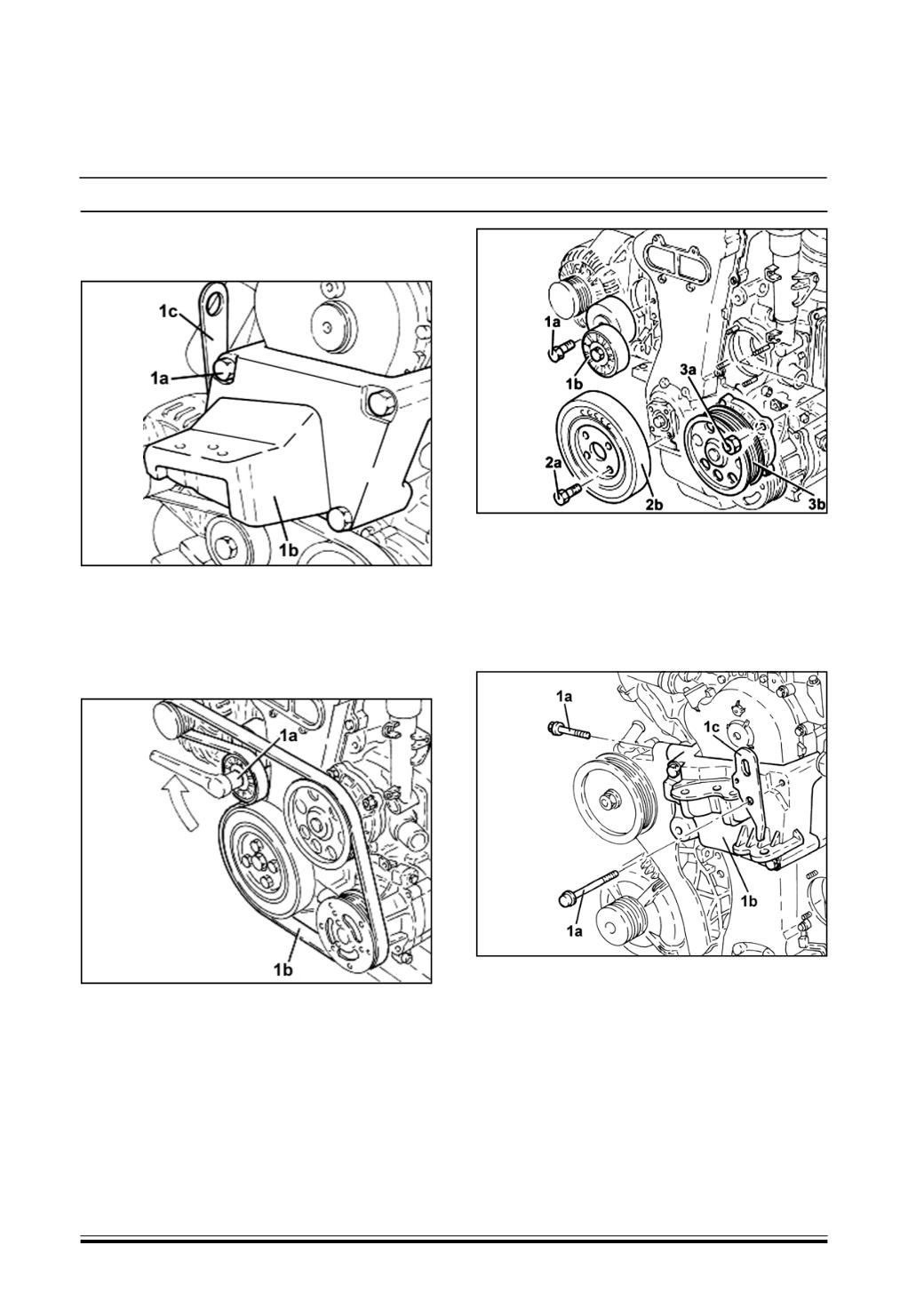

19. Remove the bolts (1a) and remove the timing side
rigid engine support (1b) complete with engine
lifting bracket (1c).
12.Remove the nuts (1a) and remove the turbocharger
(1b) complete with catalytic converter (1c).
13. Remove the bolts (1a) & remove the timing side
rigid engine support (1b) complete with engine
lifting bracket (1c).
14. Undo the nuts (3a) and remove the coolant pump
(3b) complete with gasket.
15. Use a spanner in a clockwise direction on the
moving tensioner (1a) and remove the engine
components single drive belt (1b).
16. Remove the bolt (1a) and remove the engine
components single belt moving tensioner (1).
17. Completely Remove the fixing bolts (2a) loosened
previously and remove the crankshaft pulley (2b).
18. Remove the nuts and remove the coolant pump
(3b) complete with gasket.
