ENGINE 1.3L QUADRAJET (90PS)
20

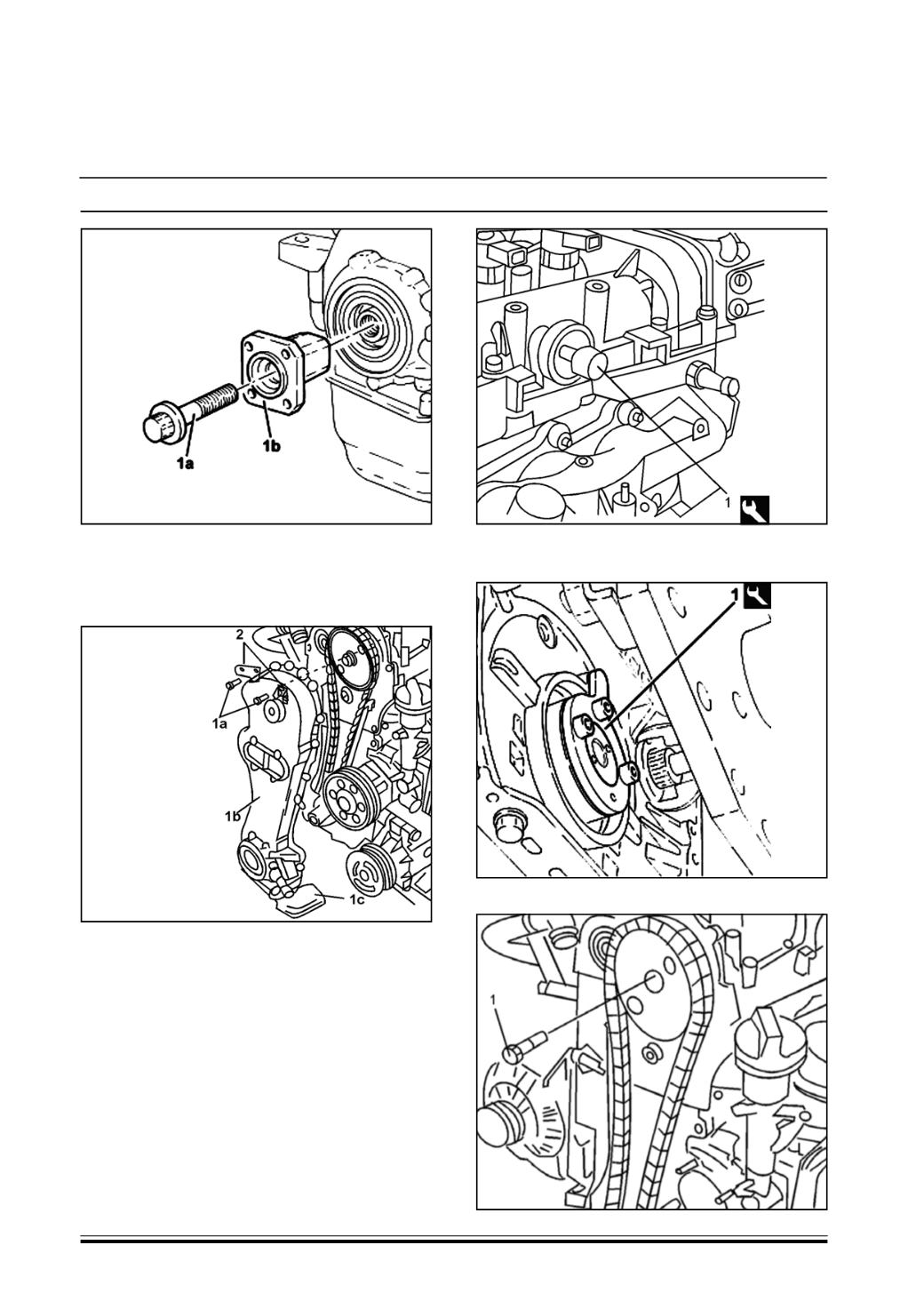

20. Remove the bolts (1a) and remove the timing
cover (1b) complete with engine oil suction de-
vice (1c) and engine oil pump.
21. Remove the timing cover gasket.
22. Keep the tool (1) part no 287158900655 (Tem-
plate) fitted on the exhaust side camshaft.
23. Fit the crankshaft timing adjustment tool (1) part
no. 287158900650 (Template).
24. Remove the timing driven pulley fixing bolt (1).
