ENGINE 1.3 QUADRAJET (75PS)
84
3A.1.6 INTAKE SYSTEM

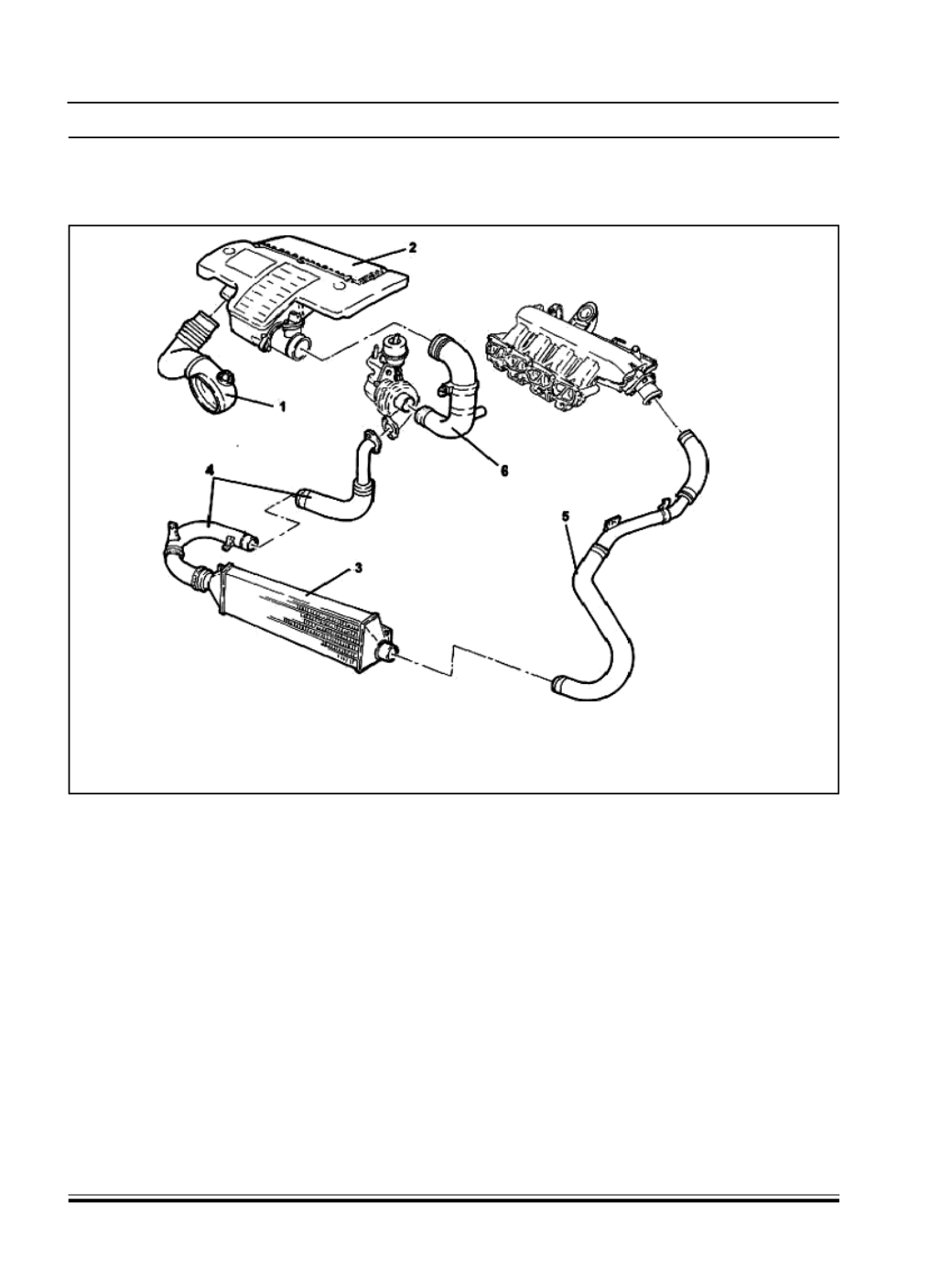

AIR SUPPLY CIRCUIT
1. Cold air intake
4. Turbocharger outlet air pressure pipe
2. Air filter assembly
5. Intake chamber supply air pressure pipes
3. Air-air heat exchanger (intercooler)
6. Intake air hoses from turbocharger
WORKING
The air from the intake hose (1) is directed through
theAir filter assembly (2) into theTurbocharger intake
the compressed air is made to p ass through the
intercooler (3) to reduce the temperature caused due
to the compression in turbocharger . The cooled
compressed air is then directed to the intake manifold.
