ZEST AND BOLT - page 295

ENGINE 1.3 QUADRAJET (75PS)

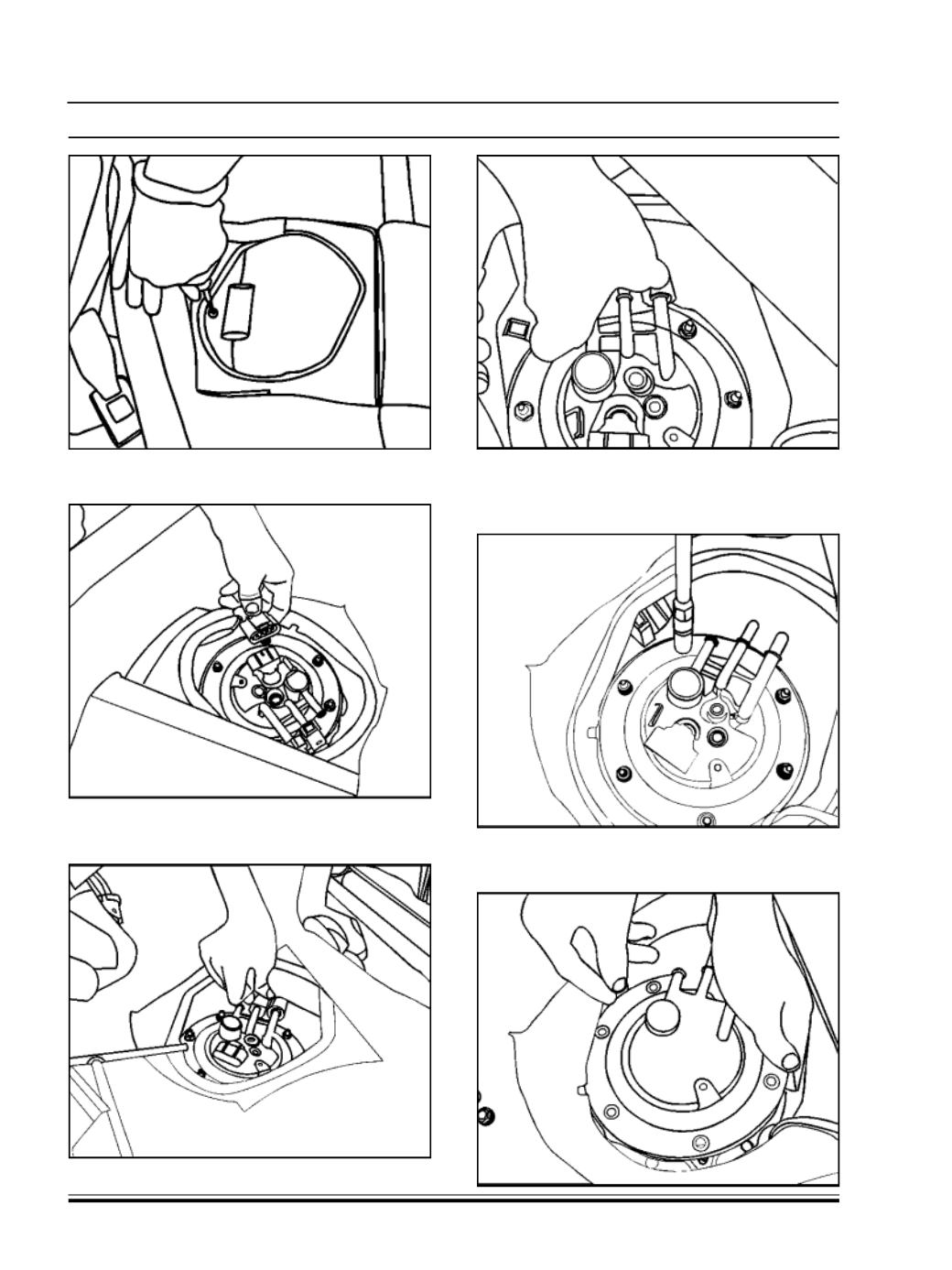

7. Tank Unit Supporting Bracket Removed: Photo

“Supporting Bkt. Removed.

3. Unscrew fuel tank unit cover screw and remove

cover.

4. Disconnect Tank Unit Electrical Connector From

Tank Unit.

5. Disconnect tank unit inlet and outlet Quick

Connect Couplers:

6. Remove tank unit supporting bracket fasteners.
